RE: SPI 통신 설정 방법
by jaden WIZnet ·

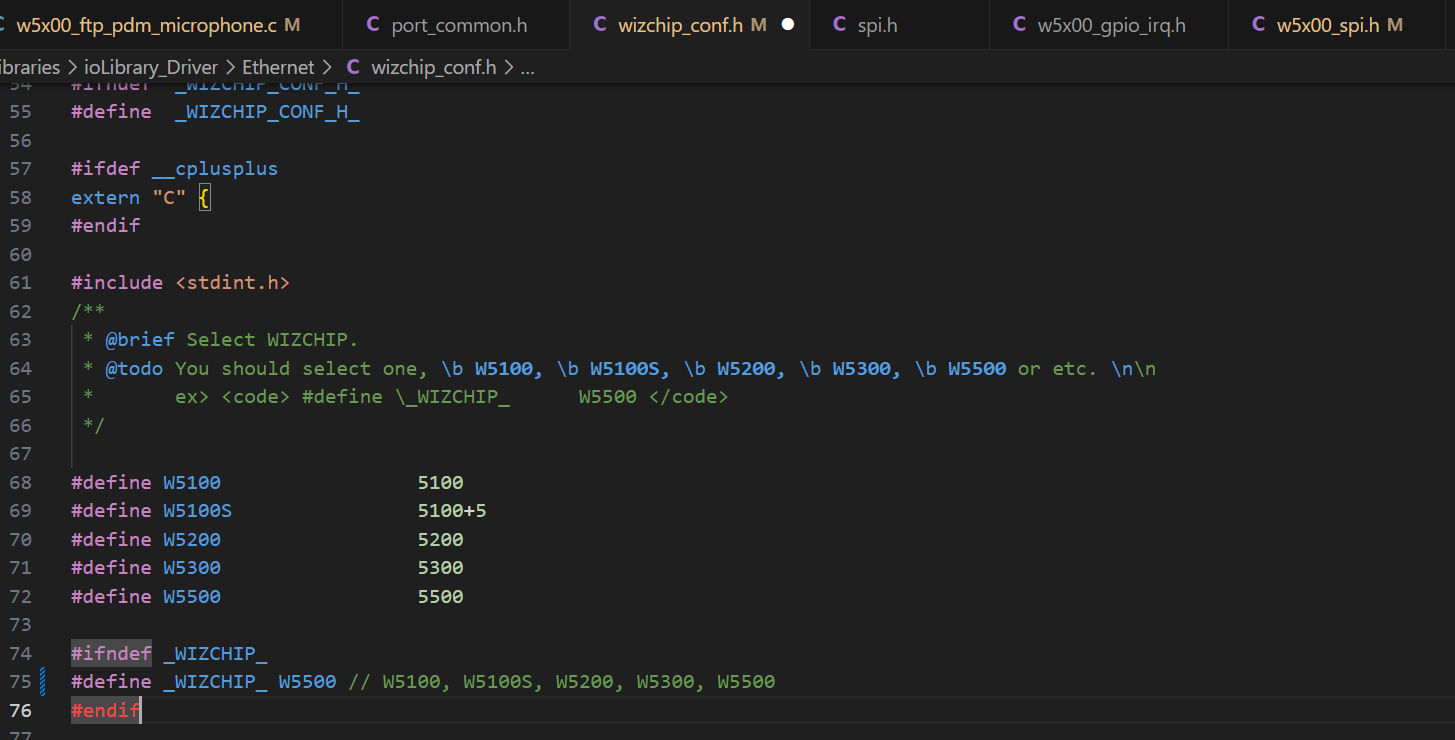

iolibrary_Driver/Ethernet/wizchip_conf.h 에서
_WIZCHIP_이 W5500으로 정의되어있는지 확인 부탁드립니다.#define _WIZCHIP_ W5500 // W5100, W5100S, W5200, W5300, W5500RE: RE: SPI 통신 설정 방법
by sku4806 ·
설정되어있습니다. 혹시 이것 외에 따로 설정해 주어야 할 것이 있을까요?
RE: SPI 통신 설정 방법
by jaden WIZnet ·
VSCODE 환경이시라면, 앞서 말씀드린 iolibrary_Driver/Ethernet/wizchip_conf.h 수정 없이
RP2040-HAT-C/CMakeList.txt 에서 WIZNET_CHIP을 W5500으로 수정하시면 됩니다.
RE: SPI 통신 설정 방법
by sku4806 ·
아! 감사합니다. 해보고 안되는 점이나 궁금한 점 있으면 다시 물어보겠습니다!
