RE: W5500 Design Tipps / review
by Eugeny ·
You do not use reset pin? Some components do not have part numbers. Power conductors of the same width as signal? There’s a document with guidelines, must be in the HW design guide archive on the W5100 product web page.
RE: W5500 Design Tipps / review
by Ing-Dom ·
Thanks for your reply.
I thought, as I can shut down the power from my Controllerboard (with a RP2040, btw) I don’t need the reset… what do you think? I have only 3 GPIOs left…
What do you mean with “Power conductors of the same width as signal?”
what part numbers are missing?
RE: RE: W5500 Design Tipps / review
by Eugeny ·
I think that before you operate the chip you need to perform its hardware reset. This is a best practice.
The 3.3V conductors are too thin. Noise, current and EMI. They must be wider. I would place parts differently, C12 crossing is awful.
Crystal and ferrite beads at least are missing part numbers.
RE: W5500 Design Tipps / review
by Ing-Dom ·
All right, I read the design doc !

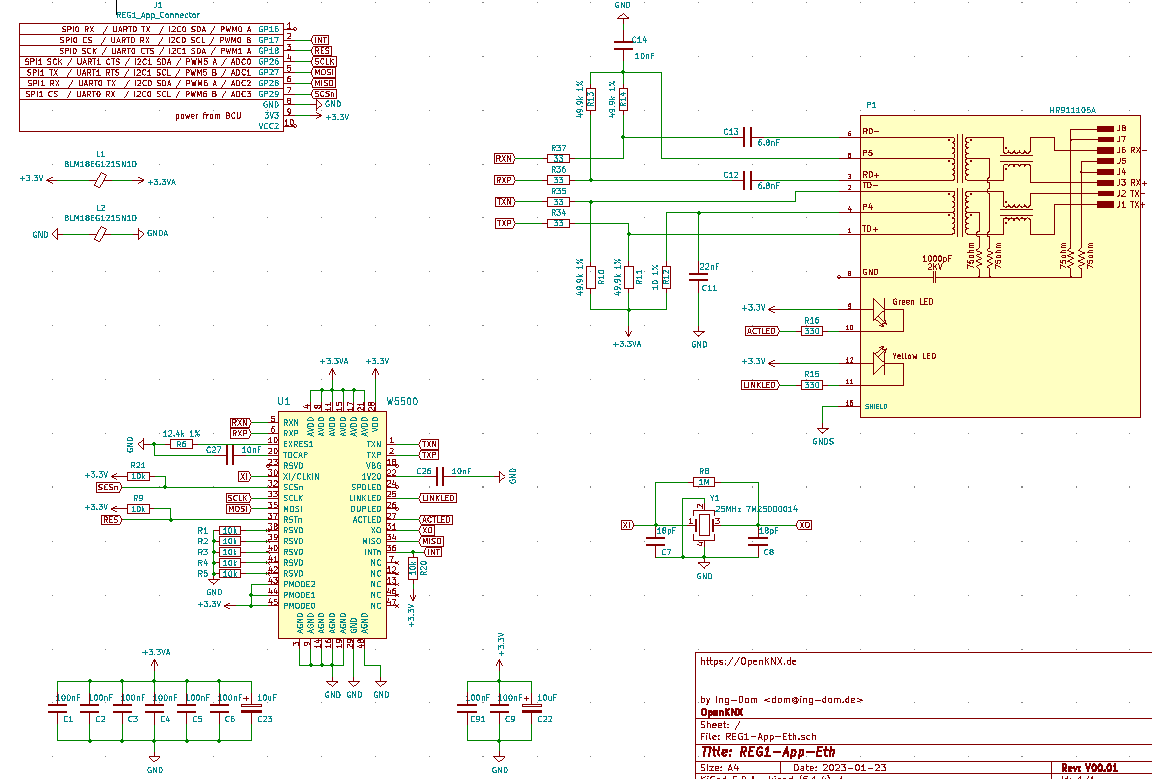

Did some adaptions in the schematic (got rid of analog ground), connected RES and INT, added part numbers for special components.
3.3v traces are to thin you say… I barely routed power traces, just some very short for the decoupling C - I wanted to route power mostly on bottom after I have my hf stuff.
to which traces do you refer exactly?

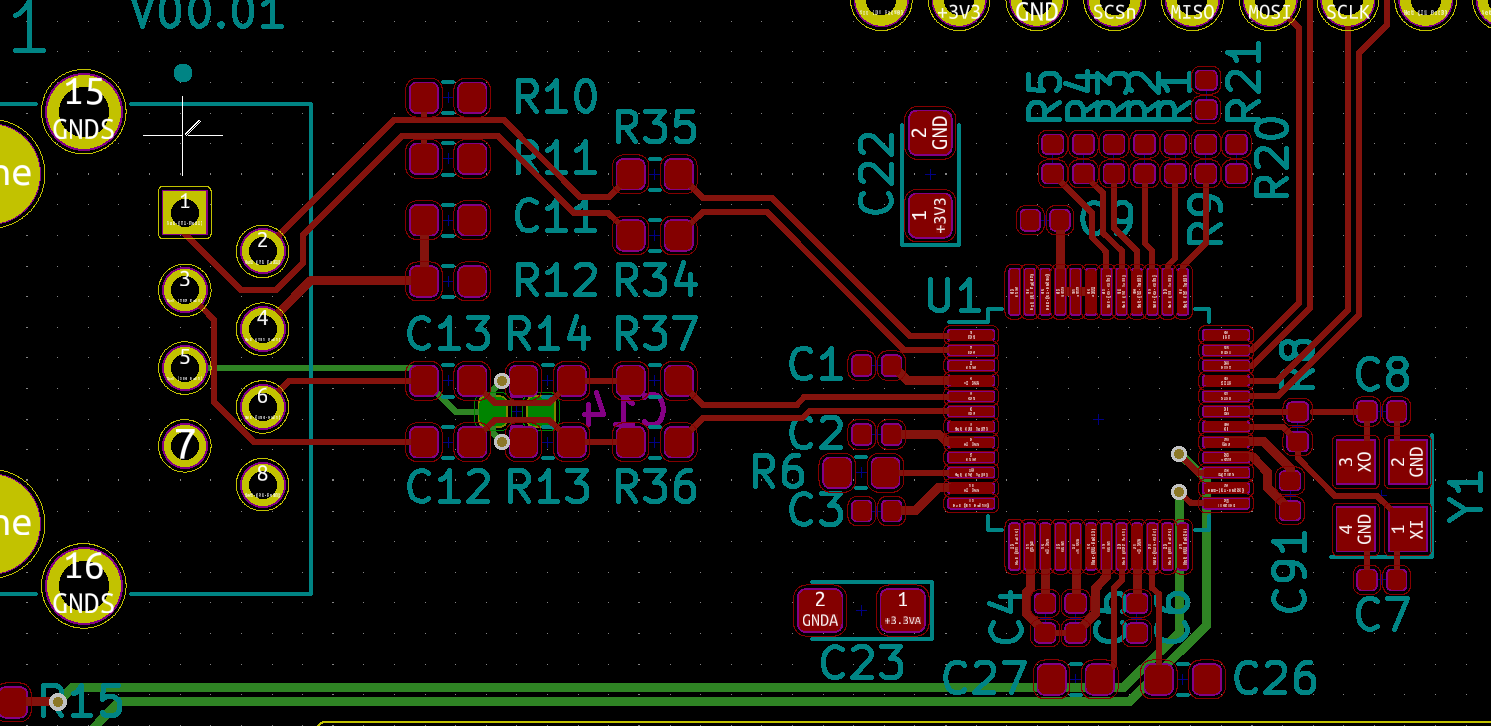

C12 crossing is awfull you said - yes!

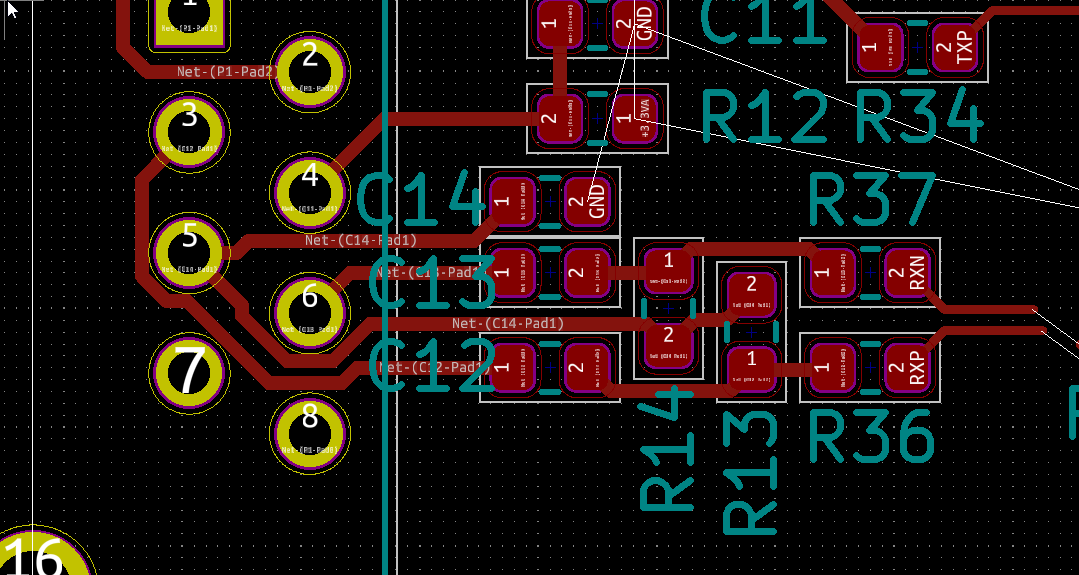

But I’m stuck here, because R13 and R14 both connect to P5 and to RXN and RXP lines.
not made nice, but possible ?!
Can I use vias at any place in this RX circuitry?
RE: RE: W5500 Design Tipps / review
by Eugeny ·
You can route power from another side of the board and connect stuff through vias. I would keep RX/TX lines free of vias if possible. I am sure you can achieve that.
RE: W5500 Design Tipps / review
by Ing-Dom ·

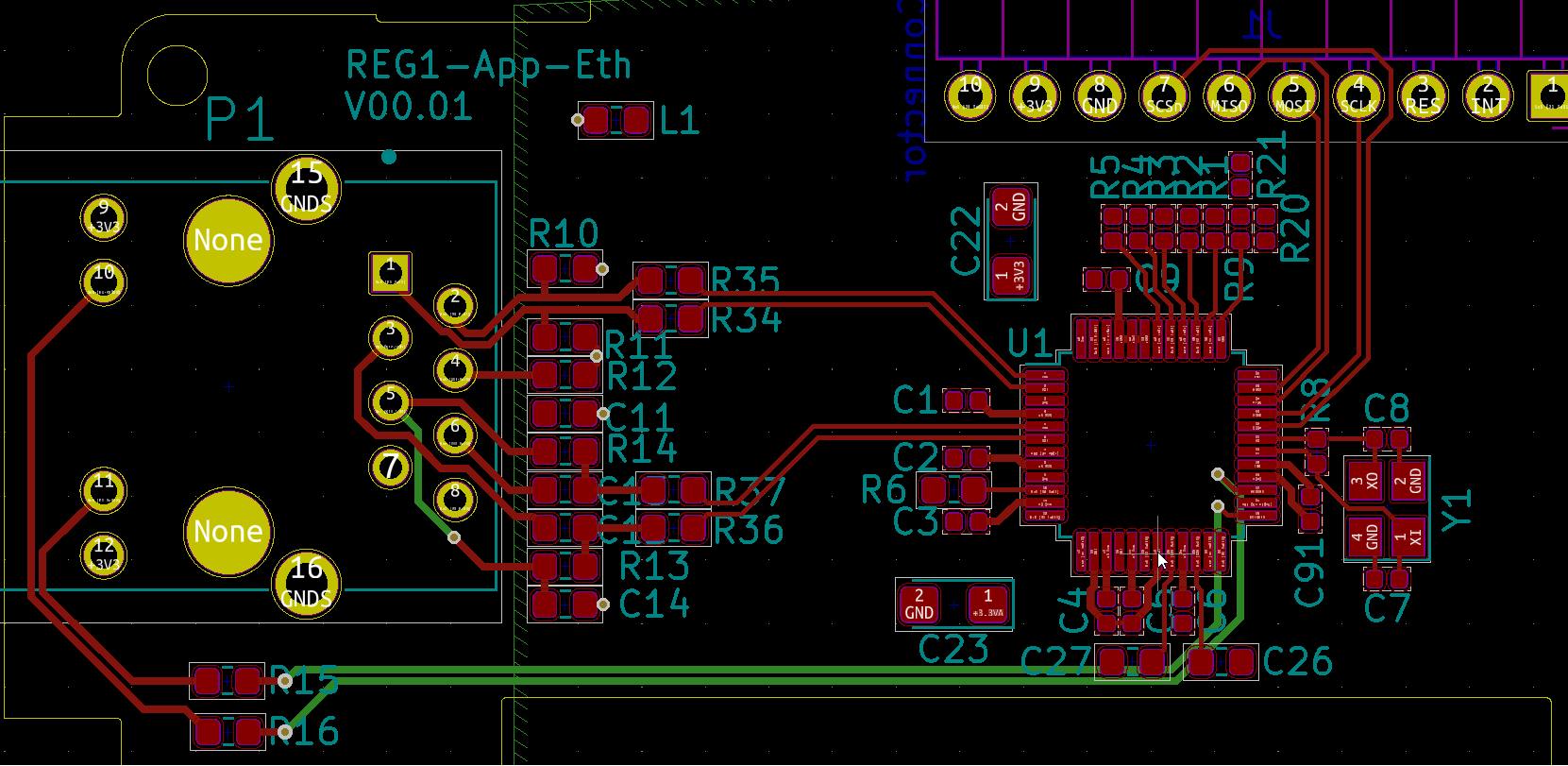

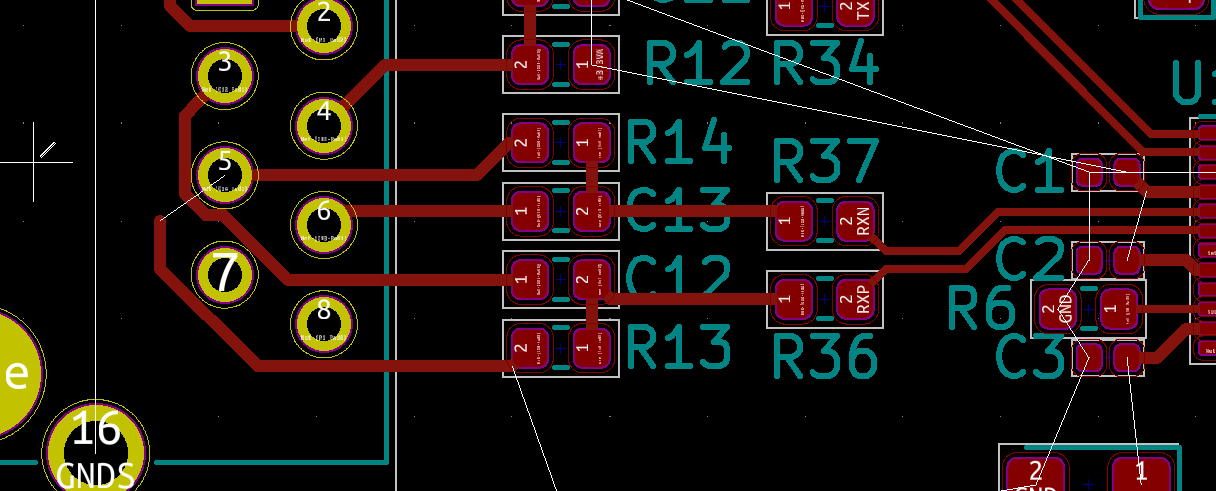

I searched through this Forum for some ideas and adapted one which you said “looks good”
What do you think? Only think which I’m not satisfied with is the R13 connection to the MagJack.
Should I make the “direct” RX/TXpairs 8 mil as stated in the design guide?
RE: RE: W5500 Design Tipps / review
by Eugeny ·
Double-sided would lay out much simpler. Is it a requirement to have single sided component layout?
RE: W5500 Design Tipps / review
by Ing-Dom ·
that was the idea, because the plan is to let JLCPCB assemble that board.
It’s for an OpenSource project (OpenKNX), and we do not have a big budget.
Which components would you place on bottom side? R12/C11 and R13/14 and C14 ?
RE: W5500 Design Tipps / review
by Ing-Dom ·
what do you think about that one? It needs a little tweaking here and there but the general idea?
RE: RE: W5500 Design Tipps / review
by Jimmi Sitepu ·
Did you board work well?
Thanks
