W3150A+ SPI access to TX and RX buffers

Question

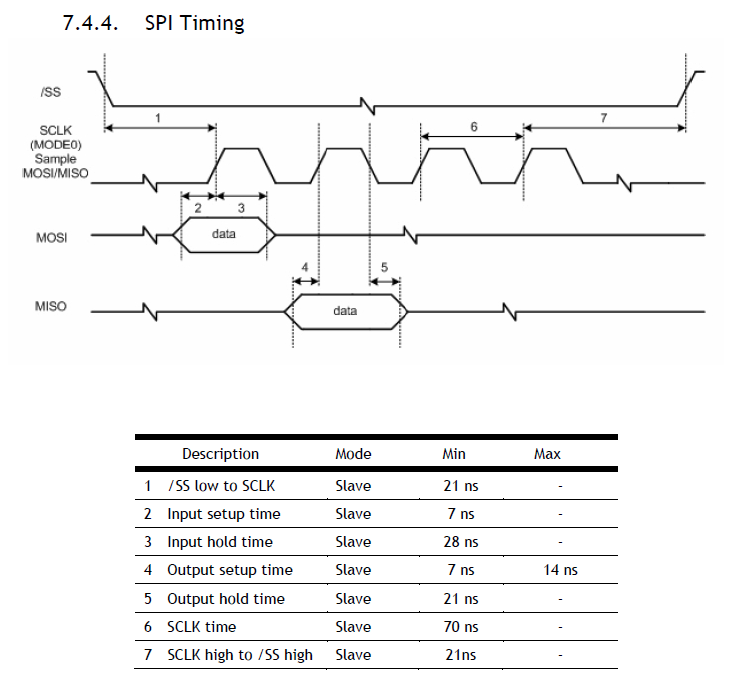

Hello, using SPI to access the TX and RX buffers of W3150A+ can I assume that the address will be automatically increased after the first 32 bit access (OPCODE(8bit)+ADDRESS(16 bit)+DATA(8 bit)) if I don’t set high the /SS pin allowing me to continue the reception of a new byte only providing 8 new SCLK edges or do I need set high /SS and the low again /SS to perform a complete 32 bit access to the subsequent address in order to perform a new write or read access? If I need to perform a complete 32 bit access, according the min SCLK period reported in the datasheet (70 ns) I can reach a max data transfer speed of 8/(32*70e-9) bit/s = 3.4 Mbit/s (am I correct?). Providing the address only the first time, on the other side, I could transfer data about 4 time faster.

becky · Answer

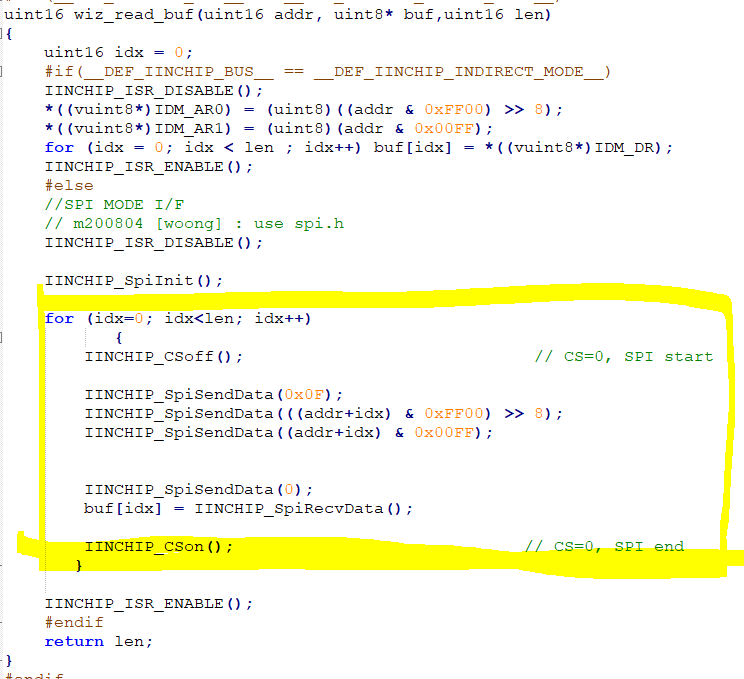

Hello, https://www.wiznet.io/wp-content/uploads/wiznethome/Chip/W3150A_Plus/Software/W3150A__DV_V109.zip Please refer to the 3150A + iolibrary code. image744×679 26.8 KB Whenever you send 8-bit data, you must also transmit the opcode and address, and you need set high /SS and low again /SS. marco: I assume that the address will be automatically increased after the first 32 bit access (OPCODE(8bit)+ADDRESS(16 bit)+DATA(8 bit)) Address does not automatically increase. marco: If I need to perform a complete 32 bit access, according the min SCLK period reported in the datasheet (70 ns) I can reach a max data transfer speed of 8/(32*70e-9) bit/s = 3.4 Mbit/s (am I correct?). No, 70ns is write cycle time in bus mode. In addition, network performance should consider not only spi but also mii interface speed. The W3150a + 's network performance is Max. 25Mbps.
