How does RTR affect page loading time?

Question

I connect w5300 with stm32 on FSMC. When I set RTR = 1000 the page is loaded 122 mc, but CSS and JS do not have time to boot. When I set RTR = 100, the page loads in 30 ms and I have time to load the CSS and JS, but after 2-5 update of the page the server crashes. From the register getSn_SR, the wrong values 0x10 or 0x22(udp) are read, although the socket is opened in TCP mode. What could it be? PS: RCR=2

becky · Answer

Your explanation is too short. Add a description of what target you are communicating with, who the server is and what action you want to perform. RTR is the Retransmission Time value. If a response is not received after transmitting the packet, retransmission interval is set. I do not know what you mean page loading.

becky · Answer

Hello, I think it will be faster to see the packet. Capture the packet with wireshark and attach it here or email becky@wiznet.io

becky · Answer

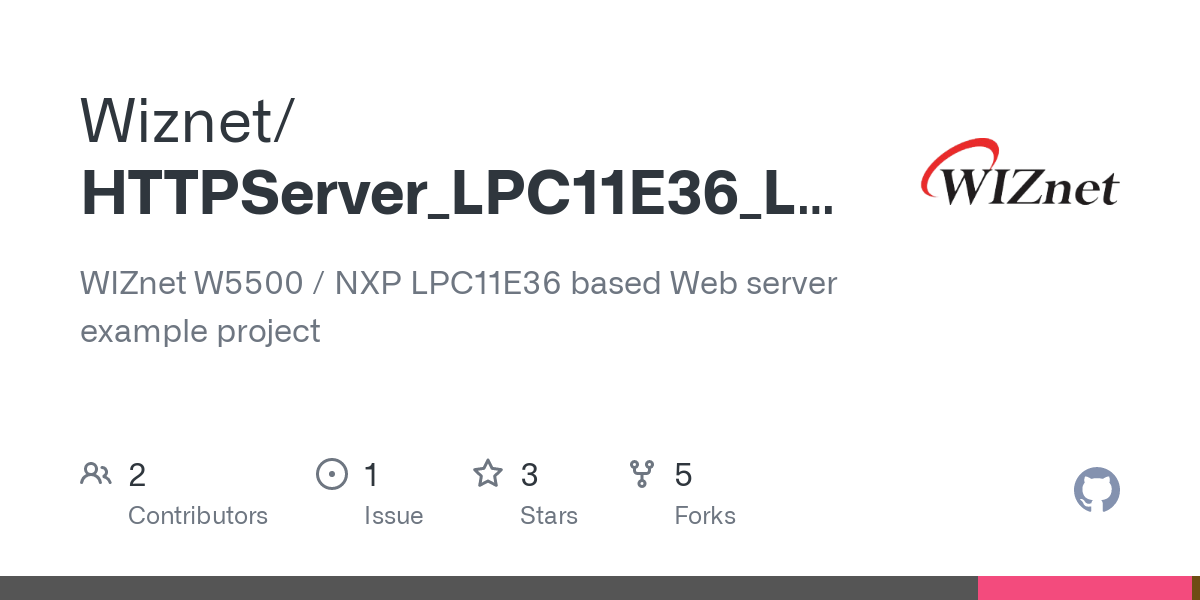

I checked you mail. First, I think the HTTP code you wrote is incommon. Compare the HTTP code we’ve written If you send me the firmware, I’ll check it out. github.com ioLibrary_Driver/Internet/httpServer at master · Wiznet/ioLibrary_Driver master/Internet/httpServer ioLibrary_Driver can be used for the application design of WIZnet TCP/IP chips as W5500, W5300, W5200, W5100 W5100S. GitHub GitHub - Wiznet/HTTPServer_LPC11E36_LPCXpresso: WIZnet W5500 / NXP LPC11E36... WIZnet W5500 / NXP LPC11E36 based Web server example project - GitHub - Wiznet/HTTPServer_LPC11E36_LPCXpresso: WIZnet W5500 / NXP LPC11E36 based Web server example project
