RE: RJ45 connectors - compatible footprint - preferred parts - second source
by lawrence WIZnet ·
Hello, jnewcomb
Thank you for your information.
It is so useful!
If there are more, I will add
RE: RE: RJ45 connectors - compatible footprint - preferred parts - second source
by scott WIZnet ·
Hi jnewcomb.
I am H/W engineer in WIZnet.
Thank you for your good information.
I will review this.
You will help a lot of people.
Scott.
RE: RJ45 connectors - compatible footprint - preferred parts - second source
by jnewcomb ·
I can’t work out how to edit my first post, so I’ll append info here…

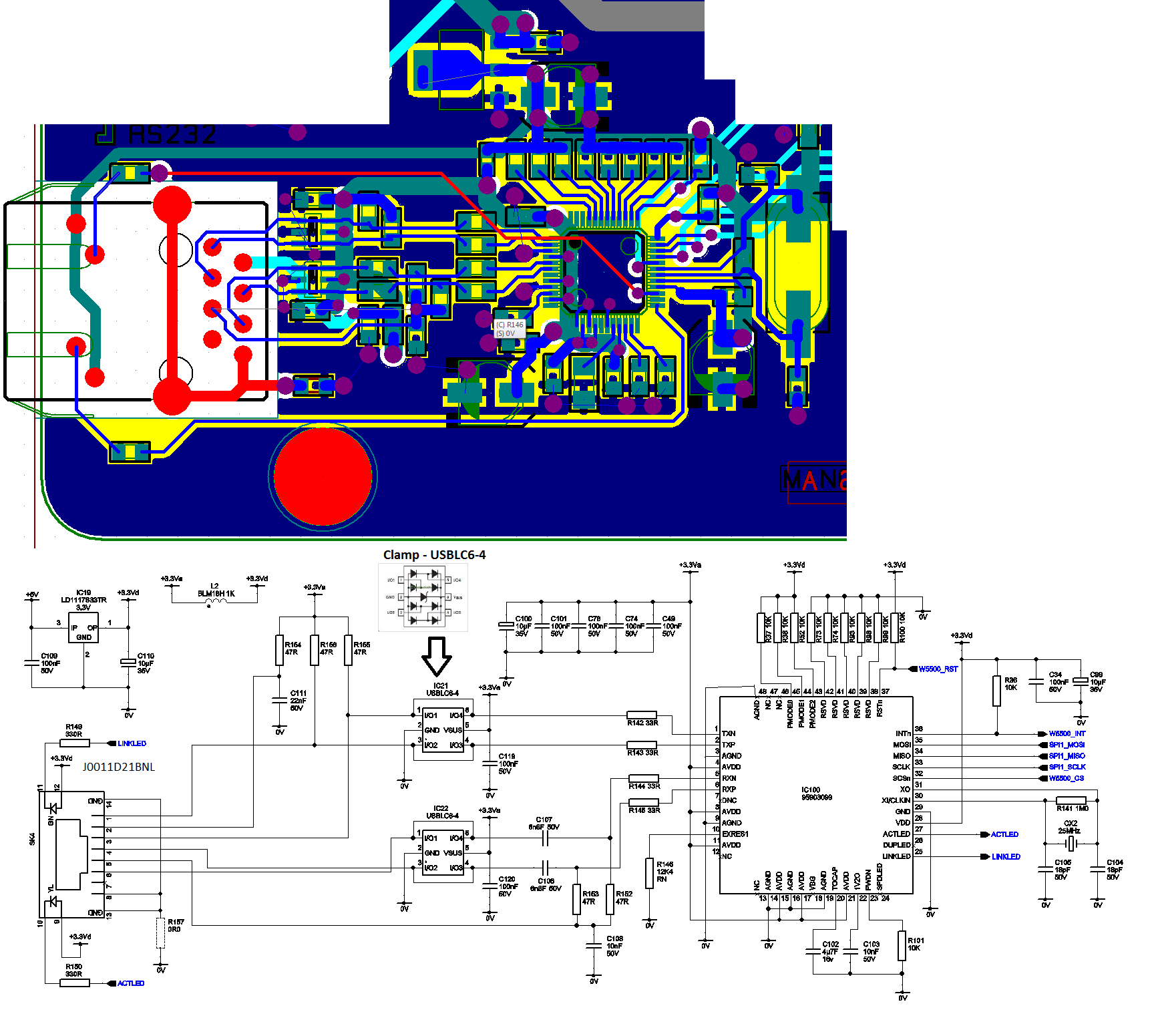

So, I have a working design… see link below.
J0011D21BNL → Double check the footprint of the device… I think its different…
Price…
I have chosen the J0011D21BNL from PULSE - because we already use it on another product.
Its a good brand and can be purchased from reliable sources for around 1.10 USD. (Check the footprint of the connector)
So, if you have a low cost easy to find device, please share here…
Thanks…
RE: RJ45 connectors - compatible footprint - preferred parts - second source
by mcpat ·
I know the topic is old, but would this RJ45 jack fit, I am planning to make a POE application:

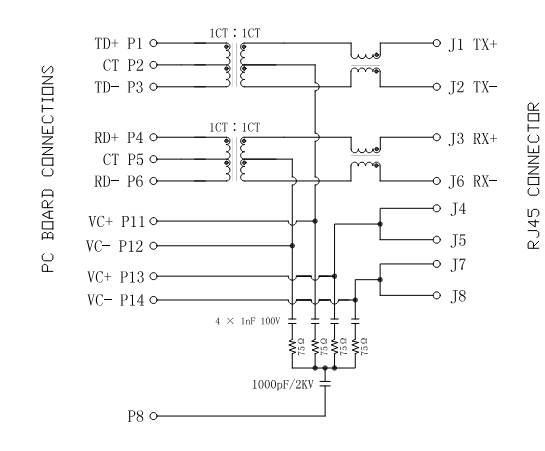

Link-PP LPJ4320GENL
You can see the circuit in the datasheet

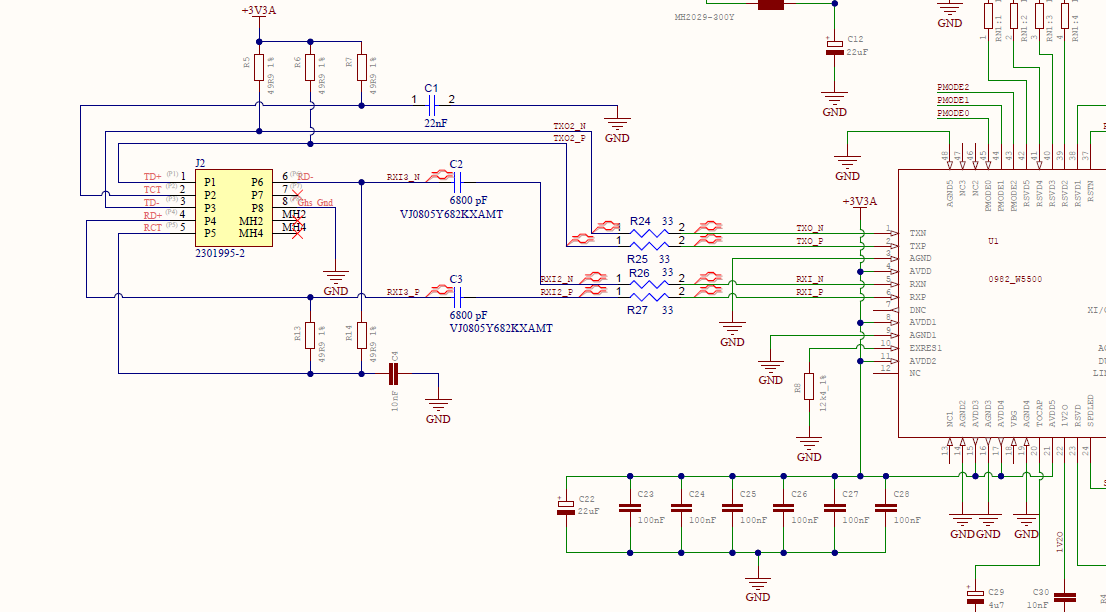

I compared with the reference design here and I think it’s correct.
Thank you in advance!
Patrick
RE: RJ45 connectors - compatible footprint - preferred parts - second source
by jnewcomb ·
Hi mcpat,
The LPJ4320GENL Looks good.
Note: The connector I used does not have the 4 x 1nF parts integrated into the connector (as shown in your screenshot)
PULSEJACK part - Clarification…
J0011D21BNL can’t be used with the reference schematic (and my supplied schematic) as Pins 2-4 are shuffled. If you use it, you must change your schematic accordingly.
RE: RE: RJ45 connectors - compatible footprint - preferred parts - second source
by mcpat ·
@jnewcomb Thank you very much! So I give it a try. It will take some time because it’s my hobby, but after testing I will come back and will give a feedback.
