RE: WIZ105SR HW_Trigger
by jim ·
Dear samvjt

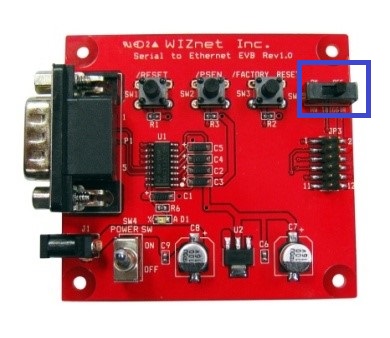

/HW_TRIGGER pin is for Input. If you have a “Test Board for WIZ105SR”, you can enter the serial command mode by /HW_TRIGGER switch control.
Refer to User Manual.
[url]http://old.wiznet.co.kr/sub_modules/en/library/Download_View.asp?PK_Num=809&page=1&SF_Part=&SF_KeyWord=[/url]
What does the function of reset mean?
You can use /RESET HW pin.(Input)
If you mean SW reset, you can use Serial command.
But I have found a problem in command. I will investigate that.
Thanks.
RE: WIZ105SR HW_Trigger
by jim ·
Serial command issue was a side effect.
I fixed the problem.
Refer to attached file.
FW version will be update.
Thanks.
wiz105sr_0513_test_20160128.zip (19.6 KB)
RE: WIZ105SR HW_Trigger
by samvjt ·
Hello Jim,
Thank you for helping me. However, i dont have the WIZ105SR-EVB for test. I only test with WIZ105SR. I try to connect both RS-232 and this module same time by connecting Tx and Rx. Unfortunately, it only allow me connect one at a time. so I am trying to figure out the HW_trigger should be a enable or disable button for the module to break the connection.
RE: WIZ105SR HW_Trigger
by samvjt ·
The hardware trigger i am talking about is in WIZ105SR(pin 8)
