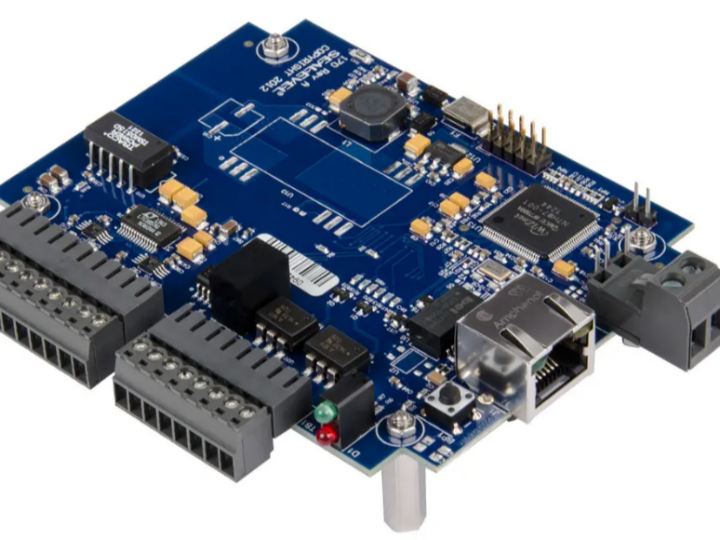

Ethernet to 8 A/D, 2 Optically Isolated Dry Contact Inputs, 2 Solid-State Relay Outputs
ontrol and monitor eight 12-bit analog inputs, two optically isolated digital inputs and two solid-state relay outputs via any 10/100BaseT E
4
Project description
The module provides eight single-ended or four differential A/D inputs that are software configurable for 0-5V, 0-10V, +/-5V, and +/-10V ranges. The A/D inputs support floating/non-referenced or ground referenced selections. This makes the A/D inputs ideal for measuring floating signal sources such as outputs of transformers, thermistors, and battery-powered devices. Additionally, the A/D inputs can operate in bipolar or unipolar modes.
The digital inputs are dry contact, switch-sensing inputs that are internally biased with 5VDC. When the contact closes, current flows through the circuit and an input condition is detected. The inputs are optically isolated and provide 1000VDC isolation to ground. The solid-state Form A SPST relays can switch up to 60VDC at 2.5A. Solid-state relays improve upon mechanical relays by having no moving parts, operating silently and having virtually unlimited switching cycles.
Additional information
| A/D Inputs | 8 Single-Ended or 4 Differential |
|---|---|
| Field Wiring | 16 – 30 AWG |
| A/D Resolution | 12-bits |
| Analog I/O | A/D Inputs |
| Family | eI/O |
| Contact Current | 2.5A max. |
| Contact Operate Time | 2.5ms max. |
| Contact Release Time | 0.2ms max. |
| Contact Voltage | 60VDC max. |
| Digital I/O | Isolated Inputs, Solid-State Relays |
| Dimensions | 4.2 (L) x 3.2 (W) x 0.7 (H) |
| A/D Range | 0-5V, 0-10V, +/-5V, +/-10V |
| Input Isolation | 1000VDC |
| Humidity Range | 10 – 90% Relative Humidity, Non-Condensing |
| Input Range | Dry Contact |
| Host Interface(s) | Ethernet |
| Number of Inputs/Outputs | 8 A/D Inputs, 2 Dry Contact Inputs, 2 Solid-State Relay Outputs |
| OEM | Yes |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Output Type | SPST Form A Solid-State Relays |
| # of Ports | 8/2/2 |
| Power Requirement | 9-30 VDC @ 1.5W |
| RoHS Compliant | Yes |
| Storage Temperature | -50°C to 105°C (-58°F to 221°F) |
- 10/100BaseT Ethernet Modbus TCP interface
- 8 12-bit single-ended, or 4 differential analog inputs
- 2 optically isolated inputs provide dry contact switch sensing
- 2 SPST Form A solid-state relays have no moving parts, operate silently and have virtually unlimited switching cycles
- Field wiring is simplified via removable 3.5mm terminal blocks compatible with 16-30 AWG wire
- OEM module with (4) 3/4″ aluminum standoffs simplify mounting in your enclosure or cabinet
- Optional removable spring-clamp terminal blocks available for I/O connections
- Input power via removable spring-clamp terminal block
- Status LEDs display power, Ethernet link and I/O activity
- Sealevel SeaMAX software supports Microsoft Windows operating systems
