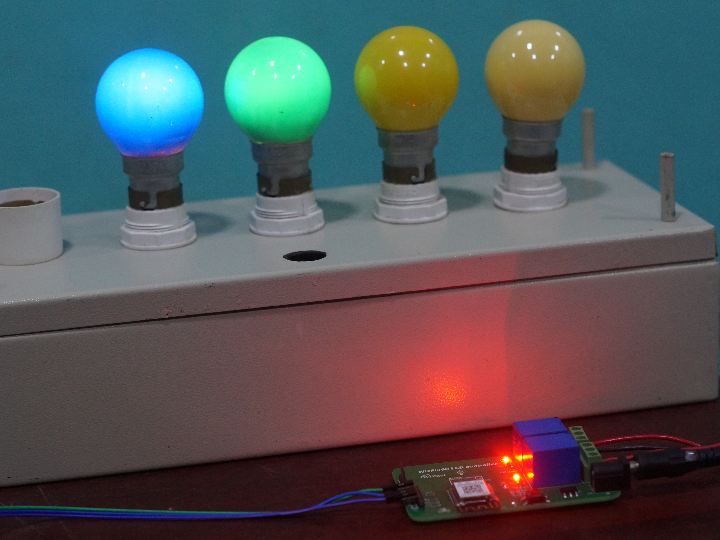

WizFi360 LED Controller Board

Hi,
I would like to make a WizFi360 LED controller PCB that can be controlled using a mobile application or using sensors & edge AI.

COMPONENTS Hardware components

WIZnet - WizFi360

x 1


seeed - Grove - Relay

x 2


sparkfun - SparkFun Breadboard Power Supply 5V/3.3V

x 1

Software Apps and online services

Arduino - Arduino IDE

x 1


PROJECT DESCRIPTION

WizFi LED controller PCB

We will be making a LED controller using WizFi. We will be designing the PCB using easyeda. The generated Gerber files are fabricated them. Firmware for WizFi360 is also written.

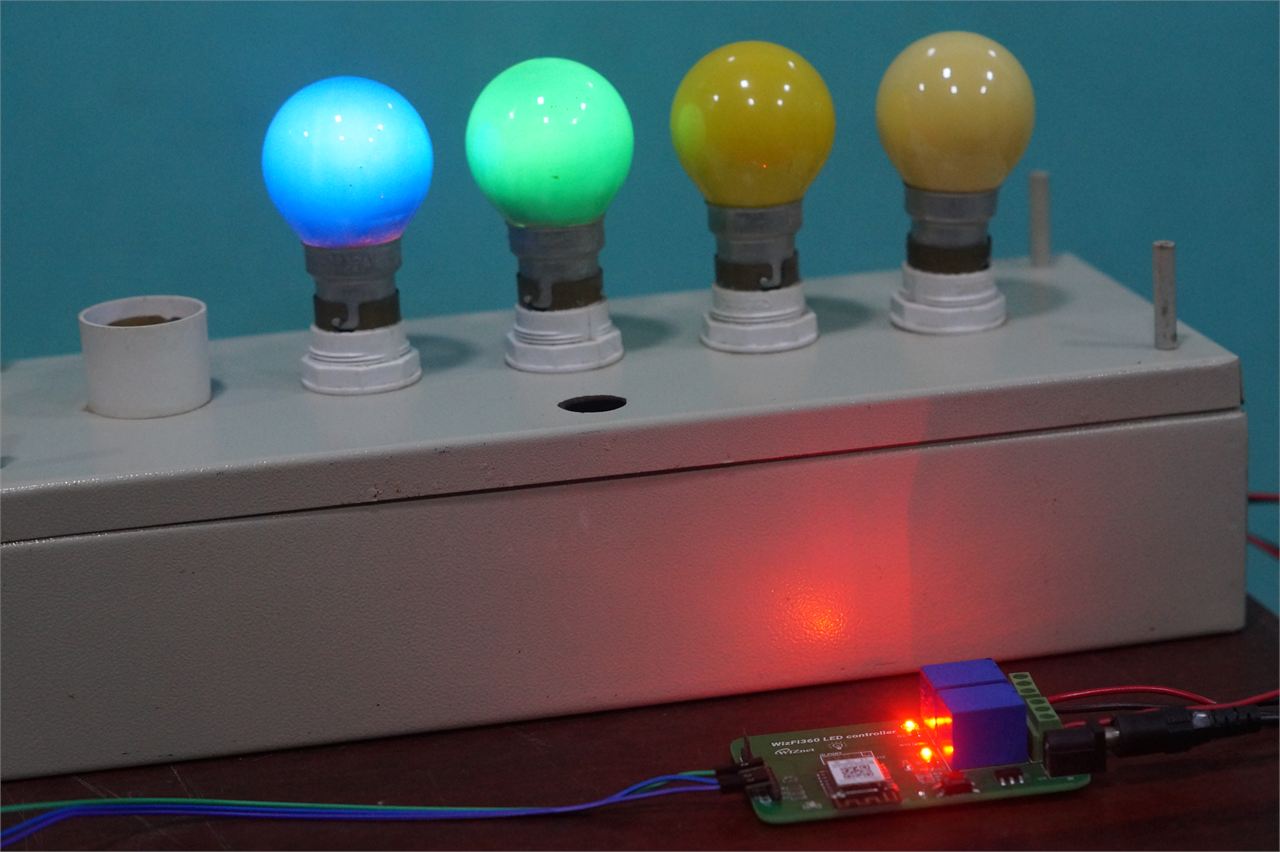

PCB img

Demo video

Hardware

We received a WizFi360-PA module from Wiznet. WizFi360 is a low-cost Wi-Fi solution that not only is Azure Certified and supports AWS SDK examples, but also is the official Wi-Fi Shield for Arm Open-CMSIS-pack and Keil Studio Cloud; lastly, comes in a Raspberry Pi Pico compatible board form-factor

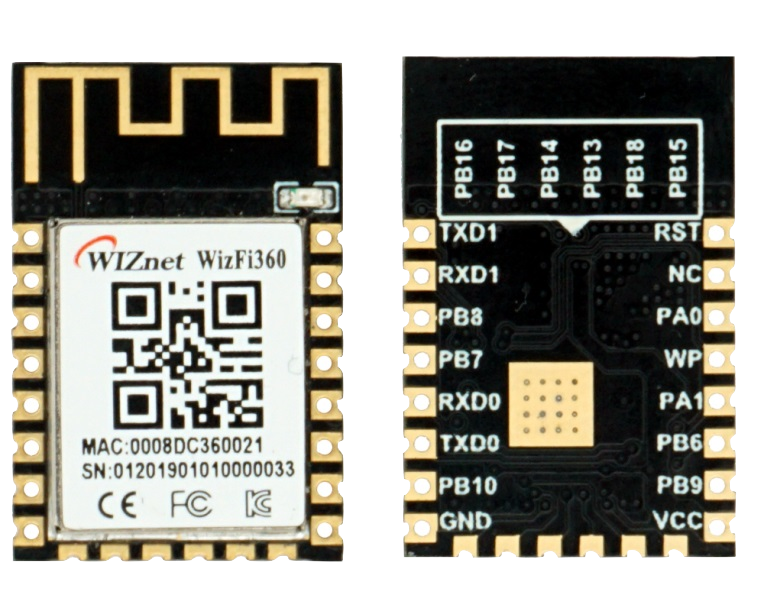

The Pin Definition is given below

Schematic of WizFi360 LED Controller

The WizFi360 is powered by the WizFi360-PA module. The relays are connected to the pins PB6 and PB8.

How does the electronic circuit work?

The electronic circuit is formed by a group of relay circuits that will be turned on/off using a mobile phone or using AT commands. This will be done by controlling the PB6 and PB8 pins.

Each led will be connected to the output port of the relays and will be connected to the circuit on the board through wires.

What logic was implemented?

The WizFi360 module makes use of AT commands to control the relay ports. The AT commands are sent to the module from a PC using a USB-to-Serial converter.



The relay is turned on and off by pulling the relay pin's HIGH or LOW.

  • When PB6 is HIGH, Relay 1 output switches from NC to NO.
  • When PB6 is LOW, Relay 1 output switches from NO to NC.
  • When PB8 is HIGH, Relay 2 output switches from NC to NO.
  • When PB8 is LOW, Relay 2 output switches from NO to NC.
We have a DC connector for powering the electronic project with a +5V adapter. The other 2 connectors will be used to connect the output loads to the relays.

Finally, we finalized the electronic schematic design and developed the layout of the printed circuit board. See the result in the figure below.

PCB

Two mounting holes were inserted in the electronic board to facilitate the fixing of the board to the desired place.

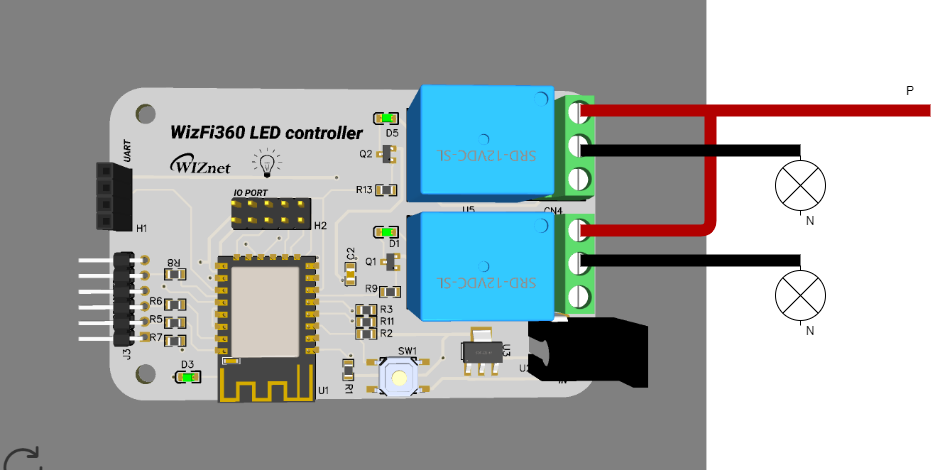

The following is the full 3D view of the board.

The boards were fabricated by an Indian company SAKTHICADD, which helped me fabricate high-quality PCBs within a few working days.

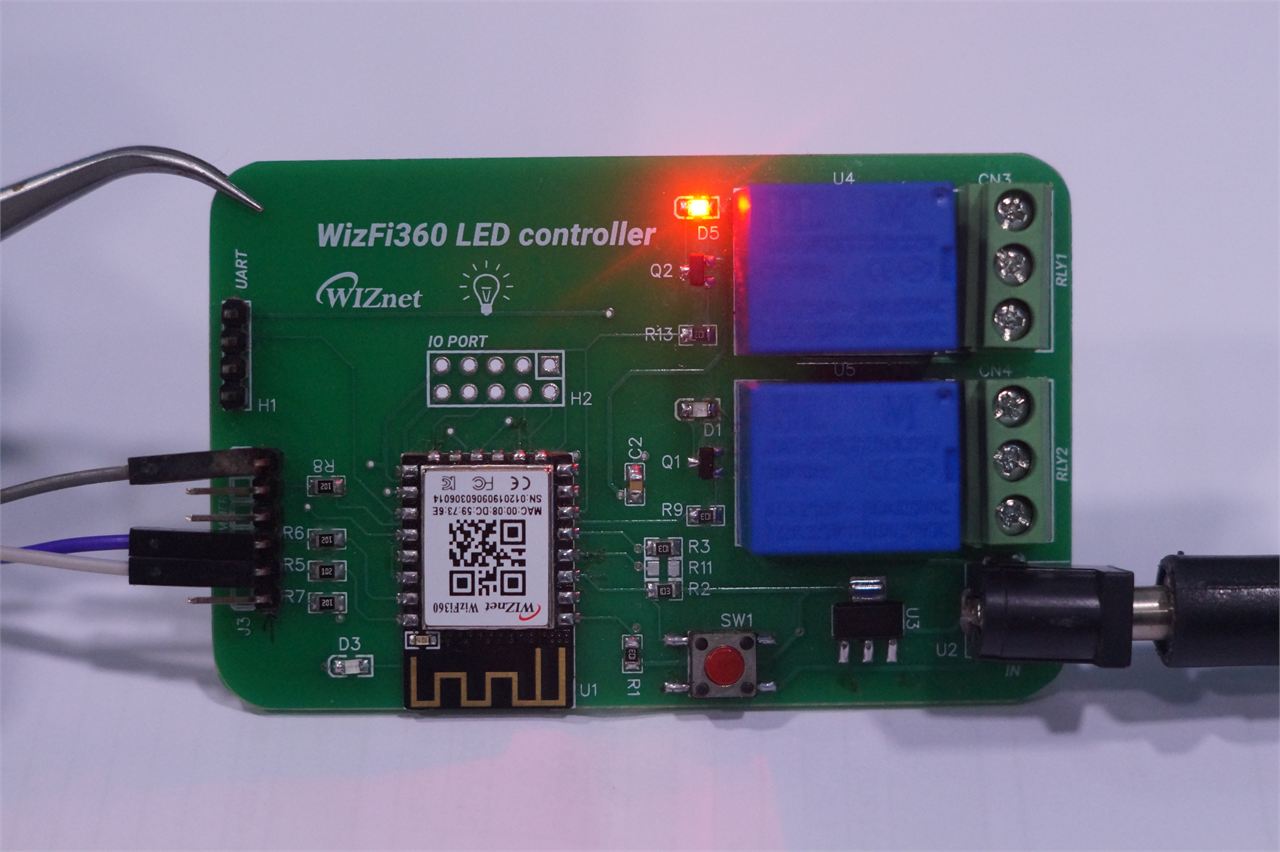

The components were purchased and assembled as shown below.
Testing
We will be testing this board with AT commands directly from the PC and configuring the WizFi360 to Wi-Fi and controlling it using mobile.
Output connections
Connect the LEDs to the relay port as shown below. We will be connecting a 230V bulb to the relay to check the operation.

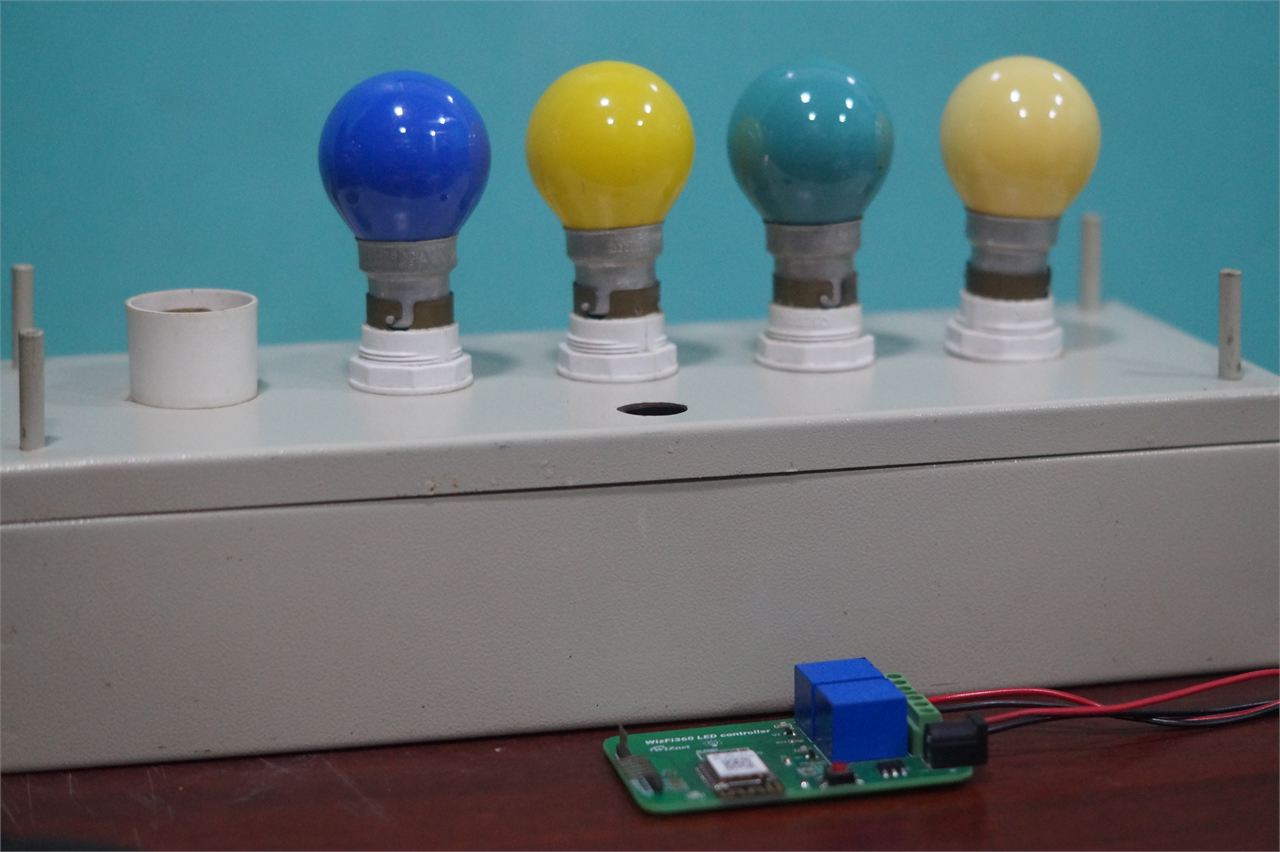

We have made a 230V bulb setup with a holder as shown. Connect the phase to the relays and bulb to the relay's common.

Using AT commands
Connect the USB-Serial converter to the Programmer port on the board.
Open a Serial monitor and select the baud to 115200. I'll be using putty to send the AT commands.

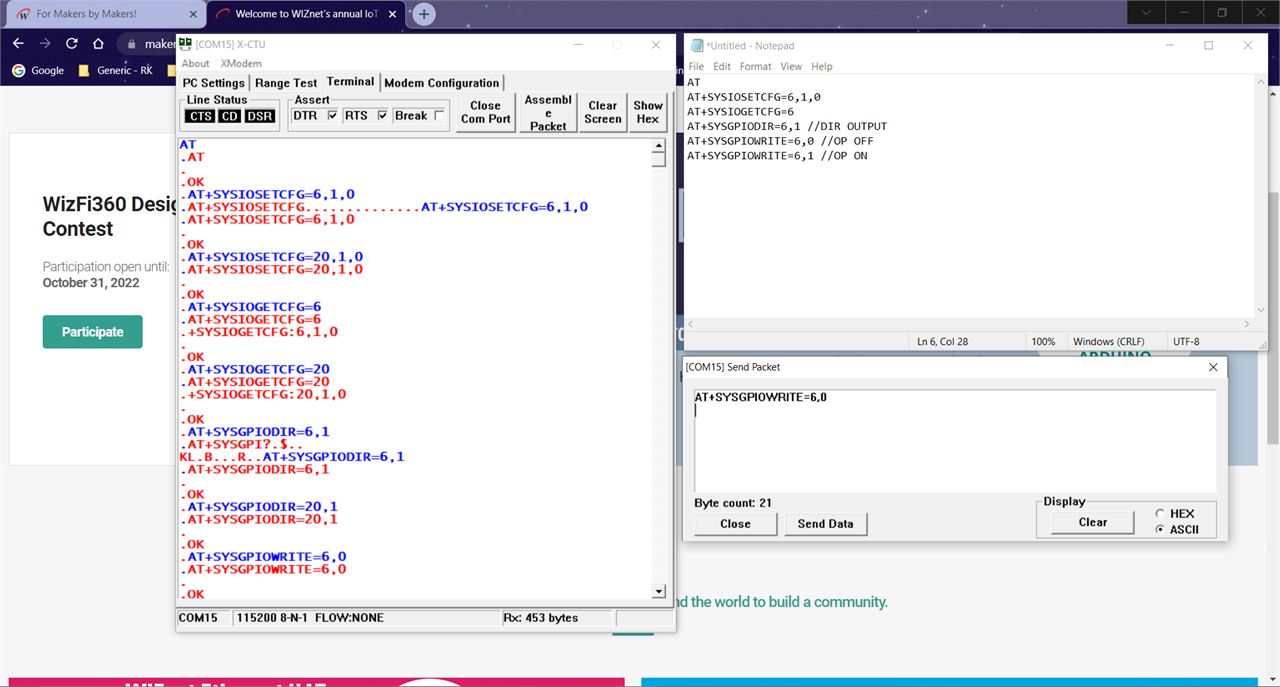

From the documentation, we use the following AT commands to turn ON/OFF a light (relay) from the PC.
AT
AT+SYSIOSETCFG=6,1,0
AT+SYSIOGETCFG=6
AT+SYSGPIODIR=6,1 //DIR OUTPUT
AT+SYSGPIOWRITE=6,0 //OP OFF
AT+SYSGPIOWRITE=6,1 //OP ON
You can see the relay switching in the image below.




Documents
  • Schematics

  • AT commands
