How to Configure W5500 on ESP32 with ESP-IDF for Commercial Ethernet Applications?

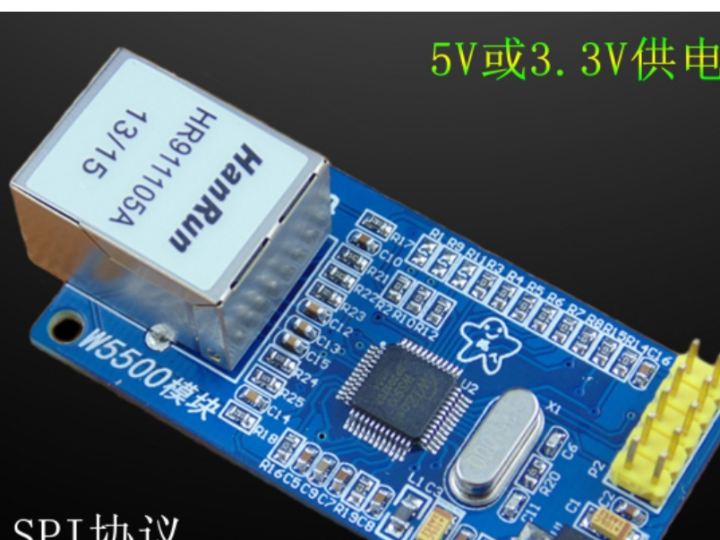

his project shows how to attach a WIZnet W5500 to an ESP32-S3 in ESP-IDF and bring it up as a standard Ethernet interface using Espressif’s esp_eth layer.
0
Project description
How to Configure W5500 on ESP32 with ESP-IDF for Commercial Ethernet Applications? Summary This project shows how to attach a WIZnet W5500 to an ESP32-S3 in ESP-IDF and bring it up as a standard Ethernet interface using Espressif’s esp_eth layer. The important architectural point is that W5500 provides the SPI Ethernet hardware, MAC/PHY, and packet buffering, while ESP-IDF handles the network stack integration through esp_netif and the TCP/IP stack above it. That makes the design relevant for commercial products that want wired connectivity on ESP32 without moving to a dedicated RMII PHY…
