How to Build Industrial IoT Ethernet Architecture with WIZnet W5500 on MCU Platforms?

Summary

This Industrial IoT architecture uses WIZnet W5500 as a wired Ethernet controller for MCU-based field devices that need predictable TCP/UDP communication, service access, and local diagnostics. The original CSDN Wenku answer page could not be directly fetched during verification, so no project-specific source code can be quoted. At architecture level, W5500 connects to the MCU through SPI and provides the Ethernet MAC/PHY, hardwired TCP/IP stack, socket engine, and internal Tx/Rx buffering, while the MCU firmware handles device logic, protocol framing, configuration, diagnostics, and recovery policy. W5500 is also compared with an LwIP-based software stack because that is a common architecture decision in industrial embedded networking.

What the Project Does

The project target is an Industrial IoT node with wired Ethernet. The device may be a sensor gateway, PLC-side adapter, data logger, metering endpoint, machine monitor, environmental controller, or field-service interface. Its main job is to collect local data, expose a stable Ethernet endpoint, exchange TCP or UDP packets with a supervisor, and keep enough diagnostics to recover from cable, peer, or IP-layer failures.

The data path is:

MCU application → device protocol layer → W5500 driver/socket layer → SPI → W5500 → RJ45 Ethernet → switch, PLC-side gateway, SCADA bridge, local server, or service laptop.

For industrial systems, the important design point is separation of responsibility. The MCU should own measurement timing, control policy, data framing, configuration storage, watchdog behavior, and system logs. W5500 should own Ethernet MAC/PHY operation, hardwired TCP/IP protocol handling, socket state, and packet buffering. WIZnet documents W5500 as a hardwired TCP/IP controller with SPI access up to 80 MHz, embedded 10/100 Ethernet MAC/PHY, 8 independent sockets, and 32 KB internal memory.

Where WIZnet Fits

The exact WIZnet product is W5500. It sits between the Industrial IoT MCU and the Ethernet connector. The MCU communicates with W5500 over SPI and control pins. W5500 exposes a socket-oriented Ethernet model: firmware configures network identity, opens sockets, monitors socket state, writes transmit buffers, and reads receive buffers.

W5500 supports hardwired TCP/IP protocols including TCP, UDP, ICMP, IPv4, ARP, IGMP, and PPPoE. It supports 8 independent sockets, SPI mode 0 and mode 3, 32 KB Tx/Rx buffer memory, embedded 10Base-T/100Base-TX PHY, auto-negotiation, 3.3 V operation, and 5 V I/O signal tolerance.

This is useful in Industrial IoT because many field devices run on small MCUs with limited RAM, limited flash, and strict timing boundaries. A hardware TCP/IP controller reduces the amount of network stack code the MCU must host. It also makes socket ownership, buffer sizing, and recovery states easier to reason about than a fully software-managed stack.

Implementation Notes

The exact Wenku page did not expose verified source files or a public repository. Therefore, this section gives an architecture explanation only and does not include project-specific code.

A robust Industrial IoT W5500 design has five layers.

The hardware interface layer connects W5500 to the MCU through SPI. The practical signal set is SCLK, MOSI, MISO, chip select, reset, interrupt, 3.3 V, and ground. Reset should be routed to an MCU GPIO so firmware can recover the Ethernet controller without rebooting the entire device. Interrupt should be connected when the firmware needs event-driven receive, disconnect, timeout, or send-complete handling.

The W5500 driver layer owns SPI transactions, chip-select timing, register access, socket buffer movement, reset sequencing, and interrupt flag clearing. W5500’s register model separates common registers, socket registers, socket transmit memory, and socket receive memory. A related CSDN W5500/LwIP integration article describes this split and notes that the device has common registers plus repeated socket register and memory regions for its socket channels.

The network configuration layer assigns MAC address, local IP mode, subnet, gateway, DNS, socket buffer sizes, retry timing, and whether the product uses DHCP or a fixed address. In industrial deployments, static IP is common for controlled networks, while DHCP may be useful for service tools or lab setups.

The application protocol layer maps sockets to product functions. A typical allocation is one socket for telemetry, one for service configuration, one for diagnostics, one for discovery, and one reserved for firmware or maintenance workflows. W5500 has 8 sockets, so socket ownership should be planned early rather than discovered late in integration.

The recovery and diagnostics layer records link state, IP address, socket state, reconnect count, last peer endpoint, last error, dropped packet count, watchdog cause, and firmware reset reason. Industrial Ethernet failures should be handled as operating states, not exceptional crashes.

The LwIP decision is separate. A related CSDN article explains that W5500 can be integrated with LwIP by using MACRAW mode so that Ethernet frames are passed to the processor-side TCP/IP stack; it also notes the trade-off that this bypasses much of W5500’s built-in TCP/UDP offload and can duplicate stack responsibility.

Practical Tips / Pitfalls

• Use W5500’s hardwired socket mode first unless the product clearly needs LwIP-level stack control.
• Route both reset and interrupt; they are important for field recovery and event-driven operation.
• Keep SPI traces short and validate chip access before testing TCP, UDP, MQTT, or Modbus-style traffic.
• Reserve sockets by function early; W5500 has 8 sockets, and industrial products often add service and diagnostic channels later.
• Log link state, socket state, IP configuration, reconnect count, and last peer endpoint.
• Treat DHCP failure, duplicate IP, cable removal, switch reboot, and remote peer restart as normal test cases.
• Size payloads conservatively; control and telemetry frames should not depend on large buffers unless the product has measured margin.

FAQ

Q: Why use WIZnet W5500 for an Industrial IoT MCU device?
A: W5500 gives the device wired Ethernet with hardwired TCP/IP, 8 sockets, 32 KB internal Tx/Rx buffer memory, and an embedded 10/100 Ethernet MAC/PHY. That reduces MCU-side network stack burden and lets the firmware focus on measurement, control, configuration, logging, and recovery behavior.

Q: How does W5500 connect to the platform?
A: W5500 connects to the MCU through SPI using SCLK, MOSI, MISO, chip select, reset, power, and ground. Interrupt is optional for a first prototype but recommended for industrial firmware that needs timely receive, disconnect, timeout, or send-complete handling. MicroPython’s WIZNET5K documentation describes the WIZnet5x00 control model as an SPI bus plus chip-select and reset pins; the same hardware boundary applies to many MCU designs.

Q: What role does W5500 play in this project?
A: W5500 is the wired Ethernet transport engine. The MCU owns device behavior and industrial protocol framing, while W5500 handles Ethernet MAC/PHY operation, TCP/UDP processing, socket state transitions, and packet buffering.

Q: Can beginners follow this architecture?
A: Yes, if they bring it up in stages. The practical order is power validation, SPI read/write test, W5500 reset test, link detection, IP configuration, UDP echo, TCP connection, socket recovery, and then the actual Industrial IoT protocol.

Q: How does W5500 compare with LwIP on the MCU?
A: W5500 hardwired mode keeps TCP/IP behavior in the Ethernet controller and exposes socket-oriented behavior to the MCU. LwIP is a software TCP/IP stack, so it gives deeper control and can unify multiple network interfaces, but the MCU firmware must manage packet buffers, timers, memory pressure, and interface callbacks. W5500 can be used in MACRAW mode with LwIP, but that architecture gives up much of W5500’s hardware TCP/IP offload and should be chosen only when LwIP compatibility is more important than the simpler hardwired socket model.

Source

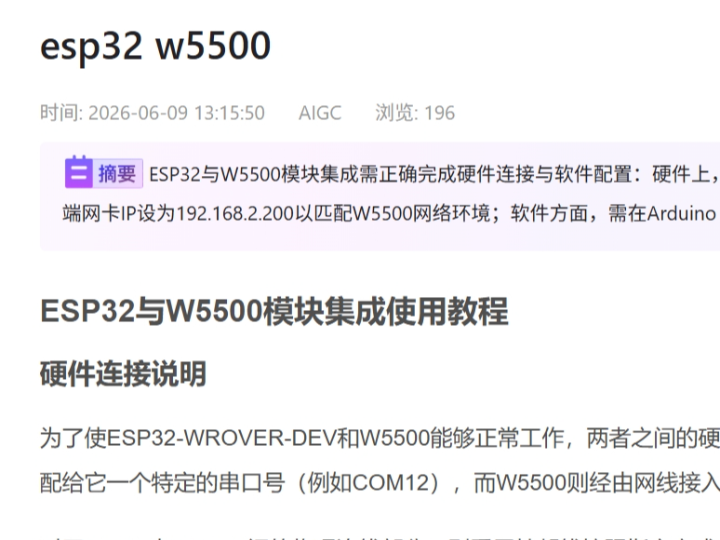

Original source: CSDN Wenku answer page provided by the user. The page could not be directly fetched during verification, so its license and project-specific implementation details could not be confirmed.

WIZnet product reference: W5500 documentation and feature list.

MicroPython reference: WIZNET5K documentation for WIZnet5x00 Ethernet modules.

Related LwIP integration reference: CSDN article on integrating W5500 with LwIP, including MACRAW mode, register layout, SPI configuration, interrupt handling, and network-interface registration. The page states that its content follows the CC 4.0 BY-SA license.

LwIP reference: Savannah project page for the lightweight IP stack.
