How Does SPI and Register-Level Control Work in W5500 Ethernet Communication?

A Driver-Level Walkthrough of SPI Transactions, Register Access, and Buffer Handling

(W5500의 SPI 및 레지스터 제어는 어떻게 동작하는가?)

Summary (40–60 words)

This article explains how the W5500 Ethernet controller is controlled at the driver level using SPI communication and register access. By analyzing SPI frame structure, register read/write operations, and buffer management, developers can understand how low-level firmware interacts with W5500 to enable reliable Ethernet communication in embedded systems.

1. Why Driver-Level Understanding Matters

Most W5500 tutorials focus on:

• TCP client/server examples
• MQTT or HTTP applications

However, when issues occur such as:

• “SPI works but no network”
• “Socket opens but no data”
• “Random communication failure”

the root cause is often at the driver level.

Understanding:

SPI → Register → Buffer → Socket → Protocol

is essential for debugging and building stable systems.

2. W5500 SPI Communication Architecture

The W5500 communicates with the MCU through SPI (Serial Peripheral Interface).

Key Characteristics

• SPI clock up to 80 MHz
• Full-duplex communication
• Controlled via CS (Chip Select) line
• Byte-oriented transaction structure

SPI Transaction Structure

Each W5500 SPI frame consists of:

[Address (16-bit)] + [Control Byte] + [Data]

Control Byte Breakdown

• Block select (common / socket / buffer)
• Read or Write operation
• Variable length mode

👉 Key insight:

Every Ethernet operation in W5500 ultimately becomes an SPI register access.

3. Register-Level Operation

The W5500 is entirely controlled through memory-mapped registers.

Common Registers

Socket Registers

Each socket has independent registers:

• Sn_MR → Mode (TCP/UDP)
• Sn_CR → Command register
• Sn_SR → Status register
• Sn_PORT → Port number

Example Workflow (Conceptual)

Write Sn_MR (TCP mode)
 → Write Sn_PORT
 → Issue OPEN command
 → Issue LISTEN or CONNECT

4. CS Timing and SPI Stability

One of the most common failure points is incorrect CS timing.

Correct Behavior

CS LOW
 → Send address + control + data
 → CS HIGH

Common Mistakes

• CS toggled too early
• SPI interrupted mid-frame
• Multiple commands in one CS window

👉 Result:

• Register write fails silently
• Socket behaves unpredictably

Practical Rule

One SPI frame = one CS LOW → HIGH cycle

5. TX/RX Buffer Management

The W5500 includes 32KB internal buffer memory, divided across sockets.

TX (Transmit) Flow

1. Read TX write pointer
2. Write data to TX buffer
3. Update TX pointer
4. Issue SEND command

RX (Receive) Flow

1. Check RX received size
2. Read data from RX buffer
3. Update RX pointer
4. Issue RECV command

👉 Critical rule:

If RECV is not issued, new data will not be received.

6. Typical Failure Case (Real Debug Scenario)

❌ “SEND OK but no data received”

This is one of the most common issues.

Root Causes

• TX pointer not updated
• SEND command not issued
• CS timing error
• Socket not in ESTABLISHED state

Debugging Approach

1. Verify SPI read/write correctness
2. Check Sn_SR (socket status)
3. Check TX free size
4. Monitor SEND command completion

👉 Key insight:

At driver level, most “network problems” are actually SPI or register issues.

7. Deterministic Behavior Advantage

Unlike software stacks (e.g., LwIP):

• No OS scheduling dependency
• No dynamic memory allocation
• Fixed hardware timing

Result

• Predictable performance
• Stable long-running operation
• Easier debugging

This is why W5500 is widely used in:

• industrial controllers
• embedded gateways
• real-time systems

8. Driver-Level Development Workflow

A typical firmware stack using W5500:

Low-level SPI driver
   │
   ▼
W5500 register driver
   │
   ▼
Socket API
   │
   ▼
Application (TCP / MQTT / HTTP)

👉 Important:

If the bottom layer fails, everything above fails.

9. Comparison with Software TCP/IP Stack

Key Takeaway

The W5500 is not just a networking chip—it is a hardware-driven network engine controlled entirely through SPI and registers.
Mastering SPI timing, register access, and buffer management is the key to building stable and reliable embedded Ethernet systems.

FAQ (WIZnet-Focused)

Q1. Why is SPI stability critical for W5500?

All communication between MCU and W5500 occurs over SPI. Any timing or framing error directly causes register corruption, leading to network failures.

Q2. How does W5500 differ from ENC28J60?

W5500 includes a full hardware TCP/IP stack, while ENC28J60 only provides MAC/PHY. This reduces firmware complexity significantly.

Q3. What is the most common driver-level bug?

Incorrect TX/RX pointer handling and missing RECV command are the most common causes of communication failure.

Q4. Can beginners work at register level?

Yes, but it requires understanding SPI and memory-mapped registers. Using ioLibrary simplifies development while preserving control.

Q5. Why does SEND succeed but no data appears?

This usually indicates buffer or pointer mismanagement, not a TCP failure.

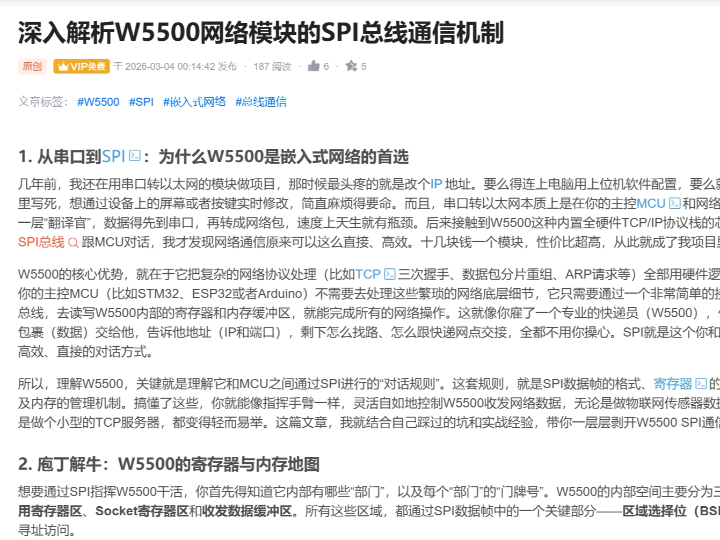

Source

CSDN Blog
weixin_29171087 — W5500 SPI / Register-Level Article

Tags

W5500
SPI Communication
Register-Level Programming
Embedded Ethernet
Driver Development

🇰🇷 한국어 번역 (1:1)

W5500의 SPI 및 레지스터 제어는 어떻게 동작하는가?

요약

본 문서는 WIZnet W5500 이더넷 컨트롤러가 SPI 통신과 레지스터 제어를 통해 어떻게 동작하는지를 설명한다. SPI 프레임 구조, 레지스터 접근 방식, 버퍼 관리 흐름을 분석하여 임베디드 시스템에서 안정적인 Ethernet 통신을 구현하는 방법을 제시한다.

1. 왜 드라이버 레벨 이해가 중요한가

문제의 대부분은 SPI와 레지스터에서 발생한다.

2. SPI 구조

주소 + 제어 바이트 + 데이터

3. 핵심 흐름

SPI → 레지스터 → 버퍼 → 소켓

4. 핵심 메시지

W5500의 안정성은 SPI 타이밍과 레지스터 제어 정확성에 달려 있다.
