Test of reference voltage change of RP2040 internal temperature sensor of SIP chip W55RP20
Test of reference voltage change of RP2040 internal temperature sensor of SIP chip W55RP20
0
Components
Hardware components
WIZnet - W55RP20
x 1
Project description

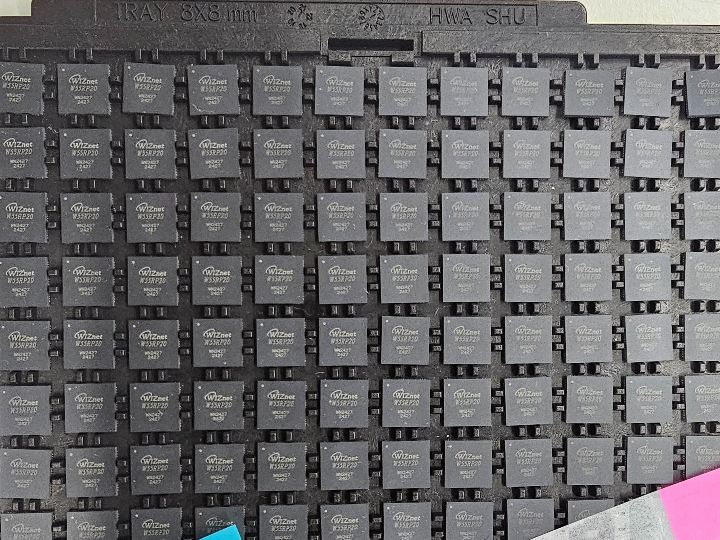

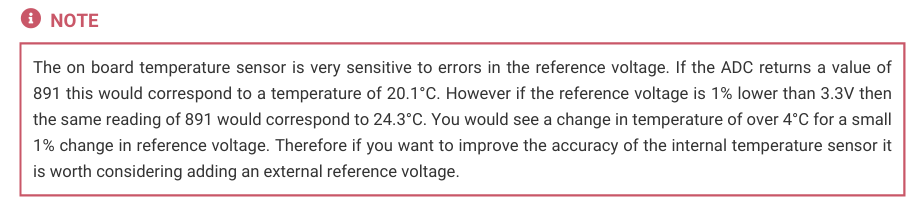

The SIP chip W55RP20 (W5500 + RP2040 integration) added by our company is a useful product that can be used in various IoT projects. This chip includes the internal temperature sensor of RP2040, which can be useful for monitoring the ambient temperature. However, this temperature sensor may have an error depending on the reference voltage, so we conducted a test to confirm this again. NOTE section of 4.9.5. Temperature Sensor in RP2040 Datasheet I was curious to know whether the content is the same as the difference in W55RP20 or if there is a large error in each chip, so I conducted a…
