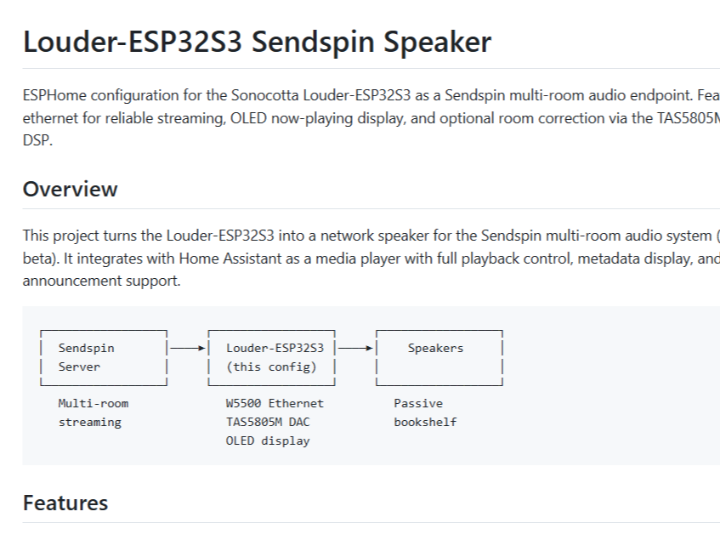

ESPHome configuration for the Sonocotta Louder-ESP32S3 as a Sendspin multi-room audio endpoint. Features W5500 ethernet for reliable streaming, OLED now-playing display, and optional room correction via the TAS5805M's built-in DSP.

This project turns the Louder-ESP32S3 into a network speaker for the Sendspin multi-room audio system (ESPHome beta). It integrates with Home Assistant as a media player with full playback control, metadata display, and announcement support.

┌─────────────────┐     ┌─────────────────┐     ┌─────────────────┐
│  Sendspin       │────►│  Louder-ESP32S3 │────►│    Speakers     │
│  Server         │     │  (this config)  │     │                 │
└─────────────────┘     └─────────────────┘     └─────────────────┘
   Multi-room              W5500 Ethernet          Passive
   streaming               TAS5805M DAC            bookshelf
                           OLED display

• Sendspin streaming - Synchronized multi-room audio playback
• Home Assistant integration - Media player entity with full control
• Announcement support - TTS/announcements with automatic ducking
• Now playing display - OLED shows track, artist, album
• Ethernet connectivity - W5500 for reliable, low-latency streaming
• 15-band graphic EQ - Adjustable via Home Assistant
• Room correction - Optional parametric EQ via TAS5805M biquads

• Sonocotta Louder-ESP32S3 board
• W5500 SPI Ethernet module (recommended)
• 128x64 SSD1306/SH1106 OLED (SPI)
• Passive speakers (bookshelf, etc.)
• 65W USB-C PD power supply

git clone https://github.com/yourusername/louder-esphome-sendspin.git
cd louder-esphome-sendspin

# Copy and edit secrets
cp secrets.yaml.example secrets.yaml
# Edit secrets.yaml with your API key and OTA password

Edit louder-s3-sendspin-ethernet-oled.yaml:

substitutions:
  name: "louder-s3-kitchen"      # Change per zone
  friendly_name: "Kitchen Speaker"  # Change per zone

esphome run louder-s3-sendspin-ethernet-oled.yaml

The device will be auto-discovered. Add it via the ESPHome integration.

├── louder-s3-sendspin-ethernet-oled.yaml  # Main ESPHome config
├── room_correction_services.yaml          # Room correction HA services
├── tas5805m_biquad_i2c.h                  # Biquad I2C implementation
├── tas5805m_profile_manager.h             # EQ profile storage
├── calibrate.html                         # Phone calibration UI
├── index.html                             # Room correction UI
├── secrets.yaml.example                   # Example secrets
└── docs/
    ├── GETTING_STARTED.md                 # Detailed setup guide
    ├── PROFILE_USAGE.md                   # Profile management
    └── TESTING_CHECKLIST.md               # Testing procedures

The configuration includes optional room correction via the TAS5805M's 30 programmable biquad filters (15 per channel). This is included as a package and can be removed if not needed.

When room correction is enabled, these services are available:

service: esphome.louder_s3_kitchen_set_parametric_eq
data:
  channel: 2      # 0=left, 1=right, 2=both
  index: 0        # Biquad slot 0-14
  frequency: 80   # Hz
  gain_db: -6     # dB (negative = cut)
  q: 2            # Q factor

For automated measurement and correction:

1. Open http://louder-s3-kitchen.local/calibrate on your phone
2. Position phone at listening position
3. Allow microphone access
4. Follow measurement wizard
5. Review and apply calculated filters

To use as a simple Sendspin speaker without room correction, remove this from the main config:

packages:
  room_correction: !include room_correction_services.yaml

• Check ethernet connection (link LED on W5500)
• Verify Sendspin server is running
• Check ESPHome logs for errors

• Use ethernet instead of WiFi for reliability
• Check network congestion
• Verify PSRAM is detected in logs

• Check SPI wiring (CS=47, DC=38, RST=48)
• Try changing model from SSD1306 to SH1106

• Check I2C bus logs for errors
• Verify TAS5805M address (0x2C)
• Ensure DAC is enabled

• mrtoy-me - ESPHome TAS5805M component
• Sonocotta - Louder-ESP32S3 hardware
• ESPHome Sendspin team - Multi-room audio streaming

MIT License
