Customized Hotel Room use Serial to Ethernet
Customized Hotel Room use Serial to Ethernet
0
Components
Hardware componentsWIZnet WIZ750SR-TTL-EVB Kit
x 1
Resistor 1k ohm
x 3
RGB Diffused Common Cathode
x 1
KL27 mini board
x 1
LEGO MindStorms LEGO Creator Lighthouse Island 5770
x 1
Jumper wires (generic)
x 8
Breadboard (generic)
x 1
WIZnet wizconfig
x 1
sscom
x 1
Project description

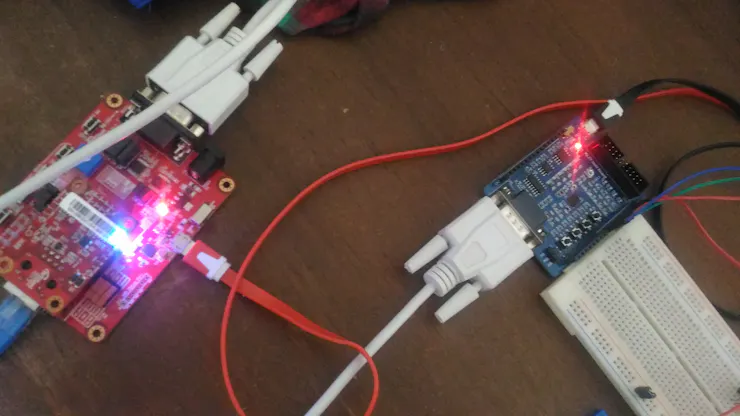

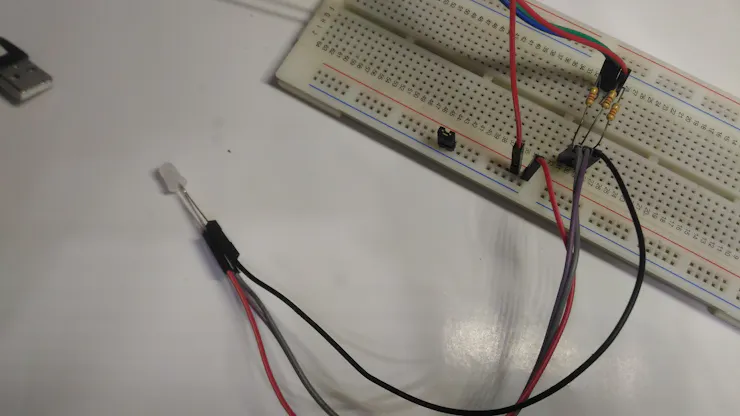

Story spoiler?:?A?LED?control?project This project is similarly with?my old project. BUT this time doesn't need Wi-Fi and cloud to set the room. If hotel room has Ethernet port it can be used directly. Without add independent power port for Wi-Fi device. start with WIZ750SR If you don't know how to use WIZ750SR you can read?this project?and follow it to start. Hardware prepare connect WIZ750SR like this : can be power from DC jack or USB. connect KL27 mini board like this : it is hard to buy this board I choose it just because it has the RS232 port. See the schematics at the end attachment…
