W7500P-S2E Development Board / Module Serial Port to Ethernet

It is a compact Serial to Ethernet module using W7500P.

WIZnet

Published April 17, 2023

Original author: TailKuKe · ChinaOriginal source (new tab)

W7500P-S2E Development Board / Module Serial Port to Ethernet

Components

Hardware components
W7500P

WIZnet - W7500P

x 1

Project description

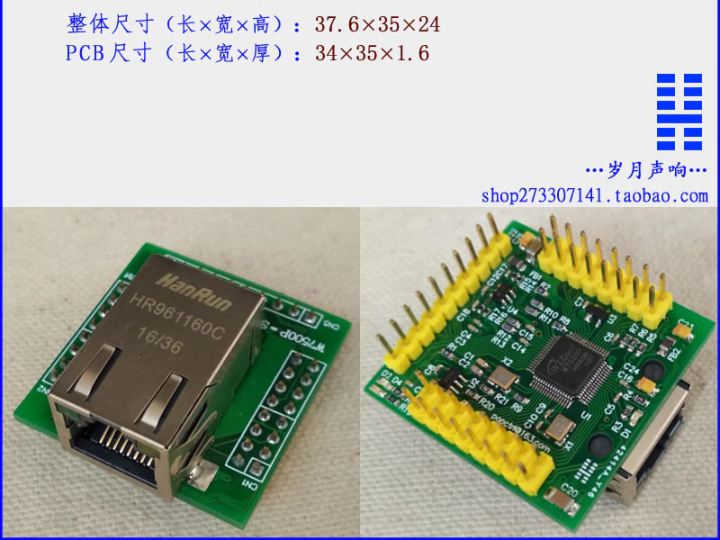

INTRODUCTION It is a compact serial to Ethernet module using W7500P. FEATURES This board features – It is a small board using W7500P. – Most pins of the W7500P are connected by pin header. – Serial-to-Ethernet firmware does not seem to support it. TECHNICAL DETAILS If you want a smaller size, we recommend purchasing WIZ750SR or W7500S2E-R1. HOW TO USE –
