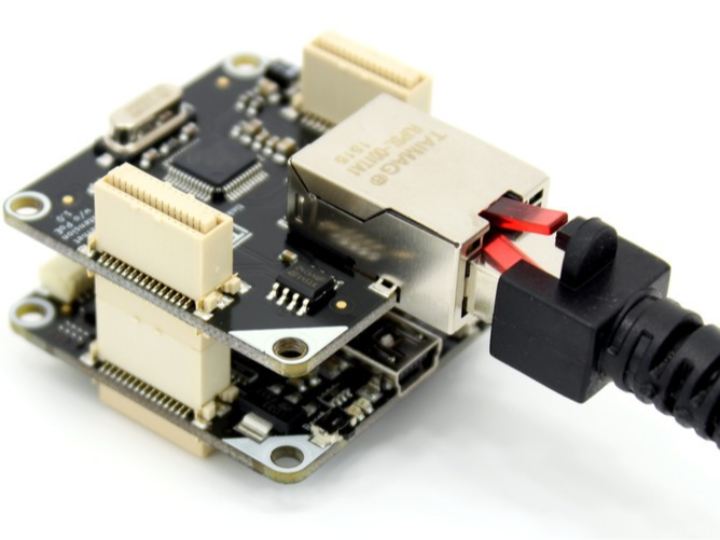

Ethernet Master Extension (without PoE)
Communicate directly with Bricks/Bricklets without Brickd Supports 10/100 Mbit/s Ethernet (1000 Mbit/s compatible)
3
Project description
Details With this Ethernet Extension you can control Bricks and Bricklets and integrate them into a LAN. 10BaseT/100BaseTX Ethernet is supported and the module is 1000BaseTX compatible. The Extension is available in two variants: The PoE variant features a integrated PoE power supply. It allows to power the connected modules over industry standard IEEE 802.3af, such that a PoE injector as well as PoE switches can be used to power stacks. Additionally a variant without PoE is available. Since the device itself handles TCP/IP packages generated by the API, it is possible to connect directly…
