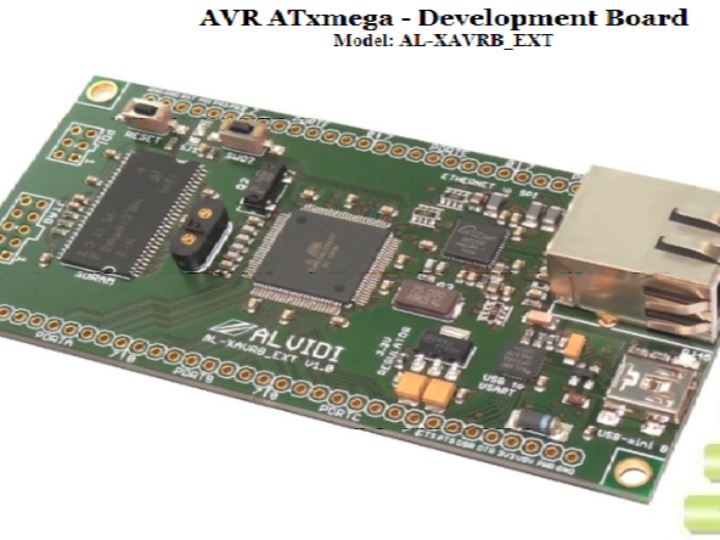

AVR ATxmega - Development Board (Model: AL-XAVRB_EXT)

Components

Hardware components

Project description

DETAILS AVR ATxmega – Development Board (Model: AL-XAVRB_EXT) by ALVIDI Overview This product supports a large 8MBytes SDRAM memory and Hardwired TCP/IP chip W5200. So, it is very easy to develop the application that needs large memory such as IP-camera, Web-service, and SSL secuity communication. Construction: Controller: Atmel AVR ATxmega128A1U-AU up to 32 MHz Equipment: internal voltage regulator 3.3V external SDRAM 64Mbit USB to USART CP2102 controller Ethernet to SPI W5200 controller Links: data sheet schematic boot loader boot code Eagle library
