ARM Cortex M3 Dev Board

ARM Cortex M3 Dev Board

WIZnet

Published April 20, 2023

Original author: zallus · United States of AmericaOriginal source (new tab)

ARM Cortex M3 Dev Board

Components

Hardware components

Project description

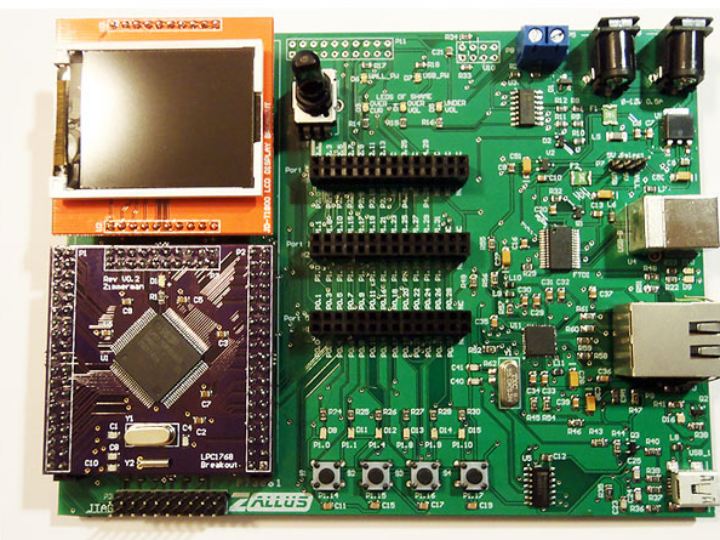

DETAILS A flexible and cheap dev board that could host numerous advance applications such as Ethernet and USB.A flexible and cheap dev board that could host numerous advance applications such as Ethernet and USB. Dev Board Features: -LPC1768 ARM Cortex M3 MCU -W5200 SPI based Ethernet Controller -160×128 Color LCD Display -FTDI FT232 VCP USB -2nd USB port hooked directly to the LPC1768 for more advance USB applications -6 LEDs, 4 push buttons, 1 potentiometer -NRF24L01 SPI Wireless Module -Can be powered via USB or wall-wart plugin -Micro is modular and thus can be easily replaced -Raw part…
