How Can Snap! Control Arduino Hardware over Ethernet Using WIZnet W5100 and Firmata?

(Networked Arduino I/O Control with Snap! Block Programming)

Summary (40–60 words)

SA5 (Snap! and Arduino Synchronized) connects the Snap! block-programming environment with Arduino hardware using the Firmata protocol. By using a WIZnet W5100 Ethernet shield, Firmata communication can run over TCP instead of serial, enabling remote control of Arduino GPIO, PWM, servo motors, and I2C sensors across a local network.

1️⃣ Project Overview

SA5 is an educational and maker-oriented project designed to bridge Snap!, a visual block-based programming environment, with Arduino hardware.

The connection is implemented using the Firmata protocol, which allows external software to control microcontroller I/O in real time.

Typical capabilities include:

• digital I/O control
• PWM outputs
• servo control
• analog sensor reading
• I2C device communication

Instead of running application logic directly on the Arduino, the firmware exposes the board as a network-controlled I/O device.

2️⃣ Core Concept: Firmata as a Hardware Abstraction Layer

Firmata works as a protocol layer between external software and the microcontroller.

Architecture:

Application (Snap!)
        │
Firmata Client
        │
Firmata Protocol
        │
Transport Layer
(Serial / Ethernet / WiFi)
        │
Arduino Firmware
        │
Hardware I/O

This design allows the same Firmata firmware to work over multiple communication transports.

For Ethernet deployments, the project uses WIZnet W5100.

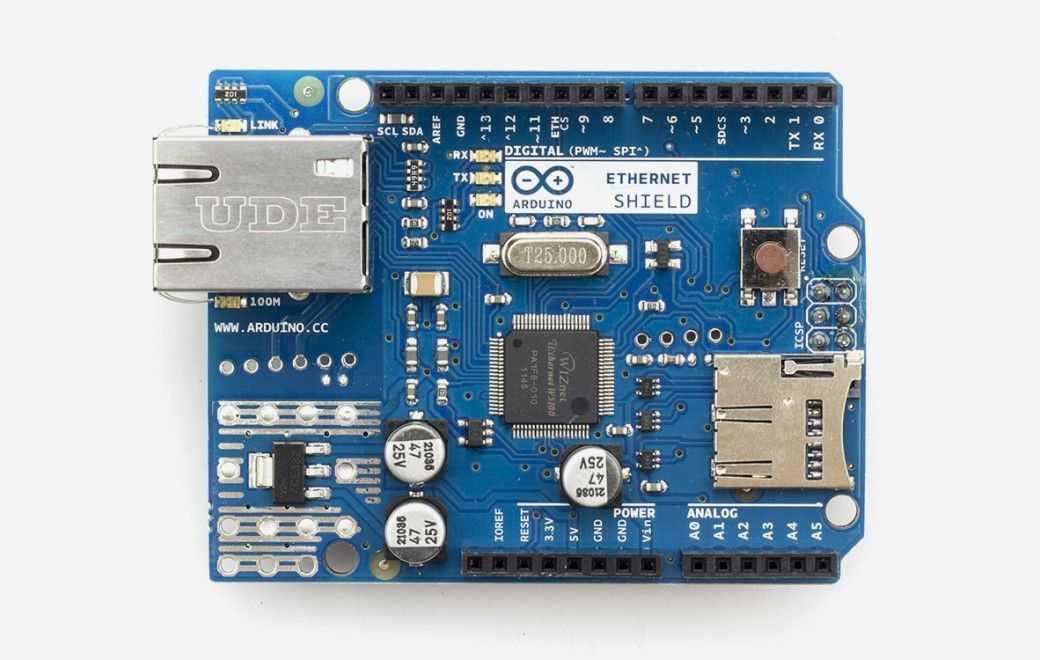

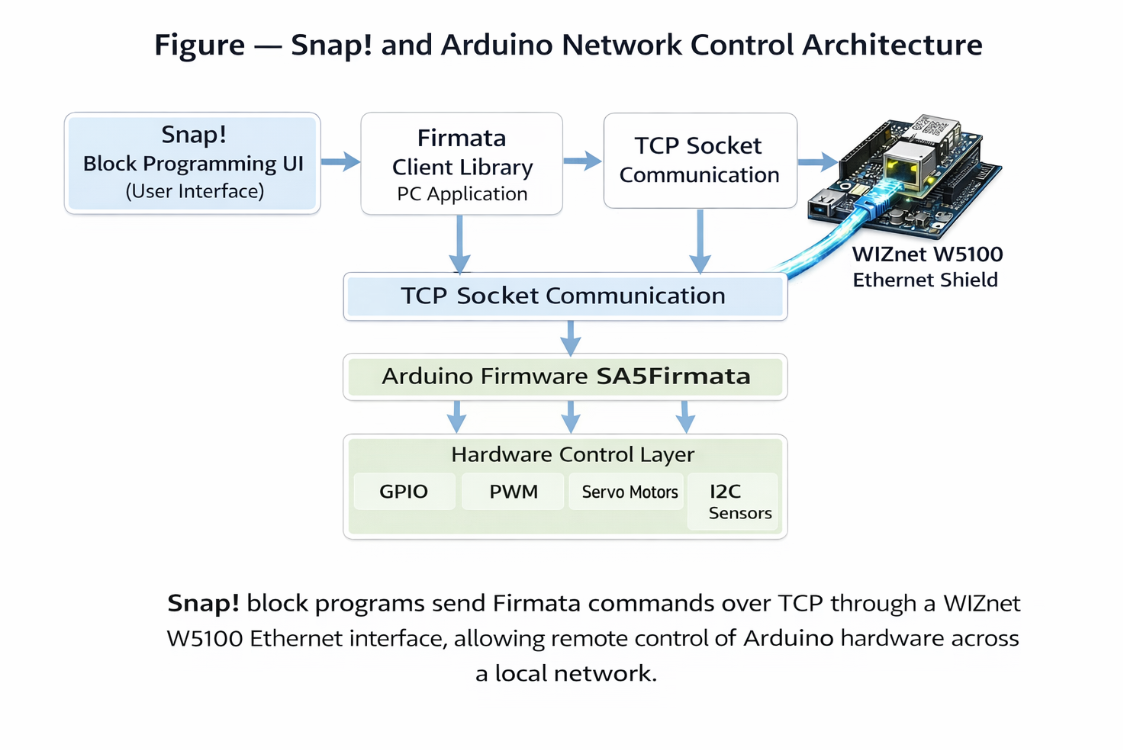

3️⃣ System Architecture with WIZnet

When Ethernet is used, the communication stack becomes:

Generated By Chat GPT

Snap! Block Program
        │
Firmata Client Library
        │
TCP Socket
        │
WIZnet W5100 Ethernet
        │
Arduino Firmware (SA5Firmata)
        │
GPIO / PWM / Servo / I2C Devices

Network perspective:

User Interface (Snap!)
        ↓
Firmata Client (PC)
        ↓ TCP
WIZnet W5100 Ethernet Shield
        ↓
Arduino MCU
        ↓
Hardware Control

The W5100 provides hardware TCP/IP networking for the Arduino platform.

4️⃣ Network Configuration

A typical Ethernet configuration for Firmata uses TCP sockets.

Example configuration:

Protocol: TCP
Port: 3030
Transport: EthernetClient
Controller: WIZnet W5100

Example initialization:

Ethernet.begin(mac, ip);
EthernetServer server(3030);

The Snap! client connects to the Arduino board through the network socket.

5️⃣ Firmata Command Processing

The Arduino firmware registers callbacks that translate network commands into hardware actions.

Example initialization:

Firmata.begin(57600);

Callback registration:

Firmata.attach(ANALOG_MESSAGE, analogWriteCallback);
Firmata.attach(DIGITAL_MESSAGE, digitalWriteCallback);
Firmata.attach(SET_PIN_MODE, setPinModeCallback);

These callbacks handle commands received over the Firmata protocol.

6️⃣ Hardware Control Example

Example digital output control:

digitalWrite(PIN_TO_DIGITAL(pin), value);

Example analog sensor reporting:

Firmata.sendAnalog(analogPin, analogRead(analogPin));

When Snap! sends a command through the network, the Arduino firmware parses the Firmata message and executes the appropriate hardware operation.

7️⃣ Runtime Data Flow

Example: Button Monitoring

Button Press
→ Arduino detects digital input change
→ Firmata message generated
→ TCP packet sent via W5100
→ Snap! receives event

Example: PWM Control

Snap! block command
→ Firmata message
→ TCP packet
→ Arduino parser
→ analogWrite()
→ PWM signal output

Example: I2C Sensor Reading

Sensor request
→ Firmata I2C command
→ Wire.requestFrom()
→ sensor data returned
→ Firmata.sendSysex()
→ network transmission

8️⃣ Code Structure

Important directories in the repository include:

Core Firmata Library

libraries/Firmata/

Key files:

Transport Layer

utility/

Key transport implementations:

Firmware Examples

examples/

Examples include:

StandardFirmata

StandardFirmataEthernet

StandardFirmataWiFi

Project Firmware

firmata/

Example sketches:

SA5Firmata_ir.ino

ImaginaFirmata.ino

9️⃣ Why WIZnet W5100 Is Important Here

The W5100 Ethernet controller allows Arduino boards to expose their hardware over a network.

Key benefits include:

Hardware TCP/IP stack

The W5100 processes TCP/IP communication independently from the Arduino MCU.

Remote hardware control

External applications can control Arduino hardware through standard network sockets.

Educational networking platform

Students can experiment with distributed systems and IoT concepts without implementing complex network stacks.

🔟 Use Cases

This architecture supports many educational and maker applications.

STEM Education

Students can build network-controlled hardware experiments using visual programming.

Remote Robotics

Robotic hardware can be controlled over a LAN using block-based interfaces.

Networked Sensor Systems

Sensors connected to Arduino can publish data to remote applications.

Remote Labs

Educational labs can expose hardware interfaces to remote learners.

FAQ

What is Firmata?

Firmata is a protocol that allows external software to control microcontroller hardware by sending commands over a communication interface such as serial, TCP, or WiFi.

Why use WIZnet W5100 with Firmata?

The W5100 enables Firmata communication over Ethernet by providing a hardware TCP/IP stack, allowing Arduino devices to be controlled over a network instead of a direct USB connection.

Can Snap! control Arduino remotely?

Yes. Snap! can communicate with Arduino through the Firmata protocol over TCP using the W5100 Ethernet shield.

What hardware functions can be controlled?

Typical functions include digital I/O, PWM, analog inputs, servo motors, and I2C sensors.

Does Firmata require custom firmware?

Yes. Arduino must run a Firmata-compatible firmware such as StandardFirmata or a customized version like SA5Firmata.
