grblhal-RP2040

Explains an RP2040-based CNC controller using W5500 to offload TCP/IP, enabling deterministic real-time control and stable network communication without jitter.

COMPONENTS Hardware components

WIZnet - W5500

x 1

Raspberry Pi - RP2040

x 1

PROJECT DESCRIPTION

What the Project Does

This is a network-enabled CNC controller firmware built on RP2040.

It allows a CNC machine to be controlled remotely through:

Telnet (command-line control)

WebSocket (real-time UI)

HTTP (web interface)

FTP (file transfer)

MQTT (optional integration)

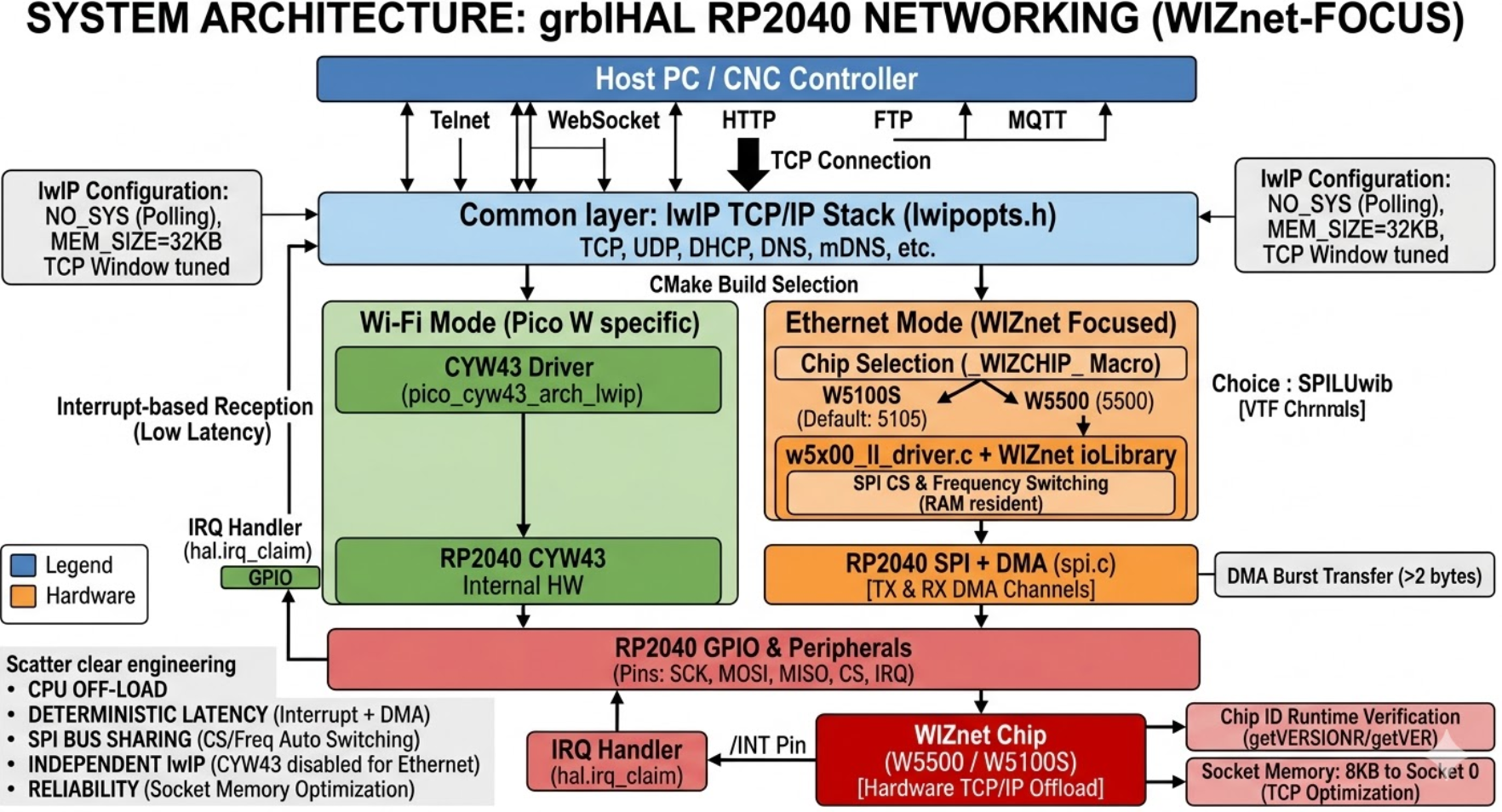

System Structure (Simplified)

Generated By Gemini

Host PC / Web UI
        ↓
   TCP (Telnet / HTTP / WebSocket)
        ↓
        lwIP
        ↓
 ┌───────────────┬──────────────────┐
 │ Wi-Fi (CYW43) │ Ethernet (W5500)                                                                         │
 └───────────────┴──────────────────┘
        ↓
     RP2040

The key design decision:

The networking layer is modular and replaceable, while the application layer remains unchanged.

Where WIZnet Fits

The system explicitly supports WIZnet W5500 / W5100S as an alternative to Wi-Fi.

Role of W5500 in this architecture

Acts as a hardware TCP/IP engine over SPI

Handles:

packet transmission

retransmission

checksum

socket buffering

Exposes a register-based socket interface to the MCU

Why this matters for CNC

CNC control requires:

precise timing

no jitter

predictable loop execution

W5500 ensures:

networking does not interrupt motion control

CPU cycles remain dedicated to step generation and control logic

Implementation Notes

1) Build-Time Network Selection (Critical Design)

File: driver.h

#if ETHERNET_ENABLE && WIFI_ENABLE
#error "WiFi and Ethernet cannot be enabled at the same time!"
#endif

What this does:

Prevents dual-stack conflicts

Forces a clean architecture boundary

Why it matters:

Avoids runtime instability

Keeps memory usage predictable

2) WIZnet Driver Integration via CMake

File: CMakeLists.txt

if(ADD_ETHERNET)
    target_compile_definitions(grblHAL PUBLIC ETHERNET_ENABLE=1)
    target_compile_definitions(grblHAL PUBLIC CYW43_LWIP=0)
    include(networking/wiznet/CMakeLists.txt)
    target_sources(grblHAL PRIVATE w5x00_ll_driver.c)
endif()

Key insight:

Wi-Fi lwIP is explicitly disabled

WIZnet path uses its own driver + lwIP instance

3) Low-Level Driver (W5500 / W5100S Switch)

File: w5x00_ll_driver.c

#if _WIZCHIP_ == W5500
#include "W5500/w5500.h"
#elif _WIZCHIP_ == W5100S
#include "W5100S/w5100s.h"
#endif

What this enables:

Same codebase supports multiple WIZnet chips

Selection via compile-time macro

4) SPI Bus Control with Dynamic Frequency Switching

static void wizchip_select(void)
{
    if(spi_freq != WIZCHIP_SPI_FREQ)
        spi_set_speed(WIZCHIP_SPI_FREQ);

    DIGITAL_OUT(hw.cs, 0);
}static void wizchip_deselect(void)
{
    DIGITAL_OUT(hw.cs, 1);

    if(spi_freq != WIZCHIP_SPI_FREQ)
        spi_set_speed(spi_freq);
}

Why this exists:

SPI bus is shared (e.g., SD card)

W5500 runs at ~33 MHz

Other devices may require slower speeds

Result:

Safe multi-device SPI architecture

5) Hardware Initialization + ioLibrary Pattern

reg_wizchip_cs_cbfunc(wizchip_select, wizchip_deselect);
reg_wizchip_spi_cbfunc(spi_get_byte, spi_put_byte);

What this means:

Standard WIZnet ioLibrary integration

Abstracts hardware access cleanly

6) Socket Memory Allocation Strategy

uint8_t memsize[2][8] = {
    {8,0,0,0,0,0,0,0},
    {8,0,0,0,0,0,0,0}
};

Interpretation:

All 8KB assigned to socket 0

Why:

CNC controller uses single dominant connection

Prevents buffer fragmentation

Improves throughput stability

7) Interrupt-Based Packet Reception (Key Optimization)

ctlsocket(socket, CS_SET_INTMASK, (void *)&reg_val);
ctlwizchip(CW_SET_INTRMASK, (void *)&reg_val);

What happens:

W5500 asserts /INT pin on packet arrival

RP2040 IRQ handler processes it

Why this is critical:

No polling loops

No wasted CPU cycles

Deterministic behavior

8) DMA-Based SPI Transfers

File: spi.c

dma_channel_configure(dma_tx.channel, ...);
dma_channel_configure(dma_rx.channel, ...);
dma_start_channel_mask(...);

Behavior:

Large transfers use DMA

CPU is not involved during transfer

Impact:

CNC motion loop remains uninterrupted

High throughput without CPU penalty

9) lwIP Configuration (No RTOS)

File: lwipopts.h

#define NO_SYS 1
#define MEM_SIZE (32*1024)
#define TCP_WND (8 * TCP_MSS)

Key design:

No RTOS → polling-based main loop

Large TCP window → better file transfer performance

10) Service Layer Auto-Start

services.telnet = telnetd_init(network.telnet_port);
services.websocket = websocketd_init(network.websocket_port);
services.http = httpd_init(network.http_port);

Meaning:

When link is up → all services start automatically

Same stack reused across all protocols

Practical Tips / Pitfalls

Do not enable Wi-Fi and Ethernet together (compile-time enforced)

Use INT pin for efficient packet handling (avoid polling)

Ensure SPI clock compatibility when sharing bus

Allocate socket memory based on actual connection pattern

Use DMA for large SPI transfers to avoid CPU blocking

Keep lwIP tuning aligned with application (e.g., TCP window size)

FAQ

Q: Why use W5500 instead of Wi-Fi in this system?
A: CNC control requires deterministic timing. W5500 removes TCP/IP processing from the MCU, eliminating jitter caused by Wi-Fi stacks and interrupts.

Q: How is W5500 connected to RP2040?
A: Through SPI with optional interrupt pin. SPI can run up to ~33 MHz and supports DMA for high-throughput transfers.

Q: What role does W5500 play in this project?
A: It acts as the network transport engine, handling all Ethernet communication while exposing socket-level access to lwIP and application services.

Q: Can beginners use this project?
A: It is not beginner-level. You need understanding of embedded C, SPI, DMA, and networking stacks like lwIP.

Q: How does this compare to using only lwIP with a software MAC/PHY?
A: Software stacks consume CPU cycles and introduce jitter. W5500 offloads this work, making it better suited for real-time systems like CNC controllers.

Source

Project: grblHAL RP2040 networking implementation

Key files:

networking/wiznet/w5x00_ll_driver.c

networking/wiznet/CMakeLists.txt

driver.h

spi.c

lwipopts.h
