How to Build a Telemetry & Telecommand System with W5500 on ESP32

COMPONENTS Hardware components

WIZnet - W5500

x 1

PROJECT DESCRIPTION

What the Project Does

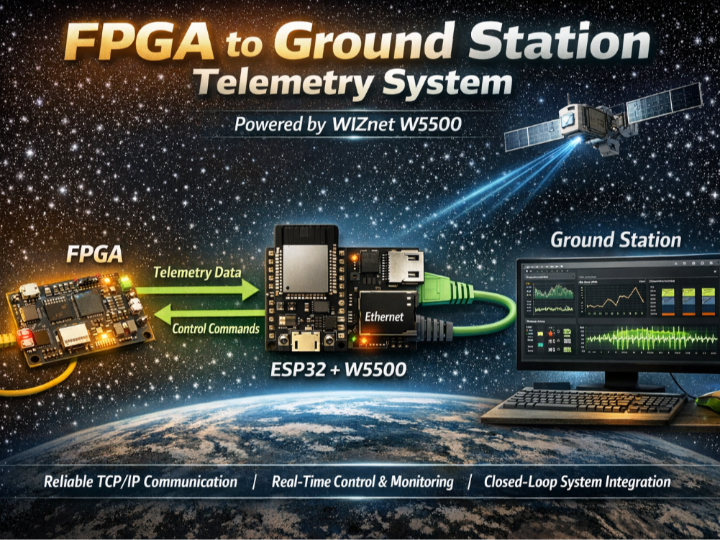

Think of this system as a miniature satellite communication stack on the ground.

The FPGA acts like a payload instrument, continuously generating experiment data
The ESP32 behaves as a communication module, translating raw data into structured packets
The Ground Station is the control center, visualizing data and issuing commands

The full system forms a closed-loop pipeline:

Data Generation (FPGA)
Sensor data, GNSS info, and SRAM bit-flip results are packaged into telemetry frames
Data Bridging (ESP32)
- UART receives raw byte streams
- Packets are validated (length + CRC)
- Data is restructured into TCP-ready format
Network Transmission (W5500 Ethernet)
- Packets are sent via TCP to the ground station
- Commands are received back over the same channel
Visualization & Control (Python GUI)
- Real-time graphs (temperature, altitude, radiation)
- Logging to CSV
- Command interface (mode change, reset, etc.)

This architecture separates concerns cleanly:

FPGA → deterministic data generation
MCU → protocol handling
W5500 → network transport
PC → UI and analytics

Where WIZnet Fits

The WIZnet W5500 is the critical bridge between embedded logic and network infrastructure.

In this project, it:

Provides hardware TCP/IP stack offload
Enables SPI-based Ethernet connectivity on ESP32
Handles socket-level communication (up to 8 sockets)

Why this matters in this architecture:

The ESP32 is already busy with:
- UART parsing
- CRC validation
- packet queue management
By offloading TCP/IP:
- CPU load is reduced
- timing becomes more deterministic
- packet loss risk is minimized
Compared to Wi-Fi:
- Wired Ethernet avoids interference
- Latency is stable → important for continuous telemetry

In short, W5500 converts the ESP32 from a “best-effort network node” into a deterministic telemetry gateway.

Implementation Notes

1) System-Level Data Flow

[ FPGA ]
   │ UART (TM)
   ▼
[ ESP32 ]
   │ Packet parsing + CRC
   │
   ├── TX → TCP (via W5500) → Ground Station
   └── RX ← TCP (TC) ← Ground Station
   │
   ▼
[ FPGA ] (TC via UART)

This flow is directly reflected in the project structure .

2) W5500 Initialization (Actual Project Code)

File: MCU/ethernet_test/components/ethernet/ethernet.c

// Initialize W5500 Ethernet interface
init_wiz550io_eth();

// Apply default configuration for W5500
ETH_W5500_DEFAULT_CONFIG(...);

// Create MAC layer for W5500 over SPI
esp_eth_mac_new_w5500(...);

// Create PHY layer abstraction
esp_eth_phy_new_w5500(...);

Why this matters:

This explicitly selects W5500 over internal EMAC
The ESP-IDF Ethernet stack binds W5500 as the active interface
All TCP communication (telemetry + command) depends on this path

3) Runtime Integration

File: main/main.c

void app_main(void)
{
    ethernet_setup();      // W5500 initialization
    start_tcp_server();    // Handles telemetry TX / command RX
    start_uart_task();     // Receives FPGA data
}

Architecture Insight:

UART and TCP run as separate tasks
W5500 enables non-blocking network I/O
System behaves like a streaming pipeline

4) Conceptual Integration Example (ioLibrary Style)

If implemented without ESP-IDF abstraction, the same logic would look like:

// Conceptual integration example based on WIZnet ioLibrary

#include "wizchip_conf.h"

// SPI callbacks
reg_wizchip_spi_cbfunc(spi_read, spi_write);

// Allocate socket buffers (8 sockets)
uint8_t txsize[8] = {2,2,2,2,2,2,2,2};
uint8_t rxsize[8] = {2,2,2,2,2,2,2,2};
wizchip_init(txsize, rxsize);

// Network configuration
wiz_NetInfo netinfo = {
    .mac = {0x00,0x08,0xDC,0x01,0x02,0x03},
    .ip  = {192,168,0,10},
    .sn  = {255,255,255,0},
    .gw  = {192,168,0,1}
};

wizchip_setnetinfo(&netinfo);

This highlights:

Direct socket buffer control
Deterministic memory usage
No OS-level TCP stack required

Practical Tips / Pitfalls

Ensure SPI wiring is short and stable to avoid packet corruption
Always check PHY link status before opening sockets
Use CRC at both UART and TCP boundaries (already implemented)
Avoid dynamic memory in packet path for stability
Monitor socket usage (W5500 supports 8 simultaneous sockets)
Prefer static IP during bring-up phase
Consider watchdog reset for long-duration streaming

FAQ

Q: Why use W5500 instead of ESP32 Wi-Fi?
A: W5500 provides hardware TCP/IP offload and deterministic wired communication, avoiding Wi-Fi latency spikes and packet loss under interference.

Q: How is W5500 connected to ESP32?
A: Via SPI (MISO, MOSI, SCK, CS). The ESP-IDF driver initializes it using esp_eth_mac_new_w5500() and esp_eth_phy_new_w5500().

Q: What role does W5500 play in this project?
A: It acts as the TCP transport layer, sending telemetry data to the ground station and receiving telecommands in real time.

Q: Is this suitable for beginners?
A: This is an advanced system involving FPGA, RTOS tasks, networking, and packet design. Intermediate to advanced embedded experience is recommended.

Q: How does it compare to ENC28J60 or LwIP-based Ethernet?
A: Unlike ENC28J60 or LwIP, W5500 includes a hardware TCP/IP stack, reducing CPU usage and simplifying firmware while improving timing predictability.
