WIZnet Success Stroies : MikroE ETH WIZ CLICK

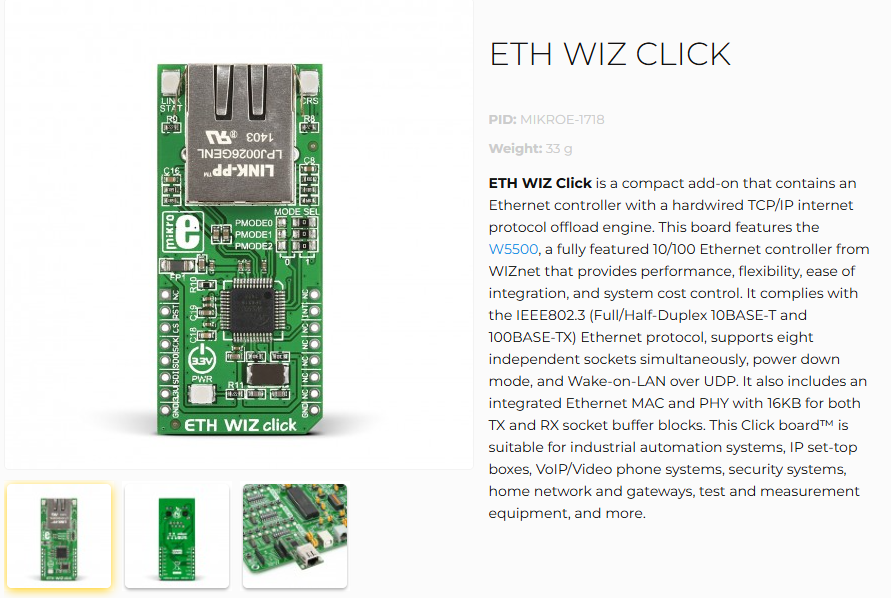

MikroE’s ETH WIZ CLICK is a module developed to enable the use of the W5500 chip on the mikroBUS platform.
MikroE
Product Used : W5500
Industry : Industrial Automation
ETH WIZ Click – The Fastest Way to Add WIZnet Ethernet
1. Overview
Adding Ethernet connectivity quickly and reliably to embedded systems remains a key challenge. For MCU-based projects in particular, hardware design, TCP/IP stack implementation, and driver porting often consume significant time and resources.

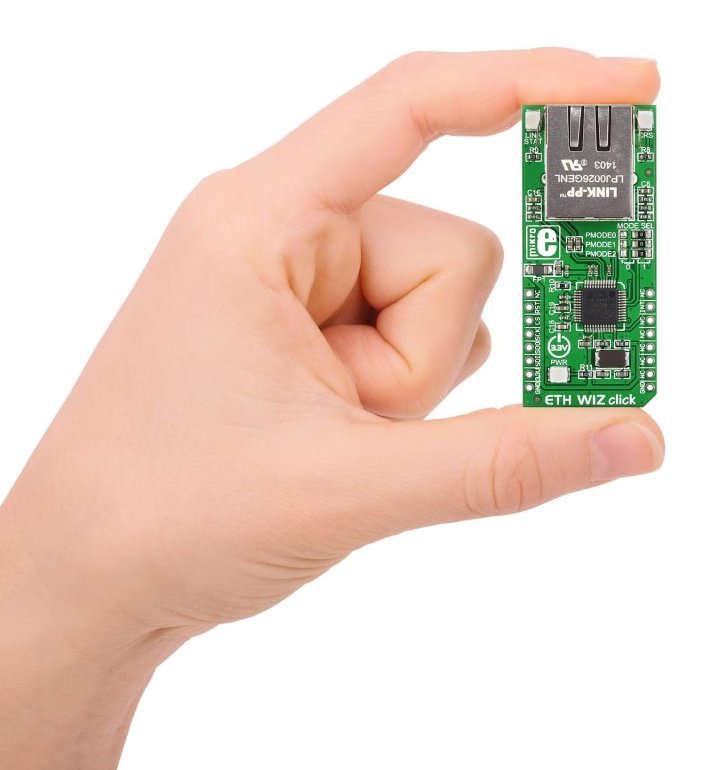

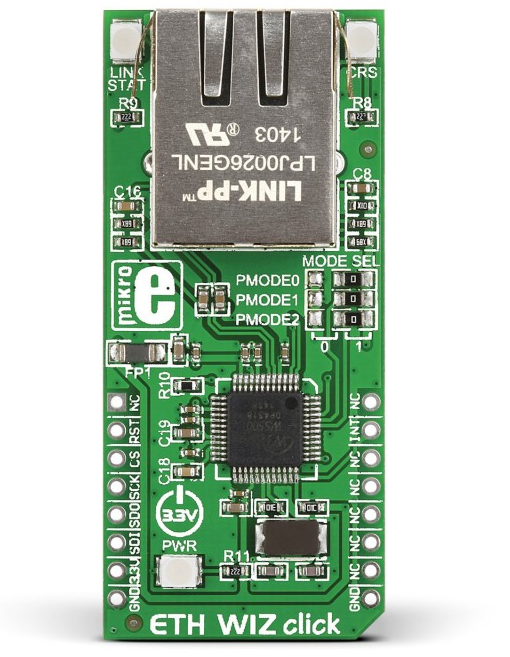

ETH WIZ Click is a Click board™ by MikroElektronika (MikroE) that combines the WIZnet Ethernet chip with a standardized hardware interface, enabling developers to add Ethernet functionality easily and efficiently.
This article introduces the architecture, key features, and suitable use cases of ETH WIZ Click.
2. What Is ETH WIZ Click?
ETH WIZ Click is a Click board™ based on WIZnet’s hardware TCP/IP offload Ethernet controller.
SPI interface-based communication
Built-in hardware TCP/IP stack
Full compatibility with the MikroE Click ecosystem
With this approach, developers can focus on application logic instead of network protocol implementation.

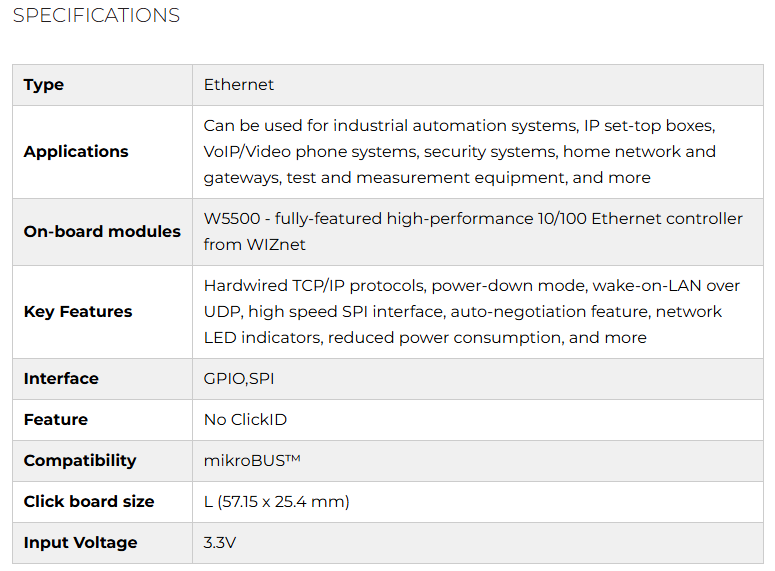

3. Key Components and Features
3.1 WIZnet Ethernet Chip
ETH WIZ Click integrates a WIZnet Ethernet controller, offering the following advantages:
Hardware handling of major protocols such as TCP, UDP, ICMP, and ARP
Reduced MCU workload
Stable and predictable network communication

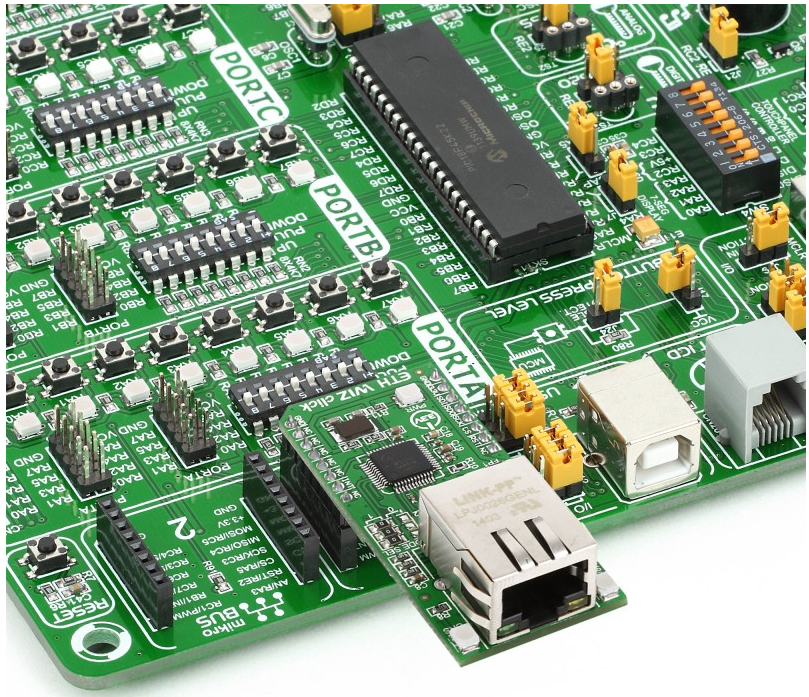

3.2 Click board™ Standard Form Factor
By following the MikroE Click board™ standard:
Immediate compatibility with a wide range of MikroE development boards
MCU-independent usage across different architectures
Rapid prototyping and evaluation
3.3 Rich Software Support
mikroSDK driver support
Quick testing with ready-to-use example code
Compatibility with various MCU families (ARM, PIC, AVR, etc.)
4. Application Scenarios
ETH WIZ Click is well suited for the following applications:
Ethernet connectivity for industrial sensors and controllers
Network-enabling existing serial or standalone devices
IoT gateways and data loggers
Education and Proof-of-Concept (PoC) projects
It is especially beneficial for developers with limited Ethernet experience or projects with tight development schedules.
5. Advantages of WIZnet-Based Solutions
The core strength of ETH WIZ Click lies in WIZnet’s hardware TCP/IP technology:
Predictable performance compared to software-based stacks
Minimal MCU resource usage
Proven stability in real-world and industrial deployments
These benefits are critical for industrial environments, commercial products, and systems requiring long-term operation.
6. Conclusion
ETH WIZ Click is a practical solution for adding Ethernet functionality to MCU-based projects with minimal effort.
By leveraging WIZnet’s proven hardware TCP/IP technology and the MikroE Click ecosystem, developers can build products faster and with greater reliability.
If you need Ethernet connectivity quickly, ETH WIZ Click is a highly realistic and effective choice.
