W5500 Ethernet Adapter for GameCube: "ETH2SP1"
Laser Bear's ETH2SP1 uses WIZnet W5500 for superior GameCube networking speed, outperforming legacy ENC28J60 chips.
WIZnet - W5500
x 1
The cover image of this article was generated by Gemini.
This article introduces the Ethernet adapter for the Nintendo GameCube released by US retro hardware manufacturer Laser Bear Industries. This product adopts the WIZnet W5500 as its core chip and highlights its differentiated performance compared to existing low-cost products as a key feature.
1. Product Overview
Product Name: GameCube ETH2SP1 Ethernet Adapter
Manufacturer/Seller: Laser Bear Industries
Core Component: WIZnet W5500
Usage: Connects to the GameCube Serial Port 2 (SP2) to enable network functions (game image loading, multiplayer, etc.)
2. Background: The GameCube and the Need for Networking
Before diving into the product, let's explore the Nintendo GameCube and the role of an Ethernet adapter.
2.1. What is the Nintendo GameCube?
Released by Nintendo in 2001, the GameCube is a sixth-generation home video game console. It is characterized by its unique cube-shaped design and the use of 8cm Mini DVDs as media. Having birthed numerous masterpieces such as The Legend of Zelda: The Wind Waker and Super Smash Bros. Melee, it remains beloved by retro gamers worldwide to this day.
2.2. Why is an Ethernet Adapter Needed Now?
To keep hardware that is over 20 years old in active use, a "network connection" is essential.
- Solving Optical Drive Aging: The GameCube's disc reading mechanism (lens) is prone to failure over time. An Ethernet adapter allows you to load and play game files (ISOs) stored on a PC or NAS in real-time over the network, drastically extending the hardware's lifespan by bypassing the need for physical discs.
- Replacing Original Parts: The original "Broadband Adapter (BBA)" released by Nintendo is now extremely rare and expensive. The ETH2SP1 perfectly replaces this component using modern technology.
- Online Multiplayer: Players can revisit classic online-supported titles through private servers.
3. Key Features: Manufacturer's Reason for Choosing W5500
In the product description, the manufacturer explicitly states the reason for choosing the WIZnet W5500 over the competitor chip (ENC28J60):
"Built on the Wiznet W5500 module, our adapter supports higher interface speeds than the ENC28J60 modules typically found in other third-party adapters."
Through this statement, the manufacturer explains the performance advantage of the W5500 compared to competing products as a major feature of the device.
4. Technical Analysis: W5500 vs. ENC28J60 Spec Comparison
To verify the "higher interface speeds" mentioned by the manufacturer, the hardware specifications of the two chipsets were compared.
[Table 1: Chipset Performance Comparison (Based on Datasheet)]
| Category | ENC28J60 (Legacy/Low-cost) | W5500 (Featured in Product) |
|---|---|---|
| TCP/IP Processing | Software (Burden on Host CPU) | Hardware Offload |
| SPI Speed (Max) | 20 MHz | 80 MHz |
| Buffer Memory | 8 KB | 32 KB |
| PHY Speed | 10 Mbps | 100 Mbps |
As shown, the W5500 possesses superior specifications in terms of interface speed (SPI), buffer size, and processing method (Offload), making it suitable for handling high-specification game data.
5. Other Features
① Seamless Integrated Design
The adapter is designed to fit perfectly into the Serial Port 2 (SP2) expansion bay on the bottom of the GameCube console. It uses a custom 3D-printed housing to ensure it blends in without protrusion and minimizes cable interference.
② Swiss Firmware Compatibility
The device is instantly recognized without separate driver installation within the Swiss homebrew utility environment. Users can utilize this to load games stored on a PC over the network or backup data.
6. Summary
The Laser Bear ETH2SP1 leverages the high-speed communication performance of the WIZnet W5500 to overcome the performance limitations of existing ENC28J60-based adapters. It is a notable commercial case where the manufacturer directly cites the technical superiority of the W5500 as a product advantage.
ETH2SP1: W5500 Ethernet Adapter for GameCube
- Q1. What exactly is the ETH2SP1?
A. It is a network adapter for the Nintendo GameCube that utilizes WIZnet's W5500 Ethernet chip. Unlike standard broadband adapters, this device connects to the console's Serial Port 1 (SP1) on the bottom of the unit to provide stable network connectivity.
- Q2. Can I use the internet immediately on a stock GameCube?
A. No, this hardware is designed to function primarily with the Swiss homebrew utility. It utilizes Swiss's "Broadband Adapter (BBA) emulation" feature, which allows you to load game backups over the network or manage files remotely. It does not enable web browsing on the original dashboard.
- Q3. Is it compatible with all GameCube models?
A. No, you must have a GameCube model equipped with Serial Port 1 (SP1). This port is typically found on the earlier DOL-001 models. Later revisions (such as the DOL-101) removed this port to cut costs, so please check the bottom of your console before attempting to use this adapter.
- Q4. Can I use this alongside an SD2SP2 adapter?
A. Yes, absolutely! Since the ETH2SP1 connects to Serial Port 1 (SP1), it leaves Serial Port 2 (SP2) completely free. This allows you to use an SD2SP2 adapter for local storage and the ETH2SP1 for networking simultaneously without any interference.

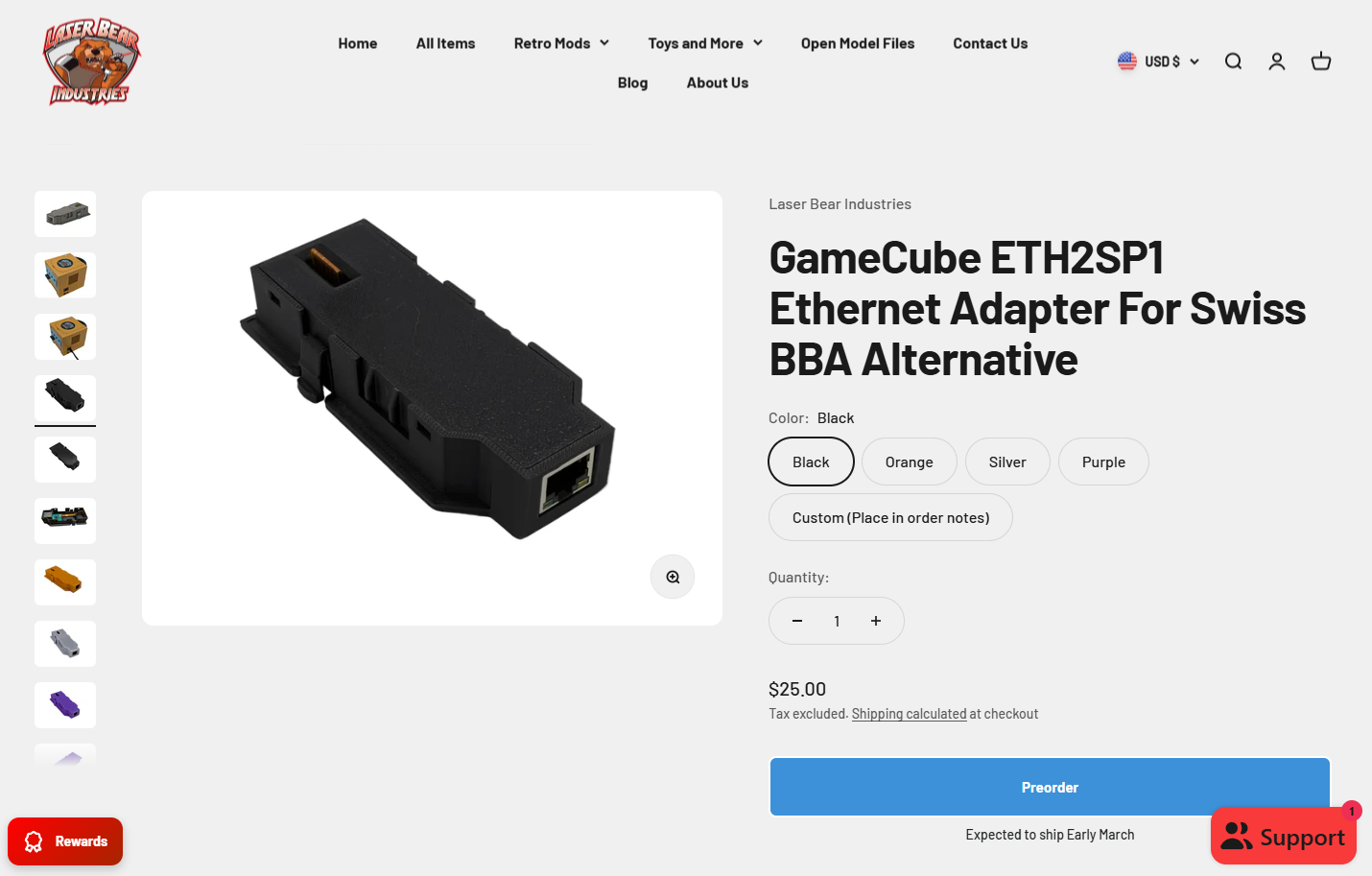

Source: https://www.laserbear.net/products/gamecube-eth2sp1-ethernet-adapter-for-swiss-bba-alternative?dt_id=584523%3Bap%3A1894966
