Bringing an MSX onto the Network

GR8NET is a commercial expansion cartridge developed by Eugeny Brychkov and offered through AGE Labs for MSX-compatible computers. The cartridge combines W5100 Ethernet, network-aware BASIC commands, memory expansion and programmable media functions. A vintage computer can retrieve files, connect to a terminal service or run compatible network applications while retaining its original keyboard, display and software environment.

The 329-page GR8NET manual documents the hardware and programming interface, with copyright dates spanning 2015–2023. The vendor still advertises adapters as available on September 7, 2026, through a direct email enquiry. GR8NET therefore has two useful identities: an obtainable MSX accessory and a detailed example of integrating hardware networking into a constrained host system.

Generated application-context illustration: Ethernet brings network services to a vintage computer. Official GR8NET product photographs are in the linked manual, pages 30–36.

An MSX cartridge occupies an expansion slot that exposes the computer bus. GR8NET uses that connection to make its firmware and devices accessible to the host. A memory mapper selects which part of the cartridge appears in the address space at a given time, allowing the machine to work with more storage and functions than one fixed memory window could expose.

From a BASIC Command to Ethernet Data

GR8NET provides a 10/100 Mbit/s RJ45 Ethernet connection and IPv4 networking. The documented software supports TCP, UDP and raw IP access, plus higher-level HTTP functions, Dynamic Host Configuration Protocol for automatic configuration and Domain Name System lookup for resolving server names. The Ethernet link rate describes the network port; application performance also depends on the MSX host and the selected program.

A file retrieval begins in an MSX application or a GR8NET BASIC command. Cartridge firmware prepares the connection, exchanges data through the W5100 and returns the received bytes to the program, memory buffer or file operation. The built-in browser presents web-server directories, and the binary loader fetches programs or data over HTTP. These are practical ways to move software onto the computer without repeatedly transferring removable media.

The manual lists three user-programmable sockets shared by BASIC file I/O and TCP/IP UNAPI. A socket is the endpoint an application uses for a network conversation. Opening one consumes a shared resource, so a program should close its sockets before exiting and leave capacity for the next application.

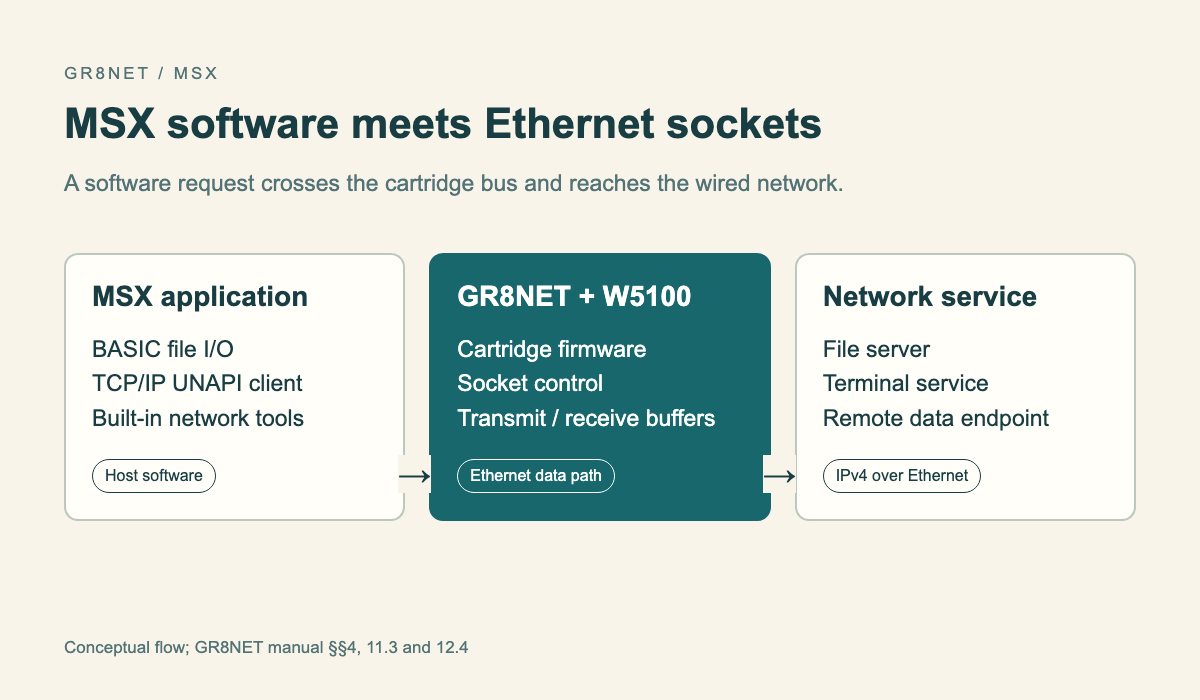

Authored system diagram: the W5100 carries network traffic; the MSX and GR8NET firmware decide how the application uses it.

GR8NET also supports a network-backed disk through its GR8cloud feature and Nextor storage integration. Nextor is the disk operating-system extension that presents supported storage devices to MSX software. The manual recommends local SD storage for data-intensive work because remote-volume access adds network and filesystem overhead. GR8cloud is useful context for the design, while server access and account arrangements require their own setup.

The Specific Role of W5100

The WIZnet role is unusually concrete in the programmer documentation. On page 204, the cartridge map assigns logical page C0 to W5100 registers, C2 to transmit buffers and C3 to receive buffers. GR8NET firmware can expose those regions through the cartridge memory system, connecting the MSX address space to network control and packet data.

The same table names an Altera Cyclone III FPGA, a field-programmable gate array whose hardware behavior is defined by a configuration image. GR8NET uses this programmable engine for functions including mapping and media buffers. The W5100 supplies the Ethernet network path and hardware TCP/IP functions; the FPGA, firmware, memory and audio circuits provide the rest of the cartridge experience.

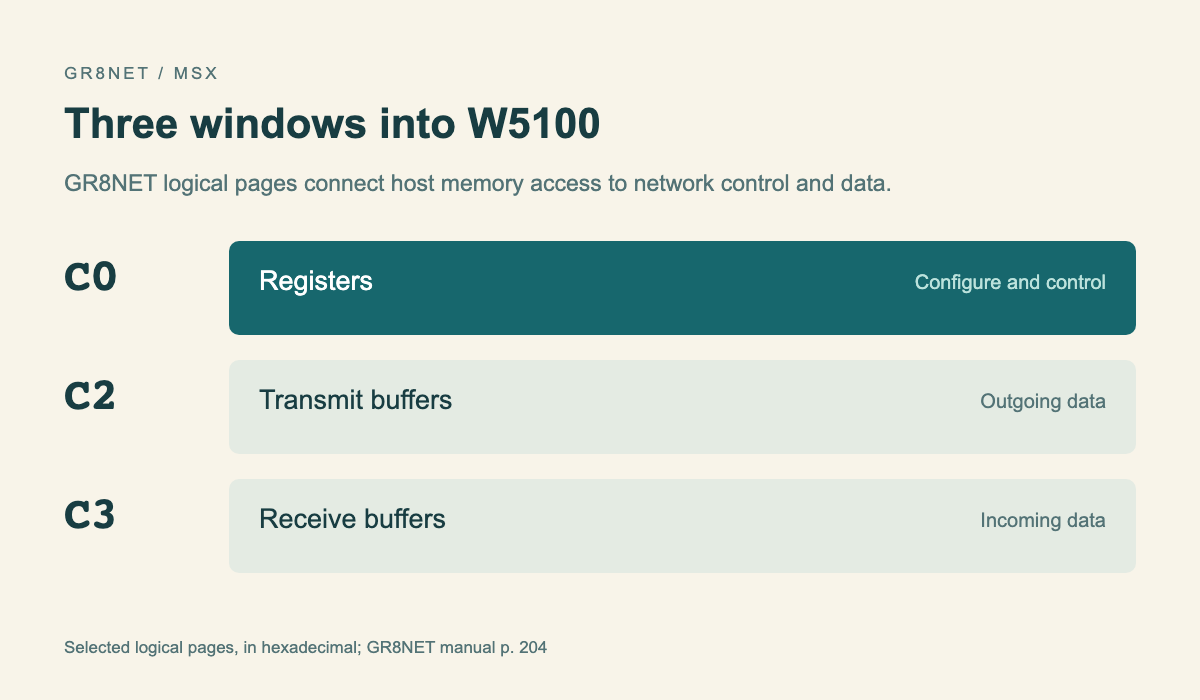

Authored memory-map excerpt based on manual page 204. C0, C2 and C3 identify separate control and data regions.

The manual also documents prefetch access to W5100 buffers. That detail explains how networking participates in media delivery: received bytes can feed the cartridge data-handling machinery, which then supports the selected playback path. Audio generation, decoding and output still belong to their respective cartridge functions and accessories.

For developers, the reusable idea is the boundary between a small host and dedicated network hardware. Application code works with commands, files or an API, while firmware translates those requests into socket operations and buffer transfers. GR8NET makes that boundary visible through both high-level commands and a published register-level map.

One API, Several MSX Applications

GR8NET implements version 1.0 of TCP/IP UNAPI, the MSX convention for discovering and using compatible networking interfaces. A shared application programming interface lets software target a defined set of network operations instead of hard-coding every cartridge design. The manual dates the initial implementation to September 2017 and records a substantial reduction in limitations in May 2019.

The practical rules matter. GR8NET network calls must run without concurrent calls or calls from interrupt routines, and data buffers must occupy suitable host memory banks. Page 286 also explains that the network-state function always reports Open because the implementation cannot obtain physical-link state from the W5100. An application needs actual communication results to determine whether its peer is reachable.

MSXHub supplies a useful downstream example: its client downloads and installs MSX software using a compatible network interface. During the August 2018 beta discussion, users encountered incorrect GR8NET identification text. Participants reported a firmware fix on August 21 and successful operation afterward, illustrating how application interoperability improved through a concrete feedback cycle.

A different route appears in Ricardo Bittencourt's MSX JSON Parser. The small library adds JSON parsing to BASIC, allowing a program to interpret structured data after networking has delivered it. The publisher of Clube MSX issue 2, released in 2018, explicitly lists an article about home automation with GR8NET and MSX JSON. That historical application extends the cartridge story beyond file downloads and games.

Choosing Hardware and Firmware Together

The manual describes mono, stereo and audiophile GR8NET hardware. All three share the same core and accept the same firmware, while audio channels and analog circuitry distinguish the versions. The audiophile revision adds changes such as revised audio circuitry, output adjustment and power monitoring. These are documented family differences; the vendor enquiry should establish which hardware revision is currently supplied.

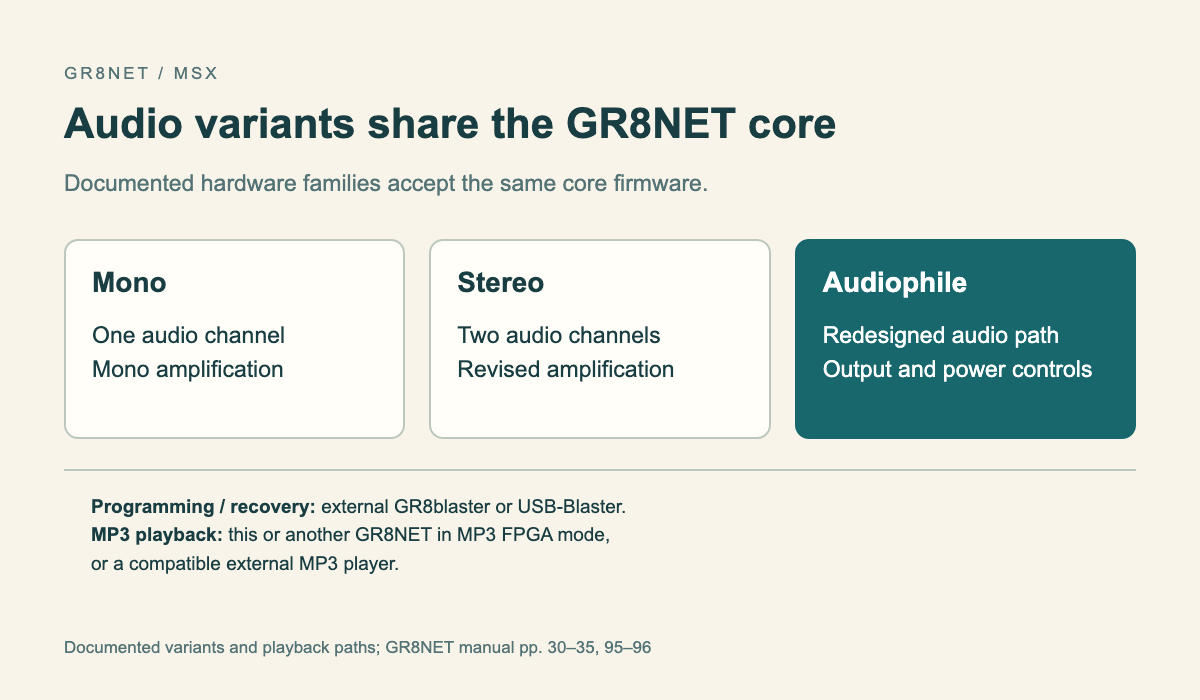

Authored family guide: the audio variants share a core; MP3 playback can use a GR8NET MP3 FPGA image or a compatible external player.

Firmware choice is another axis. The official download directory lists regular, MP3, OPL4 and MegaROM FPGA images, alongside the separate ROM BIOS update. On September 7, 2026, the MP3 image carries a March 30, 2026 file date, the regular image a November 24, 2023 date and the BIOS update a December 17, 2023 date. File dates identify the published artifacts, so owners should follow the manual and vendor guidance when matching images to their installation.

Recovery is part of the surrounding system. The official GR8blaster knowledge-base article describes a programmer driven from MSX joystick ports, allowing recovery of FPGA configuration without relying on a modern computer with a parallel port. GR8blaster is an external programming tool. For MP3 playback, manual pages 95–96 describe alternative output paths: the current GR8NET configured with the MP3 FPGA image, another GR8NET in MP3 mode, or a compatible external MP3 cartridge. An external MP3 cartridge is therefore optional for this function.

Vendor, Availability, and Price

AGE Labs offers GR8NET through the GR8BIT website. Developer Eugeny Brychkov is identified with Russia in the official GR8blaster author record. On September 7, 2026, the vendor homepage states, “GR8NET adapters are available,” and directs enquiries to info@gr8bit.ru. The requested enquiry includes location, MSX background and the computers owned, giving the vendor context for the proposed installation.

The current buying route is direct vendor enquiry, with price on request. The availability notice does not state a public price, currency, tax treatment, shipping charge or delivery time. Buyers should obtain the exact variant, included accessories, total delivered price and applicable warranty or return terms in the quotation.

GR8NET suits an MSX owner who wants networking integrated with the cartridge software environment, or a developer exploring a documented bridge between a vintage bus and Ethernet sockets. Installation requires a compatible machine, and the manual explicitly prohibits inserting or removing the cartridge while power is on. Network storage traffic is unencrypted, so the remote-volume feature should carry data appropriate to that limitation.

Related WIZnet Maker Reading

For another vintage-computer application, sending and receiving Apple IIGS screen data through W5100 pairs assembly code with Python tools and an Uthernet II card. The comparison moves from the broad GR8NET cartridge environment to one focused transfer task. Both examples show how software on an older host can use W5100 networking for useful data exchange.

FAQ

Q. What does GR8NET add to an MSX computer? GR8NET adds wired networking through W5100, BASIC networking commands and TCP/IP UNAPI support, alongside memory and media functions provided by the complete cartridge.

Q. Is W5100 an optional GR8NET add-on? The manual places W5100 inside the GR8NET architecture and documents its register and buffer pages. External programmers are separate accessories; MP3 playback can use the GR8NET MP3 FPGA image or a compatible external player.

Q. How many network sockets can applications use? GR8NET documents three user-programmable sockets shared between BASIC file I/O and TCP/IP UNAPI. Applications should release sockets when finished.

Q. Can GR8NET run every modern web service directly? GR8NET documents HTTP networking and does not provide general HTTPS capability. Applications targeting encrypted web services need an appropriate intermediary or another supported arrangement.

Q. Where can GR8NET be purchased? The official GR8BIT homepage advertises availability and directs buyers to info@gr8bit.ru. Request the current hardware revision, price and delivery terms from the vendor.
