DEYE GE-F128-BC-2-A3 is a commercial and industrial LiFePO4 energy-storage cabinet. Its user manual exposes W5500 through troubleshooting: F055 is W5500 SPI communication failure, while the system specification lists TCP/IP and Modbus communication support and the PDU interface table includes an optional RJ45 Ethernet port.

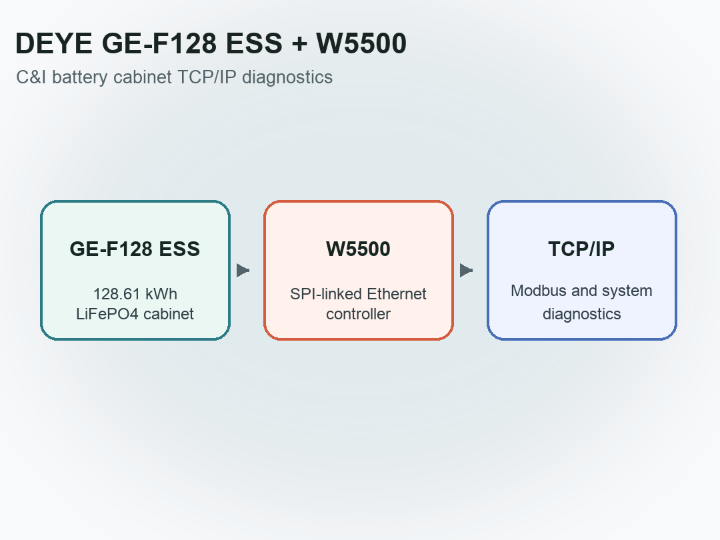

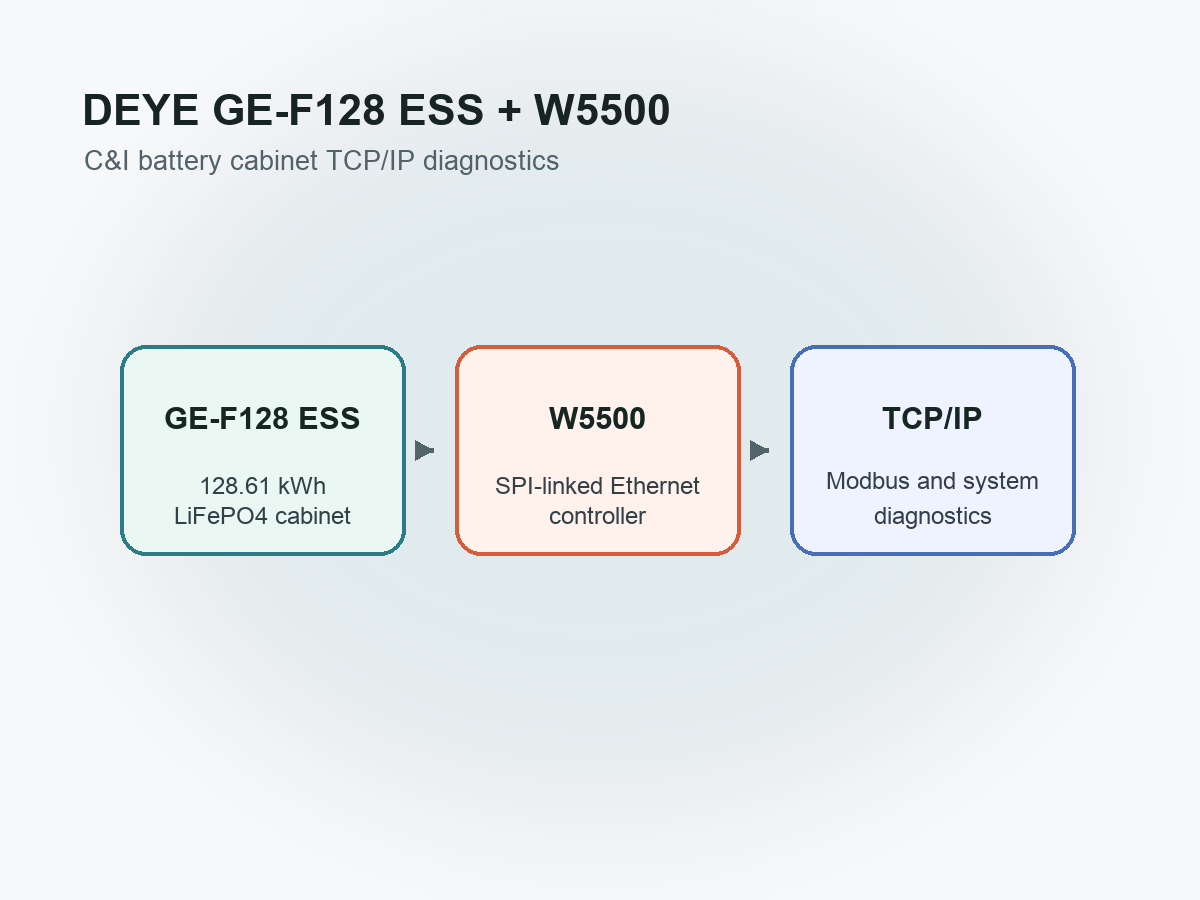

Generated compact overview: the GE-F128 ESS cabinet exposes W5500-backed TCP/IP communication as part of its energy-system control path.

Deye ESS is part of the Deye energy-storage product ecosystem, with official download pages listing the GE-F128, GE-F240, and GE-F256 product family. The official download center lists the GE-F128-BC-2-A3 user manual used here, so this post focuses on the GE-F128 manual evidence rather than reseller descriptions.

System Configuration

The manual describes a 128.61 kWh LiFePO4 system using 314 Ah, 51.2 V modules in an eight-module 409.6 V cabinet. It lists CAN and RS485 communication ports, CAN2.0, Modbus, and TCP/IP protocols, IP55 protection, C4-M corrosion level, smart air cooling, and SUN-series inverter pairing for commercial and industrial energy-storage deployments.

System Architecture and Data Flow

The public manual does not show firmware or PCB details, but it gives enough system-level evidence to map the communication path. The battery cabinet contains BMU/BMS/PDU electronics, the PDU exposes communication interfaces including optional Ethernet, and the troubleshooting appendix separates TCP connection failure from W5500 SPI communication failure. That points to W5500 as the Ethernet controller connected by SPI inside the communication subsystem.

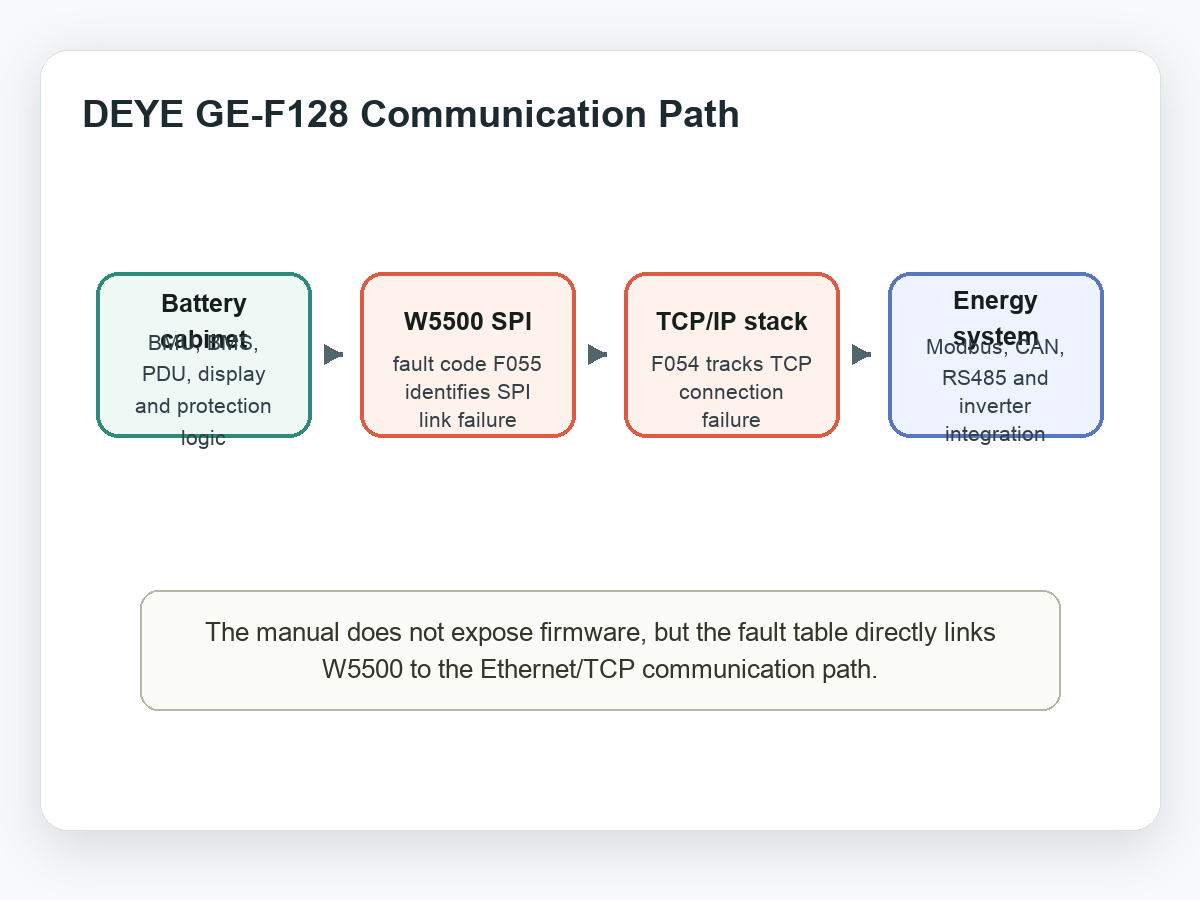

Generated technical diagram: the W5500 SPI path links battery cabinet control electronics to TCP/IP diagnostics and Modbus communication.

Manual Evidence for W5500

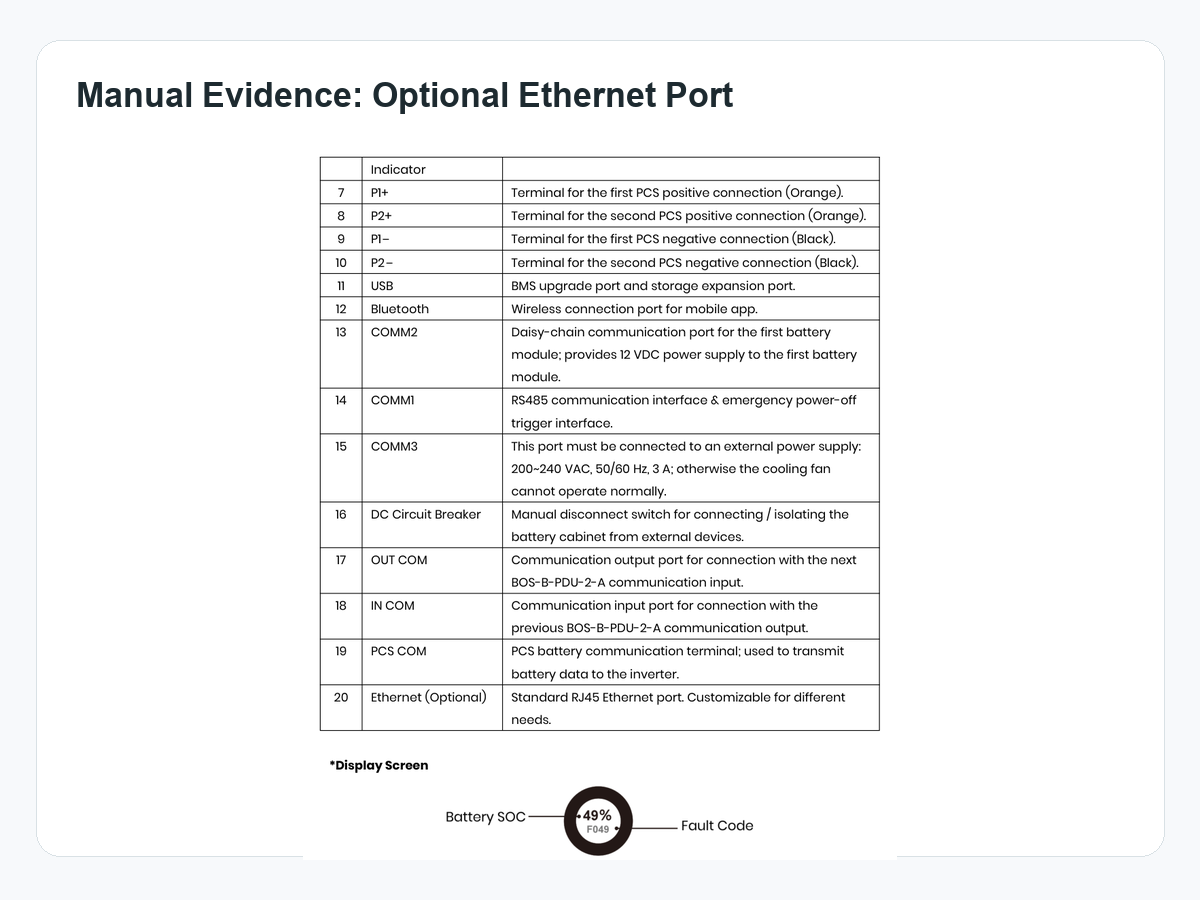

Manual excerpt: the PDU interface list includes an optional standard RJ45 Ethernet port.

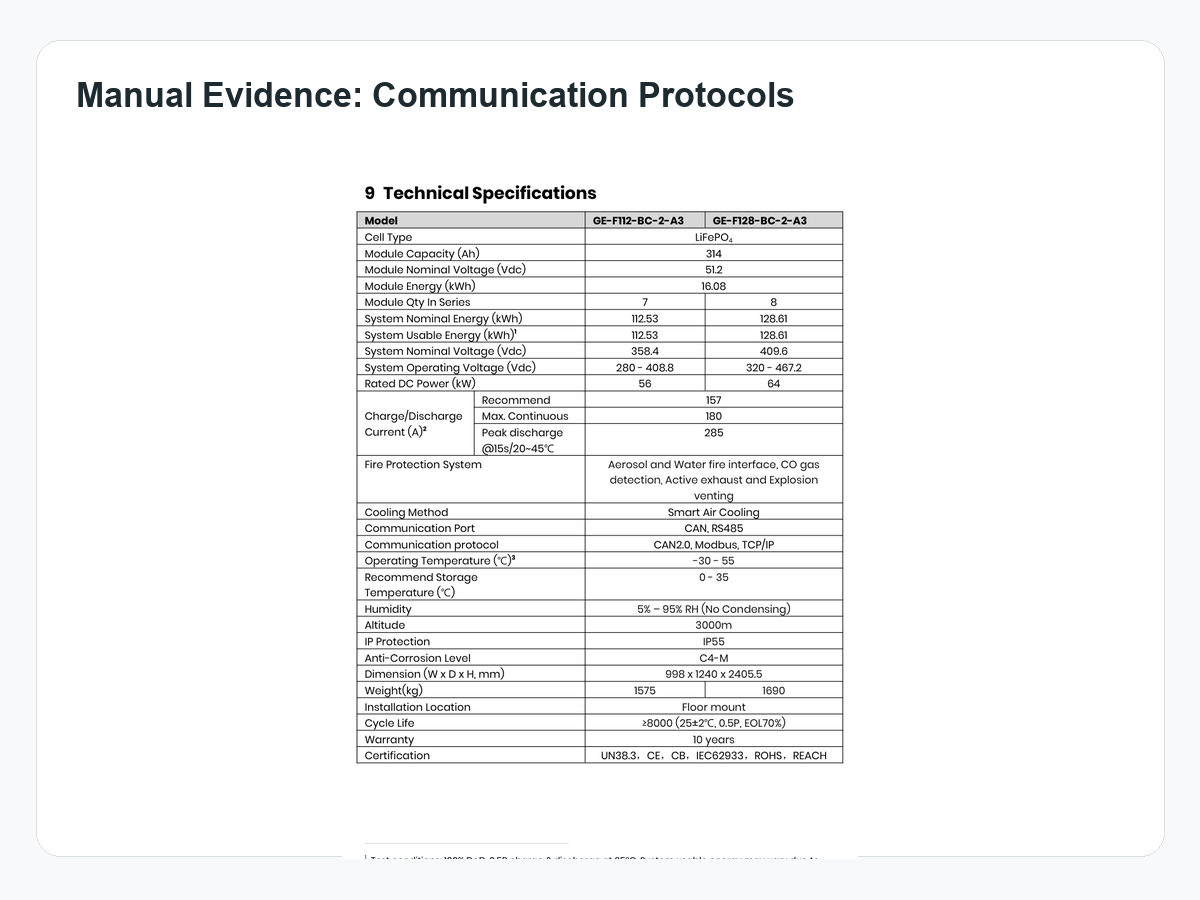

Manual excerpt: the system specification lists CAN2.0, Modbus, and TCP/IP communication protocol support.

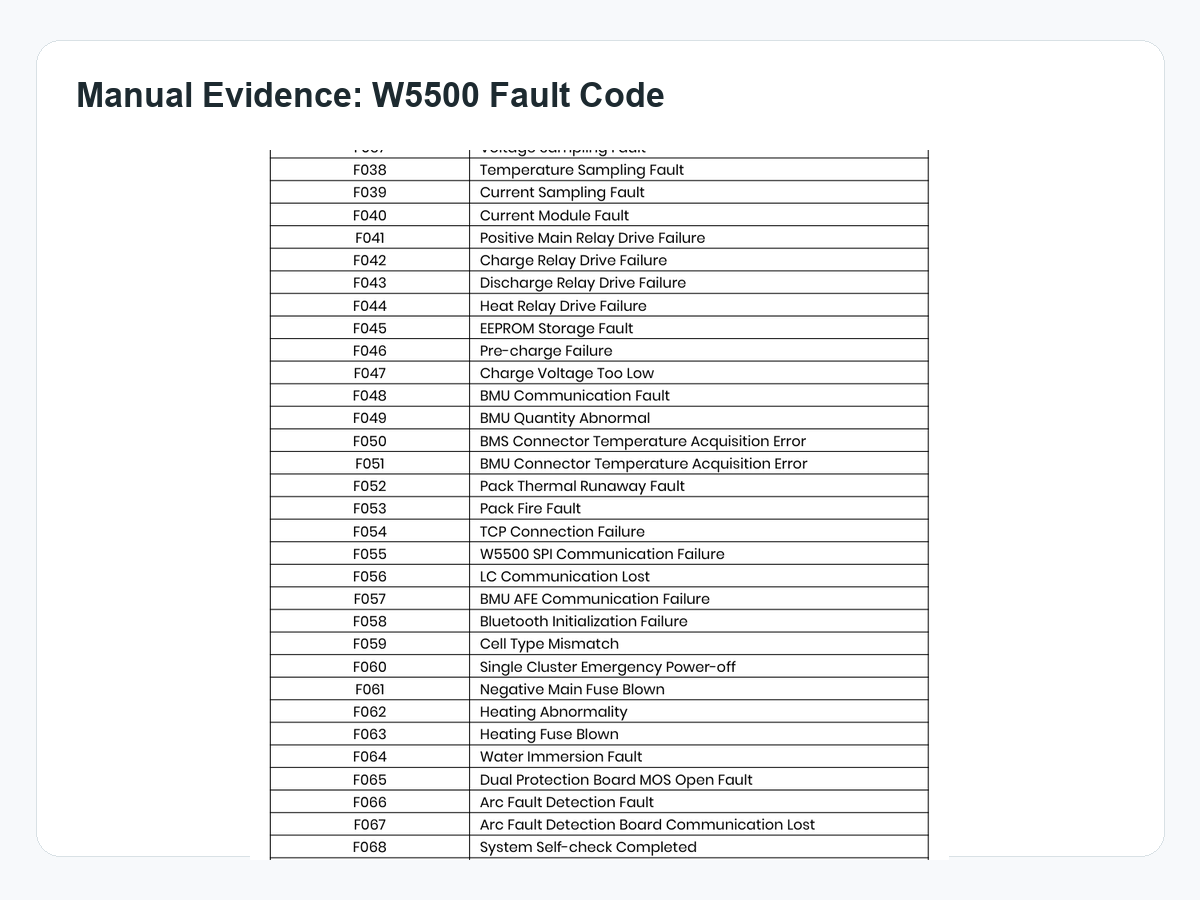

Manual excerpt: the troubleshooting appendix identifies F055 as W5500 SPI communication failure.

Role of the WIZnet Chip

W5500 appears as the Ethernet/TCP controller in the fault model. F054 covers TCP connection failure, while F055 specifically identifies W5500 SPI communication failure. This distinction is useful because it separates network-session problems from the local SPI link to the Ethernet controller. For a large ESS cabinet, that gives service technicians clearer diagnostics for remote monitoring and Modbus/TCP connectivity.

Product Family and Availability

GE-F128 belongs to Deye's GE-F128, GE-F240, and GE-F256 family in the official Deye ESS product/download structure. It is a high-voltage C&I cabinet rather than the older BOS-B modular rack product already present on Maker. Public pricing is not listed in the manual or download center; procurement is normally project, region, installer, or distributor dependent.

Where It Fits

This case fits energy storage, inverter integration, commercial battery rooms, microgrid monitoring, and service diagnostics. It is valuable for WIZnet because it shows W5500 not only in PLCs or small controllers, but also inside an ESS product where TCP/IP diagnostics and Modbus communication are part of safety-critical energy infrastructure. The limit is that W5500 is confirmed by the manual fault code, not by a published schematic.

Related WIZnet Maker Projects

• Lithium-ion Rechargeable Battery System BOS-B is related because it is another Deye energy-storage product where W5500-based TCP/IP communication is discussed.
• How to Connect an EM540 Energy Meter to VenusOS Cerbo GX with W5500 is related through energy monitoring and W5500 Ethernet connectivity.
• EIOT.Energy EMS Dev Kit is related as an energy-management development kit using W5500 in the same broad EMS and monitoring domain.

FAQ

Q. What proves that DEYE GE-F128 uses W5500? The troubleshooting appendix lists F055 as W5500 SPI communication failure. The same manual also lists TCP/IP and Modbus support and an optional RJ45 Ethernet port.

Q. Is GE-F128 the same as BOS-B? No. Both are Deye energy-storage products, but GE-F128 is part of the GE-F128/GE-F240/GE-F256 C&I cabinet family, while BOS-B is a different modular battery system already covered on Maker.

Q. What does W5500 do in this ESS? The manual does not show the PCB, but the fault model indicates W5500 is tied to the Ethernet/TCP communication subsystem through an SPI link.

Q. Why is F054 different from F055? F054 reports TCP connection failure, while F055 reports W5500 SPI communication failure. That separates network-level problems from the local controller-to-W5500 link.

Q. Is price available? No stable public price is listed in the manual or official download center. ESS projects are typically quoted through installers or distributors.

The source manual, official vendor pages, WIZnet W5500 product page, and related Maker references are attached in the Documents panel.
