1. Title

How to Build a Multi-Use MicroPython Ethernet Node with WIZnet W5500 on ESP32?

2. Summary

This article explains a MicroPython Ethernet node architecture using an ESP32-class MCU and the WIZnet W5500, with broad coverage across network stack behavior, hardware wiring, register visibility, firmware structure, and performance constraints. The target use cases include Industrial IoT, Robotics, Education, and Maker projects. The W5500 provides the wired Ethernet boundary: the MCU runs the MicroPython application, while W5500 handles the hardwired TCP/IP stack, 10/100 Ethernet MAC/PHY, socket state, and internal Tx/Rx buffering. The original CSDN Wenku answer page could not be directly verified, so this article does not claim project-specific code from that page and instead uses accessible related CSDN material plus official WIZnet and MicroPython references.

3. What the Project Does

The related accessible CSDN material describes a MicroPython W5500 workflow around SPI hardware adaptation, network initialization, DHCP/static IP handling, and UDP communication. It frames W5500 as an Ethernet controller with a hardware TCP/IP stack that reduces MCU-side network processing load, and it discusses driver files for register mapping, SPI read/write, socket management, DHCP, and network-interface abstraction. Because this is related material rather than the exact Wenku source, it should be treated as a verified reference pattern, not as code proven to come from the user-provided Wenku page.

In a practical ESP32 + W5500 MicroPython node, the MCU side handles application logic: reading sensors, controlling motors or relays, formatting telemetry, serving local commands, and keeping device state. The W5500 side handles the Ethernet-facing workload: link, MAC/PHY operation, TCP/UDP protocol behavior, socket state, and packet buffering. This division is useful across all four selected use cases. Industrial IoT benefits from wired determinism and field diagnostics. Robotics benefits from predictable local control links. Education benefits from visible layers: SPI, registers, sockets, and payloads. Maker projects benefit from a simpler route to Ethernet without implementing a full software TCP/IP stack.

The data path is direct. Local inputs enter the ESP32, the firmware converts them into a payload, and the W5500 sends the data over Ethernet using socket operations. In the reverse direction, commands arrive through a TCP or UDP socket, the W5500 stores received bytes in its internal buffers, and MicroPython reads and interprets them before changing device behavior.

4. Where WIZnet Fits

The exact WIZnet product in this architecture is W5500. WIZnet describes W5500 as a hardwired TCP/IP stack Internet controller that connects to an external MCU through SPI up to 80 MHz. It integrates a 10/100 Ethernet MAC and PHY, supports protocols including TCP, UDP, ICMP, IPv4, ARP, IGMP, and PPPoE, provides eight independent sockets, and includes 32 KB internal memory for Tx/Rx buffers.

From a network-stack perspective, W5500 is the boundary between the MicroPython application and the wired Ethernet network. The ESP32 does not need to implement the entire TCP/IP stack in Python. Instead, it uses SPI commands and socket-level operations while W5500 maintains the low-level Ethernet and TCP/UDP behavior. This reduces firmware complexity and makes the network path easier to reason about in constrained embedded systems.

From a hardware perspective, W5500 requires SPI plus chip select and reset. MicroPython’s WIZNET5K documentation describes the interface as an SPI object with CS and reset pins, and notes that the module needs MOSI, MISO, SCLK, nSS, and nRESET connections. It also states that other SPI buses and pins can be used depending on the board.

From a register and diagnostics perspective, W5500 is useful because link status, socket state, IP configuration, buffer state, and chip identity can be inspected through driver logic or register dumps. MicroPython’s WIZNET5K class includes a regs() method for dumping WIZnet5x00 registers, which is useful when debugging bring-up, link failure, or socket-state issues.

5. Implementation Notes

Because the exact Wenku page could not be directly verified, this section avoids claiming source-specific implementation files or code snippets from that page. The correct architecture-level MicroPython pattern is to initialize W5500 through the network driver, confirm IP configuration, then use sockets normally.

Official MicroPython WIZNET5K usage pattern:

import network

nic = network.WIZNET5K(
    pyb.SPI(1),
    pyb.Pin.board.X5,
    pyb.Pin.board.X4
)

print(nic.ipconfig("addr4"))

# now use socket as usual

This pattern matters because it defines the firmware boundary. The SPI bus, chip-select pin, and reset pin bring up the W5500. After that, the application should not act as a raw Ethernet driver. It should use the network interface and socket API, then add application-level timeouts, reconnect behavior, and diagnostics around it. MicroPython documents the constructor as network.WIZNET5K(spi, pin_cs, pin_rst), where spi carries MOSI/MISO/SCLK, pin_cs is connected to nSS, and pin_rst is connected to nRESET.

For firmware organization, split the program into clear layers:

• Board layer: SPI pins, CS, reset, optional interrupt pin, and link LED handling.
• Network layer: W5500 initialization, DHCP/static IP policy, socket allocation, link checks, and register dump support.
• Protocol layer: UDP telemetry, TCP command server, HTTP client, MQTT client, or local binary protocol.
• Application layer: sensor reading, robot command handling, industrial I/O, teaching examples, or maker automation logic.
• Recovery layer: socket cleanup, W5500 reset, watchdog handling, and fallback network configuration.

For performance, do not focus only on SPI clock. W5500 supports high-speed SPI, but useful embedded performance also depends on payload size, polling frequency, interrupt usage, buffer allocation, blocking behavior, and socket cleanup. W5500 provides eight sockets and 32 KB Tx/Rx buffer memory, so the firmware should define how many sockets are allowed and how much traffic each function can generate.

6. Practical Tips / Pitfalls

• SPI wiring: Keep MOSI, MISO, SCLK, CS, and reset wiring short and stable. Use SPI Mode 0 or Mode 3 as supported by W5500, and confirm the board’s actual pin mapping before testing.
• Reset sequencing: Treat W5500 reset as part of the network recovery design. If the socket state becomes stale or the PHY link behaves unexpectedly, a controlled W5500 reset can be more useful than only restarting the Python script.
• DHCP/static IP policy: Industrial IoT often needs static IP or a fallback address. Maker and education demos may use DHCP first. Robotics may prefer fixed addressing for predictable controller-to-device communication.
• Register visibility: Use register dumps during bring-up. Chip version, PHY state, socket status, local IP, gateway, subnet, TX free size, and RX received size are more useful than a generic “network failed” print.
• Socket ownership: W5500 supports eight sockets, but that does not mean firmware should open sockets freely. Reserve sockets by role, such as telemetry, command server, diagnostics, and service mode.
• Buffer limits: The 32 KB internal Tx/Rx memory must be shared. Avoid large unbounded HTTP responses, oversized JSON, and blocking transfers unless the firmware chunks data deliberately.
• Performance testing: Test with the real workload. UDP telemetry, TCP command response, HTTP client upload, and MQTT keepalive all stress the network path differently.

7. FAQ

Why use WIZnet W5500 for this project?
W5500 is useful when an MCU project needs wired Ethernet with a hardwired TCP/IP stack and socket-oriented programming. It provides 10/100 Ethernet MAC/PHY, TCP/UDP protocol support, eight sockets, and internal Tx/Rx buffers, reducing the amount of network-stack work handled directly by MicroPython.

How does W5500 connect to the platform?
W5500 connects through SPI plus chip select and reset. MicroPython’s WIZNET5K constructor takes an SPI object, a CS pin, and a reset pin. The documented physical signals are MOSI, MISO, SCLK, nSS, and nRESET, with flexibility to use different SPI buses and pins depending on the board.

What role does W5500 play in this project?
W5500 is the network offload and Ethernet interface. The ESP32 runs MicroPython application logic, while W5500 handles Ethernet MAC/PHY operation, hardwired TCP/IP protocols, socket state, and packet buffering.

Can beginners follow it?
Yes. For education and maker use, the basic path is manageable: wire SPI, initialize W5500, confirm IP configuration, then use sockets. For Industrial IoT or robotics, beginners should add link checks, socket cleanup, watchdog handling, static IP fallback, and diagnostics before relying on the system in the field.

Why is this useful for multiple use cases?
The same architecture maps well to different project types. Industrial IoT can use it for telemetry and control. Robotics can use it for wired command links. Education can use it to teach SPI, registers, sockets, and protocol layering. Maker projects can use it for reliable wired Ethernet without building a full software network stack.

8. Source

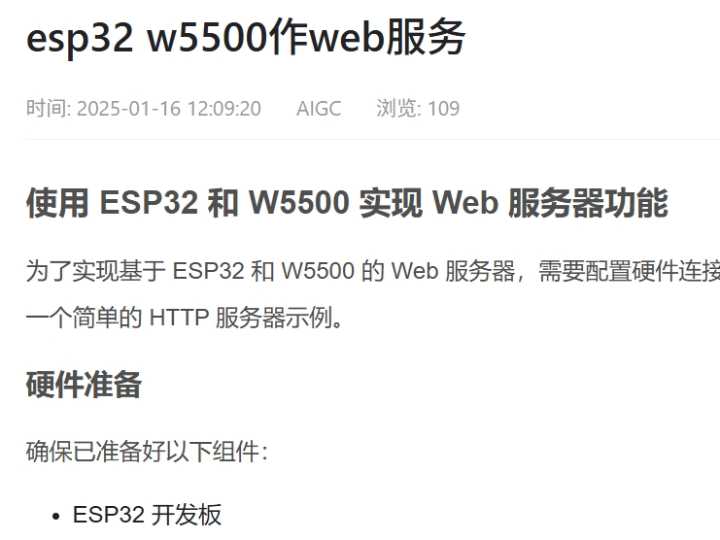

Original CSDN Wenku answer page:
https://wenku.csdn.net/answer/4x5xuv47bt
The page could not be directly verified through browsing. Therefore, this article does not claim any code, wiring table, register list, or project-specific implementation detail from that exact Wenku page.

Accessible related CSDN reference:
“MicroPython下W5500以太网驱动移植与UDP通信实战,” which discusses W5500 MicroPython driver migration, SPI adaptation, network initialization, DHCP/static IP handling, UDP communication, and driver layering. This is used only as related reference material, not as proof of the inaccessible Wenku page.

Official WIZnet W5500 documentation:
Used for W5500 hardwired TCP/IP stack, SPI up to 80 MHz, 10/100 Ethernet MAC/PHY, supported protocols, eight sockets, 32 KB internal Tx/Rx buffer memory, ioLibrary resources, and supported services.

Official MicroPython WIZNET5K documentation:
Used for the WIZNET5K constructor, SPI/CS/reset wiring model, socket usage pattern, ESP32 note, and register dump method.

Editorial workflow and source-handling rules followed the uploaded WIZnet UCC Curator Handover Notes.

9. Tags

WIZnet, W5500, ESP32, MicroPython, Ethernet, TCP/IP, SPI, Registers, Firmware, Performance, Industrial IoT, Robotics

1. 제목

ESP32에서 WIZnet W5500을 사용해 다목적 MicroPython Ethernet 노드를 구축하는 방법

2. 요약

이 글은 ESP32 계열 MCU와 WIZnet W5500을 사용한 MicroPython Ethernet 노드 architecture를 설명한다. Network stack 동작, hardware wiring, register visibility, firmware structure, performance constraint를 폭넓게 다룬다. 대상 use case는 Industrial IoT, Robotics, Education, Maker project이다. W5500은 wired Ethernet boundary 역할을 한다. MCU는 MicroPython application을 실행하고, W5500은 hardwired TCP/IP stack, 10/100 Ethernet MAC/PHY, socket state, internal Tx/Rx buffering을 처리한다. 원본 CSDN Wenku answer page는 직접 검증할 수 없었으므로, 이 글은 해당 page의 project-specific code를 주장하지 않고, 접근 가능한 관련 CSDN 자료와 공식 WIZnet 및 MicroPython reference를 기반으로 작성한다.

3. 프로젝트가 하는 일

접근 가능한 관련 CSDN 자료는 SPI hardware adaptation, network initialization, DHCP/static IP handling, UDP communication을 중심으로 MicroPython W5500 workflow를 설명한다. 또한 W5500을 MCU-side network processing load를 줄이는 hardware TCP/IP stack 기반 Ethernet controller로 다루며, register mapping, SPI read/write, socket management, DHCP, network-interface abstraction을 위한 driver file 구성을 설명한다. 단, 이는 정확한 Wenku source가 아니라 관련 자료이므로, user가 제공한 Wenku page에서 나온 code로 증명된 것이 아니라 verified reference pattern으로 봐야 한다.

실제 ESP32 + W5500 MicroPython node에서 MCU side는 application logic을 처리한다. 예를 들어 sensor reading, motor 또는 relay control, telemetry formatting, local command serving, device state 유지가 여기에 포함된다. W5500 side는 Ethernet-facing workload를 담당한다. 여기에는 link, MAC/PHY operation, TCP/UDP protocol behavior, socket state, packet buffering이 포함된다.

이 역할 분담은 선택된 네 가지 use case 모두에 유용하다. Industrial IoT는 wired determinism과 field diagnostics의 이점을 얻는다. Robotics는 예측 가능한 local control link의 이점을 얻는다. Education은 SPI, register, socket, payload 같은 layer를 눈에 보이게 학습할 수 있다. Maker project는 전체 software TCP/IP stack을 직접 구현하지 않고도 Ethernet을 사용하는 더 단순한 경로를 얻는다.

Data path는 직접적이다. Local input이 ESP32로 들어오고, firmware가 이를 payload로 변환한 뒤, W5500이 socket operation을 통해 Ethernet으로 데이터를 전송한다. 반대 방향에서는 command가 TCP 또는 UDP socket으로 들어오고, W5500이 수신 byte를 internal buffer에 저장하며, MicroPython이 이를 읽고 해석한 뒤 device behavior를 변경한다.

4. WIZnet이 들어가는 위치

이 architecture에서 사용하는 정확한 WIZnet 제품은 W5500이다. WIZnet은 W5500을 외부 MCU와 최대 80 MHz SPI로 연결되는 hardwired TCP/IP stack Internet controller로 설명한다. W5500은 10/100 Ethernet MAC과 PHY를 통합하고, TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE를 포함한 protocol을 지원하며, 8개의 independent socket과 Tx/Rx buffer용 32 KB internal memory를 제공한다.

Network stack 관점에서 W5500은 MicroPython application과 wired Ethernet network 사이의 boundary이다. ESP32는 Python에서 전체 TCP/IP stack을 구현할 필요가 없다. 대신 SPI command와 socket-level operation을 사용하고, W5500이 low-level Ethernet 및 TCP/UDP behavior를 유지한다. 이 구조는 firmware complexity를 낮추고, constrained embedded system에서 network path를 더 쉽게 이해하고 관리할 수 있게 한다.

Hardware 관점에서 W5500은 SPI plus chip select와 reset이 필요하다. MicroPython WIZNET5K documentation은 interface를 SPI object, CS pin, reset pin으로 설명하며, module에 MOSI, MISO, SCLK, nSS, nRESET connection이 필요하다고 설명한다. 또한 board에 따라 다른 SPI bus와 pin을 사용할 수 있다고 명시한다.

Register와 diagnostics 관점에서도 W5500은 유용하다. Link status, socket state, IP configuration, buffer state, chip identity를 driver logic 또는 register dump를 통해 확인할 수 있기 때문이다. MicroPython의 WIZNET5K class에는 WIZnet5x00 register를 dump하는 regs() method가 있으며, 이는 bring-up, link failure, socket-state issue를 debug할 때 유용하다.

5. 구현 참고 사항

정확한 Wenku page를 직접 검증할 수 없었기 때문에, 이 section은 해당 page의 source-specific implementation file이나 code snippet을 주장하지 않는다. 올바른 architecture-level MicroPython pattern은 network driver를 통해 W5500을 초기화하고, IP configuration을 확인한 뒤, socket을 일반적으로 사용하는 것이다.

공식 MicroPython WIZNET5K usage pattern:

import network

nic = network.WIZNET5K(
    pyb.SPI(1),
    pyb.Pin.board.X5,
    pyb.Pin.board.X4
)

print(nic.ipconfig("addr4"))

# now use socket as usual

이 pattern이 중요한 이유는 firmware boundary를 정의하기 때문이다. SPI bus, chip-select pin, reset pin이 W5500을 bring-up한다. 그 이후 application은 raw Ethernet driver처럼 동작해서는 안 된다. Network interface와 socket API를 사용하고, 그 주변에 application-level timeout, reconnect behavior, diagnostics를 추가해야 한다. MicroPython은 constructor를 network.WIZNET5K(spi, pin_cs, pin_rst)로 문서화하며, 여기서 spi는 MOSI/MISO/SCLK를 전달하고, pin_cs는 nSS에, pin_rst는 nRESET에 연결된다.

Firmware organization은 다음과 같이 layer를 명확히 나누는 것이 좋다.

Board layer: SPI pin, CS, reset, optional interrupt pin, link LED handling.

Network layer: W5500 initialization, DHCP/static IP policy, socket allocation, link check, register dump support.

Protocol layer: UDP telemetry, TCP command server, HTTP client, MQTT client, local binary protocol.

Application layer: sensor reading, robot command handling, industrial I/O, teaching example, maker automation logic.

Recovery layer: socket cleanup, W5500 reset, watchdog handling, fallback network configuration.

Performance 관점에서는 SPI clock만 보면 안 된다. W5500은 high-speed SPI를 지원하지만, 유용한 embedded performance는 payload size, polling frequency, interrupt usage, buffer allocation, blocking behavior, socket cleanup에도 좌우된다. W5500은 8개의 socket과 32 KB Tx/Rx buffer memory를 제공하므로, firmware는 허용할 socket 수와 각 function이 생성할 수 있는 traffic 규모를 정의해야 한다.

6. 실용 팁 / 주의점

SPI wiring: MOSI, MISO, SCLK, CS, reset 배선은 짧고 안정적으로 유지한다. W5500이 지원하는 SPI Mode 0 또는 Mode 3을 사용하고, 테스트 전에 board의 실제 pin mapping을 확인한다.

Reset sequencing: W5500 reset을 network recovery design의 일부로 다룬다. Socket state가 stale 상태가 되거나 PHY link가 예상과 다르게 동작할 때, controlled W5500 reset은 Python script만 재시작하는 것보다 더 유용할 수 있다.

DHCP/static IP policy: Industrial IoT는 static IP 또는 fallback address가 필요한 경우가 많다. Maker와 education demo는 DHCP를 먼저 사용할 수 있다. Robotics는 controller-to-device communication을 예측 가능하게 만들기 위해 fixed addressing을 선호할 수 있다.

Register visibility: Bring-up 중에는 register dump를 사용한다. Chip version, PHY state, socket status, local IP, gateway, subnet, TX free size, RX received size는 일반적인 “network failed” print보다 훨씬 유용하다.

Socket ownership: W5500은 8개의 socket을 지원하지만, firmware가 socket을 자유롭게 열어도 된다는 뜻은 아니다. Telemetry, command server, diagnostics, service mode처럼 role별로 socket을 예약한다.

Buffer limits: 32 KB internal Tx/Rx memory는 공유되어야 한다. Firmware가 의도적으로 data를 chunking하지 않는다면 large unbounded HTTP response, oversized JSON, blocking transfer를 피해야 한다.

Performance testing: 실제 workload로 테스트한다. UDP telemetry, TCP command response, HTTP client upload, MQTT keepalive는 network path에 서로 다른 부하를 준다.

7. FAQ

왜 이 프로젝트에 WIZnet W5500을 사용하나?
W5500은 MCU project가 hardwired TCP/IP stack과 socket-oriented programming을 갖춘 wired Ethernet이 필요할 때 유용하다. W5500은 10/100 Ethernet MAC/PHY, TCP/UDP protocol support, 8개의 socket, internal Tx/Rx buffer를 제공하여 MicroPython이 직접 처리해야 하는 network-stack 작업량을 줄인다.

W5500은 platform과 어떻게 연결되나?
W5500은 SPI plus chip select와 reset을 통해 연결된다. MicroPython의 WIZNET5K constructor는 SPI object, CS pin, reset pin을 받는다. 문서화된 physical signal은 MOSI, MISO, SCLK, nSS, nRESET이며, board에 따라 다른 SPI bus와 pin을 사용할 수 있다.

이 프로젝트에서 W5500의 역할은 무엇인가?
W5500은 network offload와 Ethernet interface 역할을 한다. ESP32는 MicroPython application logic을 실행하고, W5500은 Ethernet MAC/PHY operation, hardwired TCP/IP protocols, socket state, packet buffering을 처리한다.

초보자도 따라 할 수 있나?
가능하다. Education과 Maker use에서는 기본 흐름이 관리 가능하다. SPI를 배선하고, W5500을 초기화하고, IP configuration을 확인한 뒤, socket을 사용하면 된다. Industrial IoT 또는 Robotics에서는 field에서 사용하기 전에 link check, socket cleanup, watchdog handling, static IP fallback, diagnostics를 추가해야 한다.

왜 이 구조가 여러 use case에 유용한가?
동일한 architecture가 여러 project type에 잘 맞기 때문이다. Industrial IoT는 telemetry와 control에 사용할 수 있다. Robotics는 wired command link에 사용할 수 있다. Education은 SPI, register, socket, protocol layering을 가르치는 데 사용할 수 있다. Maker project는 전체 software network stack을 직접 만들지 않고도 reliable wired Ethernet을 사용할 수 있다.

8. 출처

원본 CSDN Wenku answer page:
https://wenku.csdn.net/answer/4x5xuv47bt
해당 page는 browsing을 통해 직접 검증할 수 없었다. 따라서 이 글은 정확한 Wenku page의 code, wiring table, register list, project-specific implementation detail을 주장하지 않는다.

접근 가능한 관련 CSDN reference:
“MicroPython下W5500以太网驱动移植与UDP通信实战”은 W5500 MicroPython driver migration, SPI adaptation, network initialization, DHCP/static IP handling, UDP communication, driver layering을 설명한다. 이는 접근 불가능한 Wenku page의 증거가 아니라 관련 reference material로만 사용한다.

공식 WIZnet W5500 documentation:
W5500 hardwired TCP/IP stack, 최대 80 MHz SPI, 10/100 Ethernet MAC/PHY, supported protocols, 8 sockets, 32 KB internal Tx/Rx buffer memory, ioLibrary resource, supported service 정보를 확인하는 데 사용했다.

공식 MicroPython WIZNET5K documentation:
WIZNET5K constructor, SPI/CS/reset wiring model, socket usage pattern, ESP32 note, register dump method를 확인하는 데 사용했다.

Editorial workflow와 source-handling rule은 업로드된 WIZnet UCC Curator Handover Notes를 따랐다.

9. 태그

WIZnet, W5500, ESP32, MicroPython, Ethernet, TCP/IP, SPI, Registers, Firmware, Performance, Industrial IoT, Robotics
