How Does a W5500 Ethernet Driver Work with NuttX TCP/IP at the Low Level?

Driver-Level Design, Socket Lifecycle, and Debugging Insights

(W5500 이더넷 드라이버는 NuttX TCP/IP와 어떻게 저수준에서 동작하는가?)

Summary (40–60 words)

This article explains how the WIZnet W5500 Ethernet controller integrates with the NuttX RTOS at the driver level. By examining SPI register access, TX/RX buffer handling, and the real TCP socket lifecycle, it shows how correct driver design enables stable TCP networking—and how subtle driver bugs can cause silent failures in production systems.

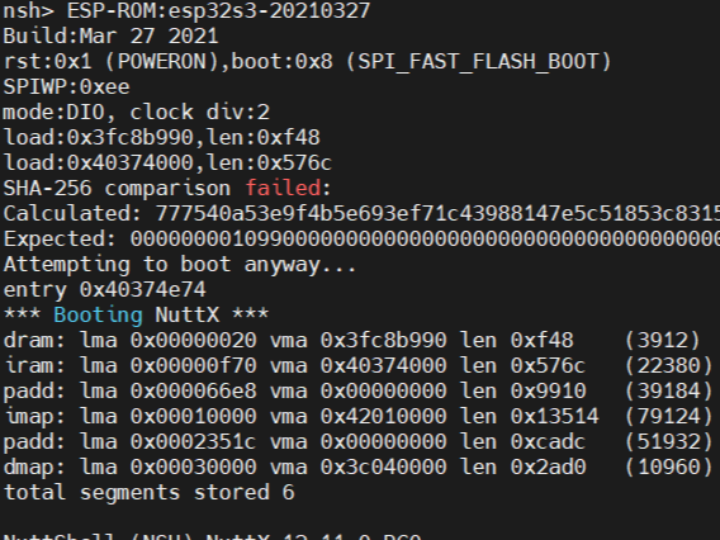

1. Why W5500 + NuttX Is an Engineer-Level Topic

NuttX is a POSIX-like RTOS designed for:

Deterministic scheduling

Clean driver separation

Long-term maintainability

When using NuttX with the WIZnet W5500, developers are not writing “examples” or “demos”. They are building real systems where:

Ethernet must be stable for months or years

Failures must be reproducible

Debugging must be systematic

This makes W5500 driver correctness far more important than application logic.

2. Architectural Separation: NuttX vs W5500 Responsibilities

One key design advantage of W5500 is how cleanly it separates responsibilities.

System Architecture Overview

Crucially:

NuttX does not implement TCP/IP logic for W5500

TCP/IP is handled entirely by W5500 hardware

NuttX interacts with W5500 through a driver abstraction

3. W5500 Driver Model in a NuttX Context

In NuttX, the W5500 driver is responsible for:

SPI initialization and mutual exclusion

Register read/write operations

TX/RX buffer access

Mapping hardware socket events to NuttX networking events

Unlike hobby frameworks, there is no hidden abstraction.
Every error is either:

A driver logic error, or

A hardware configuration error

4. Register and Buffer Access Patterns (Why They Matter)

The W5500 exposes:

16-bit register addresses

16-bit TX/RX buffer pointers

Variable-length buffer regions

This requires strict multi-byte SPI access discipline.

Correct Conceptual Access Pattern

This pattern must be preserved for every logical operation.

Breaking it causes undefined behavior at the TCP data level.

5. TCP Socket Lifecycle: What NuttX Sees vs What W5500 Does

From the NuttX application perspective, TCP looks familiar:

But inside W5500, the lifecycle is hardware-driven:

The driver’s role is to:

Write correct socket registers

Move TX/RX pointers accurately

Trigger SEND / RECV commands

If this is done correctly, TCP is extremely stable.

6. A Common Failure Mode in NuttX + W5500 Systems

A failure frequently observed in real systems is:

send() returns success, socket state is ESTABLISHED, but peer receives no data

In a NuttX environment, this is almost never:

A scheduler issue

A TCP stack bug

A network timing problem

It is almost always:

TX buffer written incorrectly

TX pointer updated inconsistently

SPI transaction split across CS boundaries

7. Why CS Timing Is Critical Under an RTOS

NuttX allows:

Preemption

Multiple threads

Concurrent driver access

If CS control is not strictly inside the driver, problems occur:

Partial SPI transactions

Pointer corruption

Race conditions between send operations

Deterministic Rule

One SPI transaction = one CS assertion = one logical W5500 operation

This rule must be enforced regardless of RTOS.

8. Debugging Strategy for Engineers

When debugging W5500 TCP issues on NuttX, experienced engineers check:

SPI transaction boundaries (logic analyzer)

Multi-byte register writes

TX/RX pointer update order

SEND command timing

Socket interrupt handling

They do not start by debugging TCP itself.

9. Why This Design Scales to Production Systems

When the W5500 driver is:

Deterministic

Atomic in SPI access

Correct in buffer handling

Then:

TCP behavior is repeatable

Failures are reproducible

Firmware is portable across MCUs

Long-term uptime is achievable

This is why W5500 is widely used in industrial and infrastructure systems.

10. Key Takeaway for NuttX Developers

On NuttX, W5500 turns TCP into a hardware service—but only if the driver obeys strict SPI and buffer rules.

When the driver is correct:

TCP becomes boring (a good thing)

Debugging shifts to application logic

System reliability improves dramatically

FAQ (Engineer-Focused)

Q1. Does NuttX use its own TCP stack with W5500?
No. W5500 handles TCP/IP entirely in hardware.

Q2. Are these issues specific to NuttX?
No. They appear in any RTOS or bare-metal system.

Q3. Why is W5500 still used instead of LwIP?
For deterministic behavior, low RAM usage, and long-term stability.

Q4. Can this driver model support high uptime?
Yes, if SPI and buffer access are correct.

Q5. Is this suitable for safety-critical systems?
Yes, with proper validation and testing.

Source

CNBlogs article (NuttX + W5500 driver-level discussion)

WIZnet W5500 Datasheet (SPI, socket, buffer architecture)

Tags

W5500, WIZnet, NuttX, Ethernet Driver, TCP Socket Lifecycle, SPI CS Timing, Embedded Linux-like RTOS, Industrial Ethernet

🇰🇷 한국어 번역 (1:1 Full Translation)

W5500 이더넷 드라이버는 NuttX TCP/IP와 어떻게 저수준에서 동작하는가?

드라이버 설계, TCP 소켓 생명주기, 디버깅 관점

요약

본 문서는 WIZnet W5500 이더넷 컨트롤러가 NuttX RTOS와 드라이버 수준에서 어떻게 통합되는지를 설명한다. SPI 레지스터 접근, TX/RX 버퍼 처리, 실제 TCP 소켓 생명주기를 분석하여, 올바른 드라이버 설계가 TCP 안정성을 어떻게 보장하는지와 잘못된 설계가 조용한 실패를 유발하는 이유를 설명한다.

1. W5500 + NuttX가 엔지니어 주제인 이유

NuttX는 POSIX 스타일 RTOS로,
W5500과 결합하면 산업용 수준의 네트워크 시스템이 된다.

이 환경에서는 “대충 동작”이 허용되지 않는다.

2. 시스템 아키텍처 분리

TCP는 소프트웨어가 아닌 하드웨어에서 처리된다.

3. NuttX에서의 W5500 드라이버 역할

SPI 제어

레지스터 접근

버퍼 포인터 관리

소켓 이벤트 처리

모든 안정성은 드라이버에 달려 있다.

4. 레지스터 및 버퍼 접근 규칙

다중 바이트 접근은 반드시 원자적이어야 한다.

CS 분리는 허용되지 않는다.

5. TCP 소켓 생명주기

NuttX의 send()/recv()는
W5500 내부 상태를 반영할 뿐이다.

6. 대표적인 실패 사례

send 성공, ESTABLISHED 상태, 데이터 없음

이는 거의 항상 드라이버 오류다.

7. RTOS 환경에서 CS 타이밍

CS는 드라이버 내부에서만 제어되어야 한다.

8. 엔지니어를 위한 디버깅 순서

SPI 트랜잭션 확인

포인터 업데이트

SEND 타이밍

9. 산업용 확장성

결정적인 SPI + 버퍼 모델은
장시간 안정성을 보장한다.

10. 핵심 메시지

NuttX에서 W5500 TCP 안정성은 드라이버의 품질에 달려 있다.

태그

W5500, WIZnet, NuttX, 이더넷 드라이버, TCP 소켓, SPI CS 타이밍, 산업용 이더넷
