Install Wired Ethernet Module on OpenSprinkler v3.2+

COMPONENTS

PROJECT DESCRIPTION

Overview

OpenSprinkler is an open-source sprinkler and irrigation controller designed for smart watering applications such as lawn irrigation, garden watering, drip irrigation, and hydroponics.

OpenSprinkler v3 includes built-in Wi-Fi, but some installations require a more stable wired network connection. For irrigation controllers installed in garages, utility rooms, outdoor cabinets, farms, or commercial facilities, wired Ethernet can provide better reliability than wireless communication.

To support this requirement, OpenSprinkler provides an optional wired Ethernet module for OpenSprinkler v3.2 and later hardware.

According to the OpenSprinkler installation guide, wired Ethernet has been supported since OpenSprinkler v3.2. The external Ethernet module uses ENC28J60 for v3.2 and W5500 for v3.3 and v3.4 hardware versions. ()

For OpenSprinkler v3.3 and v3.4, the wired Ethernet module is based on WIZnet W5500 and supports 10/100Mb Ethernet connectivity. ()

This makes the OpenSprinkler wired Ethernet module a practical example of how W5500 can be used to add reliable wired networking to an embedded smart home and irrigation control system.

Background

Smart irrigation controllers need network connectivity for configuration, remote access, scheduling, weather-based watering adjustment, firmware updates, and integration with other automation systems.

Wi-Fi is convenient, but it may not always be ideal for irrigation systems.

Sprinkler controllers are often installed in locations where Wi-Fi signals can be weak or unstable, such as:

Garages
Basements
Outdoor utility boxes
Pump rooms
Farm facilities
Commercial irrigation control panels
Greenhouses
Equipment cabinets

In these environments, wired Ethernet can provide a more stable and predictable connection.

For an irrigation controller, communication reliability is important because the controller may need to receive updated schedules, weather data, manual control commands, or remote access requests. If the network connection is unstable, the user experience can be affected.

The OpenSprinkler wired Ethernet module solves this problem by allowing compatible OpenSprinkler v3 controllers to use Ethernet instead of relying only on Wi-Fi.

Product Summary

The OpenSprinkler wired Ethernet module is an add-on module that enables wired Ethernet connectivity for OpenSprinkler v3.2 and later controllers.

The module type depends on the OpenSprinkler hardware version:

OpenSprinkler v3.2: ENC28J60 Ethernet module, 10Mb only
OpenSprinkler v3.3 and v3.4: W5500 Ethernet module, 10/100Mb

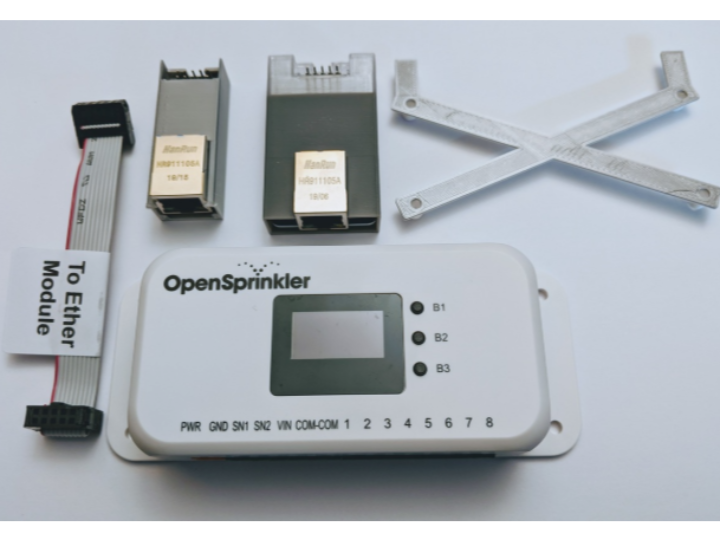

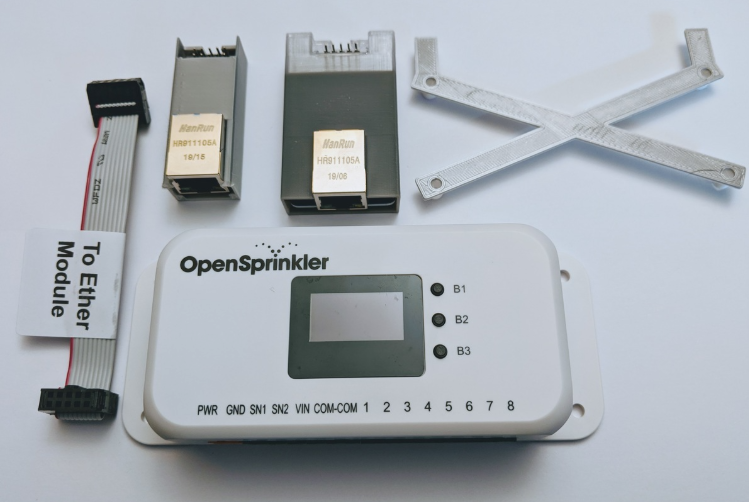

The module package includes:

One wired Ethernet module with a 3D-printed enclosure
One 2x5 ribbon cable
One 3D-printed back bracket used during installation

The Ethernet module connects to the OpenSprinkler controller through an internal 2x5 connector using the provided ribbon cable. The installation process involves opening the controller enclosure, connecting the ribbon cable to the internal connector, routing the cable through the enclosure, and connecting the other end to the external Ethernet module. ()

The module is not compatible with PoE. OpenSprinkler notes that for DC and Latch models, a PoE splitter may be used to enable PoE-style installation, but for AC models, PoE is not supported and PoE should be disabled on the switch to prevent issues. ()

Why W5500?

The W5500 is the key component in the OpenSprinkler v3.3 and v3.4 wired Ethernet module.

W5500 is a hardwired TCP/IP Ethernet controller from WIZnet. It integrates the TCP/IP stack, 10/100 Ethernet MAC, and Ethernet PHY into a single chip.

This is important because OpenSprinkler is an embedded controller. Its main task is not only network communication, but also irrigation control, zone scheduling, valve operation, sensor handling, and system management.

By using W5500, the controller can add wired Ethernet connectivity without requiring the host MCU to handle a full software TCP/IP stack.

W5500 provides several benefits for this type of application:

10/100Mb wired Ethernet support
Hardwired TCP/IP stack
Integrated Ethernet MAC and PHY
SPI interface for host communication
Reduced firmware complexity
Stable network communication for embedded devices

For a smart irrigation controller, this means the system can maintain reliable Ethernet communication while keeping the embedded design compact and efficient.

Why Wired Ethernet Matters for OpenSprinkler

OpenSprinkler is often installed in fixed locations. Unlike mobile devices, an irrigation controller usually stays in one place for many years.

Because of this, wired Ethernet can be an excellent connectivity option.

The advantages of wired Ethernet include:

More stable connection than weak Wi-Fi environments
Lower risk of wireless interference
Better reliability for fixed installations
Suitable for utility rooms, garages, and outdoor cabinets
Useful for commercial or farm irrigation systems
Better long-term connectivity for remote access

For users who depend on OpenSprinkler for automated watering, stable connectivity can be important. If the controller is used in a remote or hard-to-access location, wired Ethernet can reduce the chance of connection problems.

The W5500-based Ethernet module gives OpenSprinkler users a simple way to add this reliability.

Installation Concept

The wired Ethernet module is designed as an external add-on module.

The installation process is straightforward but requires opening the OpenSprinkler controller enclosure.

The general installation flow is:

Select the correct Ethernet module for the OpenSprinkler hardware version
Open the OpenSprinkler controller enclosure

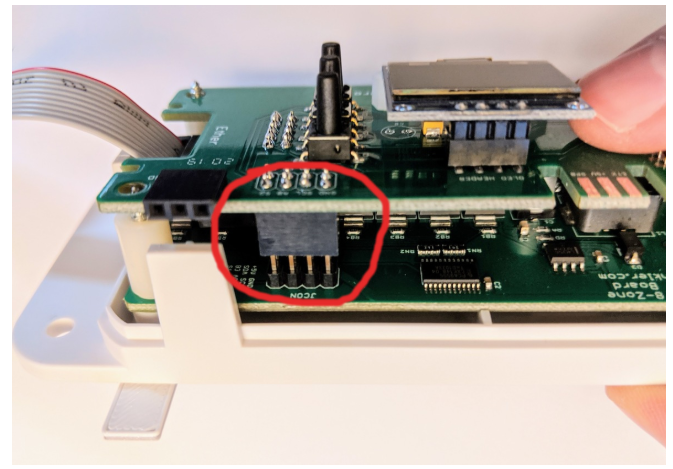

Locate the internal 2x5 connector

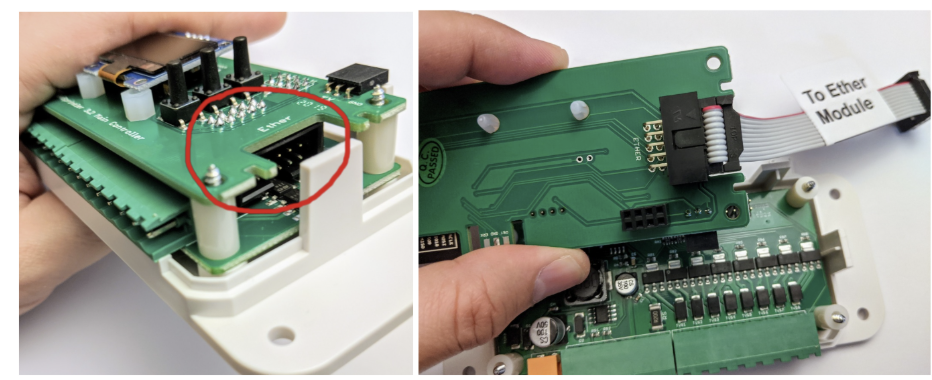

Connect the ribbon cable to the controller board
Reconnect the top circuit board carefully
Route the ribbon cable through the enclosure
Close the controller enclosure

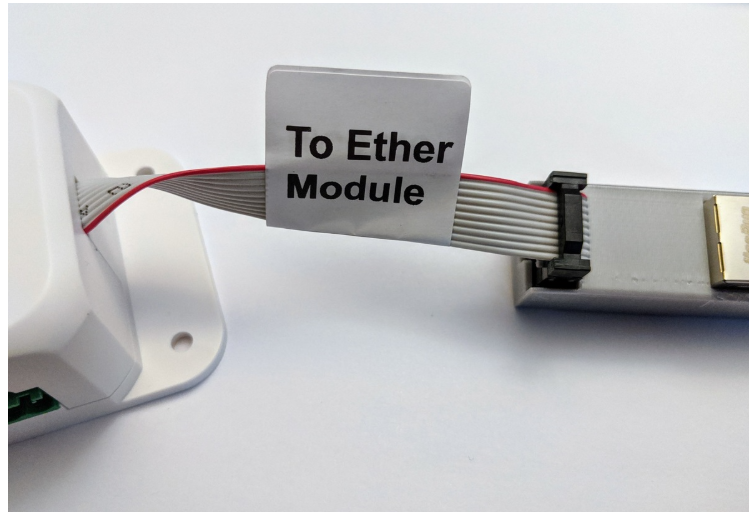

Connect the other end of the ribbon cable to the Ethernet module

The OpenSprinkler installation guide emphasizes that the module type must match the hardware version because the ENC28J60 and W5500 modules are not interchangeable. ()

It also notes that if the internal 2x5 receptor is missing, the controller is earlier than version 3.2 and does not support wired Ethernet. ()

This modular approach is useful because users can add Ethernet later, even if the controller was originally purchased without the wired Ethernet option.

System Architecture

The OpenSprinkler wired Ethernet configuration can be understood as three main functional blocks:

OpenSprinkler controller
W5500 Ethernet module
Network infrastructure

The OpenSprinkler controller handles the irrigation control logic. It manages watering schedules, zone control, sensor inputs, user configuration, and system operation.

The W5500 Ethernet module provides wired network connectivity. It handles Ethernet communication and enables the controller to connect to the local network through an RJ45 Ethernet cable.

The network infrastructure includes the router, switch, or LAN port that provides network access.

In this architecture, the W5500 acts as the wired Ethernet communication engine.

Instead of redesigning the entire controller hardware, OpenSprinkler adds Ethernet using an external module connected by a ribbon cable. This makes the design flexible and serviceable.

Hardware Version Compatibility

One important point is hardware compatibility.

OpenSprinkler uses different Ethernet module types depending on the controller hardware revision.

For OpenSprinkler v3.2, the wired Ethernet module uses ENC28J60 and supports 10Mb Ethernet.

For OpenSprinkler v3.3 and v3.4, the wired Ethernet module uses W5500 and supports 10/100Mb Ethernet. ()

The official installation guide clearly states that the two module types are not interchangeable. Users must choose the correct module based on their OpenSprinkler hardware version. ()

This is important because the connector pin assignment and Ethernet module design differ between hardware versions.

Main Features

The W5500-based OpenSprinkler wired Ethernet module provides the following features:

Wired Ethernet connectivity for OpenSprinkler v3.3 and v3.4
W5500-based 10/100Mb Ethernet
External add-on module design
Connection through 2x5 ribbon cable
3D-printed module enclosure
Compatible with OpenSprinkler smart irrigation controller
Useful for installations where Wi-Fi is unstable
Supports fixed wired network deployment
Helps improve long-term network reliability

These features make the module suitable for smart irrigation systems that require stable LAN connectivity.

Benefits of W5500 in Smart Irrigation Systems

1. Reliable Network Connection

Irrigation controllers are often installed in locations where Wi-Fi coverage is poor.

A W5500-based wired Ethernet module provides a stable physical network connection.

This is useful for long-term installations where the controller should remain accessible for remote control and monitoring.

2. 10/100Mb Ethernet Support

For OpenSprinkler v3.3 and v3.4, the W5500 module supports 10/100Mb Ethernet connectivity. ()

Although irrigation control does not require high bandwidth, 10/100Mb Ethernet provides compatibility with common network equipment and reliable LAN operation.

3. Reduced Embedded Networking Complexity

W5500 includes a hardwired TCP/IP stack.

This reduces the burden on the host controller and simplifies Ethernet implementation.

For embedded devices such as OpenSprinkler, this is valuable because the controller firmware can focus on irrigation features rather than low-level network stack handling.

4. Compact Add-On Design

The Ethernet module is provided as an external module with a 3D-printed enclosure and ribbon cable. ()

This makes it possible to add wired Ethernet without replacing the entire controller.

The W5500’s integrated Ethernet MAC and PHY help support a compact module design.

5. Suitable for Fixed Installations

Smart irrigation systems are usually installed permanently.

Once installed, the controller may remain in operation for years.

A wired Ethernet connection based on W5500 is well suited for this type of fixed installation because it provides stable connectivity with minimal user intervention.

Use Cases

The W5500-based OpenSprinkler wired Ethernet module is useful in many irrigation and automation scenarios.

Example applications include:

Residential lawn irrigation
Garden watering systems
Greenhouse irrigation
Drip irrigation systems
Farm watering systems
Commercial landscape irrigation
Pump room control systems
Outdoor equipment cabinets
Smart building irrigation
Remote irrigation monitoring

In these applications, wired Ethernet can help maintain stable access to the controller even when Wi-Fi conditions are not ideal.

PoE Consideration

One important installation note is PoE compatibility.

The OpenSprinkler wired Ethernet modules are not compatible with PoE directly.

For OpenSprinkler DC and Latch models, users may use a PoE splitter if they want a PoE-style installation. However, for OpenSprinkler AC models, PoE is not supported. OpenSprinkler recommends disabling PoE on the switch to prevent issues. ()

This is important because some network switches automatically provide PoE. Users should confirm their network equipment before connecting the Ethernet module.

Why This Is a Good W5500 Example

The OpenSprinkler wired Ethernet module is a strong example of W5500 usage because it shows W5500 being used in a real smart irrigation product.

Many embedded systems need reliable networking, but not all of them require a high-end processor or a Linux-based platform.

OpenSprinkler is a good example of a compact embedded controller that benefits from a dedicated Ethernet controller.

By using W5500, the product can offer wired Ethernet connectivity while keeping the controller design compact and practical.

This is exactly where W5500 is useful:

Adding Ethernet to embedded controllers
Improving reliability over Wi-Fi-only systems
Reducing network stack implementation burden
Supporting compact add-on modules
Enabling long-term connected operation

The module demonstrates that W5500 is suitable not only for industrial controllers and IoT gateways, but also for smart home and outdoor automation systems.

Conclusion

The OpenSprinkler wired Ethernet module is a practical add-on that enables wired network connectivity for OpenSprinkler v3.2 and later controllers.

For OpenSprinkler v3.3 and v3.4, the module uses WIZnet W5500 and provides 10/100Mb Ethernet connectivity. This allows OpenSprinkler users to choose a more stable wired connection instead of relying only on Wi-Fi.

The W5500 is especially suitable for this application because it integrates a hardwired TCP/IP stack, Ethernet MAC, and PHY in a single chip. It allows embedded systems to add Ethernet connectivity through a simple host interface while reducing firmware complexity.

For smart irrigation systems installed in garages, outdoor cabinets, farms, greenhouses, or commercial facilities, stable network access is important. A W5500-based wired Ethernet module can improve connection reliability and make the controller easier to access and manage over time.

This product is a useful example of how W5500 can be applied in real smart home and irrigation control equipment. It shows how a compact Ethernet module can extend an embedded controller with reliable wired network connectivity.

Q1: What is the OpenSprinkler wired Ethernet module?

A1:
It is an optional add-on module that enables wired Ethernet connectivity for OpenSprinkler v3.2 and later controllers.

It connects to the controller using a 2x5 ribbon cable and provides LAN connectivity through an external Ethernet module.

Q2: Which OpenSprinkler versions use W5500?

A2:
OpenSprinkler v3.3 and v3.4 use the W5500 wired Ethernet module.

OpenSprinkler v3.2 uses an ENC28J60 module instead.

The two module types are not interchangeable, so users must select the correct module for their hardware version.

Q3: Why use W5500 for OpenSprinkler?

A3:
W5500 provides stable wired Ethernet connectivity with a hardwired TCP/IP stack, integrated Ethernet MAC, and PHY.

This allows OpenSprinkler to support Ethernet without requiring the host controller to handle complex software TCP/IP processing.

Q4: Is the wired Ethernet module compatible with PoE?

A4:
No. The OpenSprinkler wired Ethernet modules are not directly compatible with PoE.

For OpenSprinkler DC and Latch models, a PoE splitter may be used. For AC models, PoE is not supported, and PoE should be disabled on the switch.

Q5: Why is wired Ethernet useful for irrigation controllers?

A5:
Irrigation controllers are often installed in places where Wi-Fi signal quality may be weak or unstable.

Wired Ethernet provides a more stable connection for remote access, scheduling, monitoring, and smart irrigation control.

Q6: What does this product demonstrate about W5500?

A6:
It demonstrates that W5500 can be used in real embedded smart home and automation products.

The module shows how W5500 can add reliable Ethernet connectivity to an existing embedded controller through a compact add-on design.
