Overview

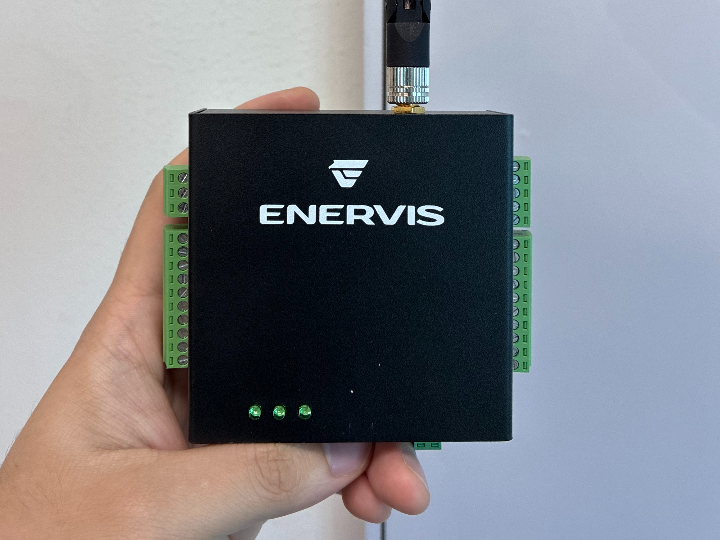

This project introduces an industrial Ethernet-based I/O controller developed with ESP32-S3 and WIZnet W5500.

The controller is designed for industrial and facility automation applications that require reliable field signal control, monitoring, and Ethernet connectivity.

The product integrates:

• 8-channel DIO
• 8-channel AIO
• 1-channel RS-485
• Ethernet connectivity based on W5500
• NPN sink-type digital outputs

By combining ESP32-S3 for embedded control and W5500 for Ethernet communication, this controller provides a compact and practical platform for industrial I/O and network-based monitoring systems.

Background

Industrial and facility automation systems often require multiple types of field interfaces.

Typical systems need to monitor sensors, control indicators, communicate with serial devices, and exchange data with upper-level monitoring systems.

These applications commonly require:

• Digital input and output control
• Analog signal monitoring
• RS-485 communication
• Ethernet-based data communication
• Reliable output control for field devices
• Compact embedded hardware suitable for panel installation

To meet these requirements, this controller was developed using ESP32-S3 as the main MCU and W5500 as the Ethernet controller.

This architecture allows the system to handle local I/O control while also supporting wired Ethernet communication.

Solution

The controller uses ESP32-S3 for main system control and WIZnet W5500 for Ethernet connectivity.

The basic structure can be described as follows:

Field Devices / Sensors / Actuators
        |
Digital I/O / Analog I/O / RS-485
        |
ESP32-S3 Industrial I/O Controller
        |
WIZnet W5500 Ethernet Controller
        |
Ethernet Network
        |
Monitoring System / Server / HMI / Gateway

ESP32-S3 handles the main application logic, I/O processing, and communication control.

W5500 provides stable wired Ethernet connectivity, allowing the controller to communicate with external systems over the network.

This combination makes the product suitable for industrial monitoring, facility control, remote I/O, and automation applications.

Why W5500?

W5500 is a hardwired TCP/IP Ethernet controller from WIZnet.

It is suitable for embedded industrial controllers because it provides reliable Ethernet communication through a simple SPI interface.

1. Stable Wired Ethernet

Industrial I/O controllers are often installed in environments where stable communication is required.

W5500 provides reliable wired Ethernet connectivity for monitoring and control systems.

2. Hardwired TCP/IP Stack

W5500 includes a hardwired TCP/IP stack.

This reduces the network processing burden on the host MCU and helps simplify Ethernet firmware development.

3. Simple Interface with ESP32-S3

W5500 communicates with ESP32-S3 through SPI.

This allows Ethernet connectivity to be added without requiring the main MCU to include a built-in Ethernet MAC or PHY.

4. Suitable for Industrial Controllers

For products that need digital I/O, analog I/O, RS-485, and Ethernet in one compact system, W5500 provides a practical Ethernet solution.

Main Features

ESP32-S3 Main Controller

ESP32-S3 is used as the main controller of the system.

It handles:

• I/O control
• Analog signal processing
• RS-485 communication
• System logic
• Communication with W5500
• Application firmware

ESP32-S3 provides the processing flexibility needed for embedded industrial control applications.

WIZnet W5500 Ethernet

W5500 provides the Ethernet interface for the controller.

It enables the product to connect to Ethernet-based systems such as monitoring servers, gateways, HMIs, or local network infrastructure.

This makes the controller suitable for network-connected industrial and facility automation systems.

8-Channel DIO

The controller includes 8-channel digital I/O.

These channels can be used for monitoring or controlling field signals such as:

• Switches
• Contacts
• Alarms
• Indicators
• Control signals
• Equipment status signals

8-Channel AIO

The controller includes 8-channel analog I/O.

Analog channels allow the system to interface with sensors or devices that use analog voltage or current signals.

This makes the controller useful for monitoring environmental values, equipment status, process signals, or other field measurements.

RS-485 Communication

The controller includes 1-channel RS-485.

RS-485 is commonly used in industrial systems for communication with field devices, sensors, controllers, meters, and Modbus-based equipment.

This allows the controller to connect with serial industrial devices in addition to Ethernet-based systems.

NPN Sink-Type Digital Output

A key feature of this controller is its NPN sink-type digital output design.

NPN sink outputs are commonly used for controlling industrial field devices by switching the load to ground.

This structure is suitable for controlling devices such as:

• Buzzers
• Signal lamps
• Door open/close actuators
• Relays
• Alarm devices
• Panel indicators

This makes the controller practical for real field control applications.

System Architecture

The product can be divided into five main functional blocks.

1. Field I/O Interface

The controller connects to field devices through digital I/O and analog I/O channels.

This allows the product to collect field signals and control external devices.

2. RS-485 Interface

The RS-485 port allows communication with serial industrial devices.

It can be used for sensor modules, meters, control devices, or other RS-485-based equipment.

3. ESP32-S3 Control Unit

ESP32-S3 manages the main control logic, I/O operation, RS-485 communication, and system behavior.

4. W5500 Ethernet Interface

W5500 provides wired Ethernet connectivity.

It allows the controller to send and receive data through an Ethernet network.

5. Field Output Control

The NPN sink-type digital outputs allow the controller to drive practical field devices such as buzzers, lamps, and door actuators.

Applications

This ESP32-S3 and W5500-based industrial I/O controller can be used in various applications, including:

• Industrial I/O control
• Facility automation
• Remote monitoring
• Building management systems
• Access control systems
• Alarm and indicator control
• Door control systems
• Equipment status monitoring
• RS-485 device gateways
• Ethernet-connected control panels
• Factory automation systems

The combination of DIO, AIO, RS-485, and Ethernet makes the controller flexible for many field automation scenarios.

Conclusion

This project shows how ESP32-S3 and WIZnet W5500 can be combined to build a compact industrial Ethernet I/O controller.

With 8-channel DIO, 8-channel AIO, RS-485, Ethernet connectivity, and NPN sink-type digital outputs, the controller can support various industrial and facility automation applications.

ESP32-S3 provides flexible embedded control, while W5500 provides reliable wired Ethernet communication.

This makes the controller a practical platform for field monitoring, device control, RS-485 communication, and Ethernet-based industrial networking.

Q1: What is this project?

A1:
This project is an industrial Ethernet-based I/O controller developed with ESP32-S3 and WIZnet W5500.

Q2: Which WIZnet product is used?

A2:
The project uses WIZnet W5500 for Ethernet connectivity.

Q3: What is the role of ESP32-S3?

A3:
ESP32-S3 is used as the main controller. It handles I/O processing, RS-485 communication, system logic, and communication with W5500.

Q4: What is the role of W5500?

A4:
W5500 provides reliable wired Ethernet connectivity for the controller.

Q5: What I/O does the controller provide?

A5:
The controller provides 8-channel DIO, 8-channel AIO, and 1-channel RS-485.

Q6: What is special about the digital output design?

A6:
The controller uses NPN sink-type digital outputs, which are suitable for controlling field devices such as buzzers, signal lamps, relays, and door actuators.

Q7: What applications can use this controller?

A7:
It can be used for industrial I/O control, facility automation, remote monitoring, alarm systems, access control, door control, RS-485 device communication, and Ethernet-connected control panels.
