Overview

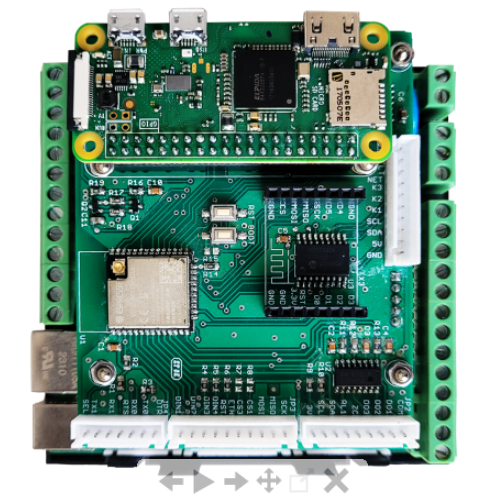

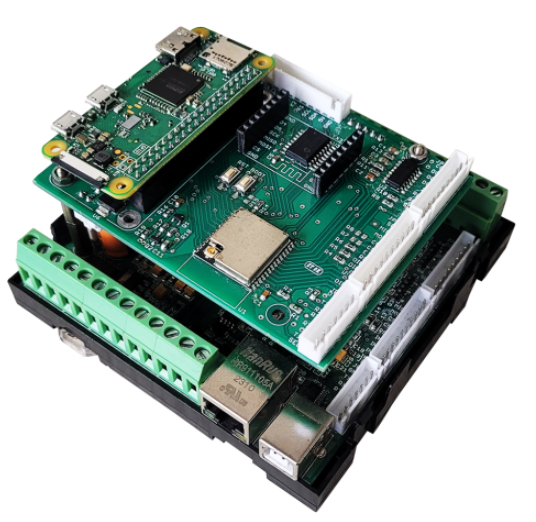

Cloud PLC RPI-0 is an industrial programmable controller from Research Design Lab.

It is designed for industrial automation, remote monitoring, data logging, and edge gateway applications.

The product can be used as:

• Edge gateway
• Automation controller
• Data logger
• Edge processing node

Cloud PLC RPI-0 supports industrial protocols such as Modbus, MQTT, JSON, RESTful API, TCP/UDP, SNMP, and OPC, making it suitable for PLC, SCADA, HMI, VFD, motor, energy meter, actuator, relay, encoder, RFID, fingerprint reader, and industrial sensor applications.

In this product, WIZnet W5500 can be introduced as the Ethernet controller that provides reliable wired network connectivity for industrial communication.

Background

Industrial systems need reliable communication between field devices and upper-level monitoring systems.

Typical industrial devices include:

• PLC
• SCADA
• HMI
• VFD
• Motors
• Servos
• Valves
• Energy meters
• Actuators
• Relays
• Encoders
• RFID readers
• Fingerprint readers
• Industrial sensors

Cloud PLC RPI-0 is designed to collect, process, monitor, and control these devices in industrial environments.

For this type of system, Ethernet is important because it allows the controller to communicate with local servers, cloud platforms, dashboards, SCADA systems, and remote management tools.

Solution

Cloud PLC RPI-0 combines industrial I/O, RS485, RS232, wireless communication, local storage, and Ethernet communication in one controller.

The basic architecture can be described as follows:

Industrial Sensors / Field Devices
        |
Analog Input / Digital Input / RS485 / RS232
        |
Cloud PLC RPI-0
        |
WIZnet W5500 Ethernet
        |
Ethernet Network
        |
SCADA / HMI / Cloud / Server / Dashboard

The controller collects field data through analog inputs, digital inputs, RS485, and RS232.

Then it can process the data locally, store it on an SD card, trigger alarms or automated tasks, and send data to a cloud platform or monitoring system.

W5500 provides the wired Ethernet path for stable TCP/IP communication.

Why W5500?

W5500 is a hardwired TCP/IP Ethernet controller from WIZnet.

It integrates the TCP/IP stack, 10/100 Ethernet MAC, and PHY into a single chip, and communicates with the host through SPI.

1. Reliable Ethernet Connectivity

Cloud PLC RPI-0 is intended for industrial monitoring and control.

In these applications, stable network communication is important.
W5500 provides reliable wired Ethernet connectivity for always-on industrial devices.

2. Hardwired TCP/IP Stack

W5500 includes a hardwired TCP/IP stack.

This helps reduce the network processing burden on the host processor and simplifies Ethernet communication.

3. Compact Embedded Design

Because W5500 integrates MAC, PHY, and TCP/IP stack, it helps simplify the Ethernet hardware design.

This is useful for compact PLC and edge gateway products.

4. Industrial Protocol Foundation

Cloud PLC RPI-0 supports protocols such as Modbus, MQTT, JSON, RESTful API, TCP/UDP, SNMP, and OPC.

W5500 provides the Ethernet foundation needed for these TCP/IP-based industrial and IoT protocols.

Main Features

Cloud PLC RPI-0 includes the following features:

• 8 isolated analog input channels
• Analog input support for 0–10V, 0–24V, and 4–20mA
• 16-bit resolution and 860 SPS
• 2 analog outputs, 0–10V
• 2 0–20mA transmitters
• 4 isolated digital inputs, 24V
• 4 isolated digital outputs / PWM, 24V
• 2 relay outputs, NO and C
• 1 isolated RS485 port for Modbus RTU
• 1 isolated RS232 communication port
• 1 USB device interface for configuration, monitoring, and download
• Wi-Fi and Bluetooth wireless communication
• Industrial isolated and protected I/O
• EMC / EMI compliance
• JSON, MQTT, and FTP protocol support
• SSL secure communication support
• 16GB SD card storage
• Cloud platform support including Microsoft Azure and AWS
• 9–36V DC power input

These features make the product suitable for industrial automation and cloud-connected monitoring systems.

System Architecture

A typical Cloud PLC RPI-0 system can be structured as follows:

Field Layer
---------------------------------
Analog Sensors
Digital Sensors
RS485 Modbus RTU Devices
RS232 Devices
Relays / Actuators

Controller Layer
---------------------------------
Cloud PLC RPI-0
Industrial I/O
Edge Processing
Data Logging
W5500 Ethernet

Network Layer
---------------------------------
Ethernet Switch / Router
SCADA / HMI
MQTT Broker
Cloud Platform
Monitoring Server

Cloud PLC RPI-0 acts as the bridge between industrial field devices and network-based monitoring systems.

W5500 provides stable Ethernet communication for the network layer.

Applications

Cloud PLC RPI-0 can be used in many industrial applications, including:

• Production monitoring
• Process monitoring
• Utilities monitoring
• Condition monitoring
• Environment monitoring
• Industrial smart grid
• Leakage detection
• Generator monitoring
• Cold storage monitoring
• Warning message systems
• SCADA applications
• District metering
• Water treatment
• Greenhouse monitoring

These applications match the product’s positioning as an edge gateway, automation controller, data logger, and edge processing node.

Conclusion

Cloud PLC RPI-0 is an industrial programmable controller designed for automation, monitoring, data logging, and edge processing.

By combining isolated analog inputs, analog outputs, current transmitters, digital inputs, digital outputs, relay outputs, RS485, RS232, Wi-Fi, Bluetooth, SD card storage, cloud connectivity, and industrial protocol support, the product can be used in many industrial monitoring and control applications.

With WIZnet W5500, Cloud PLC RPI-0 can provide reliable wired Ethernet communication for SCADA, HMI, cloud platforms, monitoring servers, and industrial networks.

This case shows how W5500 can be applied to Raspberry Pi-based industrial PLC and edge gateway products that require stable Ethernet connectivity.

Q1: What is Cloud PLC RPI-0?

A1:
Cloud PLC RPI-0 is an industrial programmable controller for automation, remote monitoring, data logging, and edge gateway applications.

Q2: Which WIZnet product is used?

A2:
It uses WIZnet W5500 for Ethernet communication.

Q3: Why is W5500 useful in this product?

A3:
W5500 provides reliable 10/100 Ethernet connectivity with a hardwired TCP/IP stack, helping the controller communicate with SCADA, HMI, cloud platforms, and monitoring servers.

Q4: What I/O does Cloud PLC RPI-0 provide?

A4:
It provides 8 isolated analog inputs, 2 analog outputs, 2 current transmitters, 4 isolated digital inputs, 4 isolated digital outputs / PWM, 2 relay outputs, RS485, RS232, USB, Wi-Fi, Bluetooth, and SD card storage.

Q5: What protocols does it support?

A5:
It supports Modbus, MQTT, JSON, RESTful API, TCP/UDP, SNMP, OPC, FTP, and SSL secure communication.

Q6: What applications can use this product?

A6:
It can be used for production monitoring, process monitoring, utility monitoring, condition monitoring, environment monitoring, smart grid, leakage detection, generator monitoring, cold storage monitoring, SCADA, district metering, water treatment, and greenhouse monitoring.
