The smallest Ethernet module in the world. C-Type Ethernet.
With USB-C Type, not only USB communication but also Ethernet!
3
Components
Hardware components
WIZnet - W55RP20
x 1
Project description

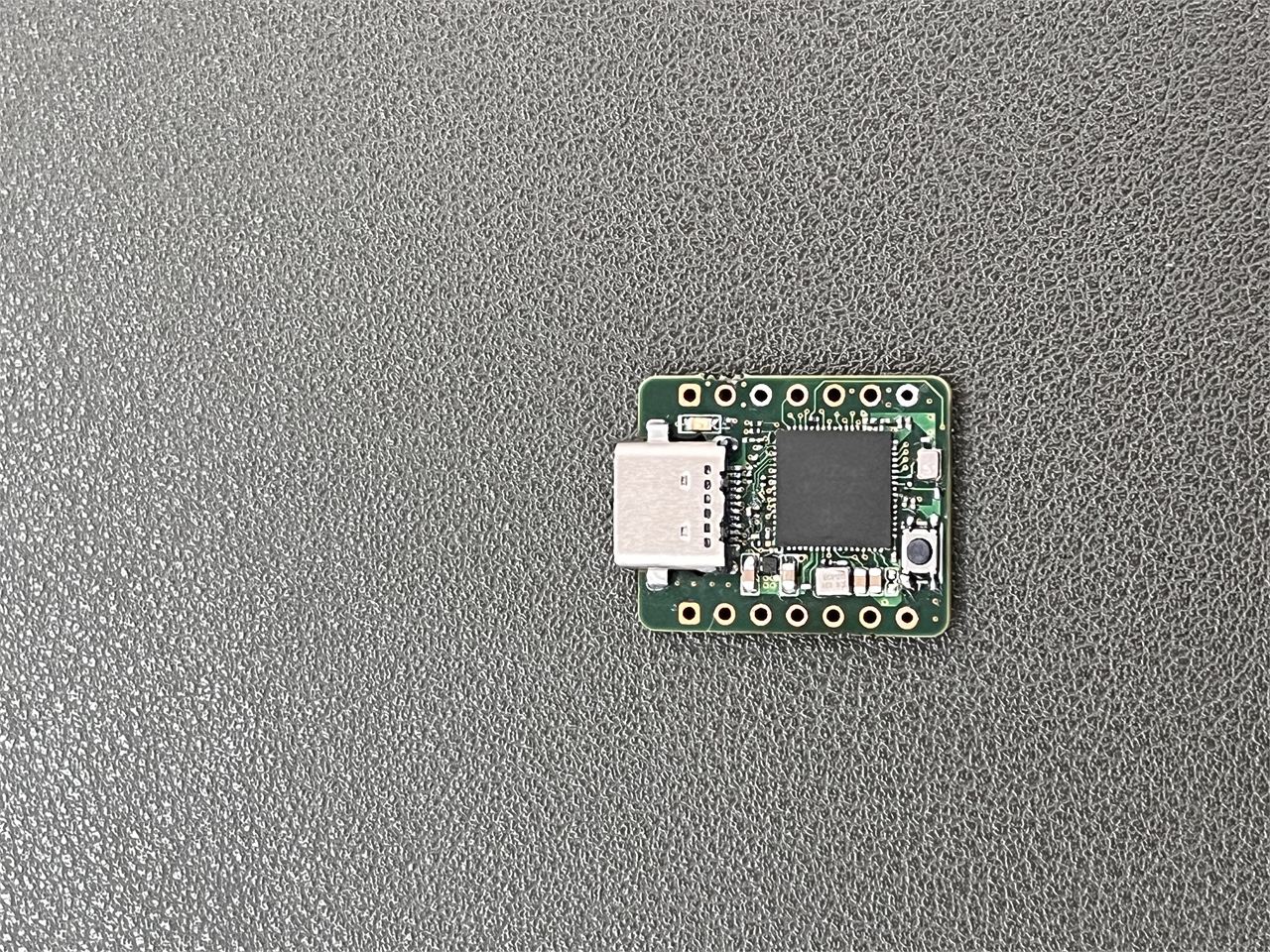

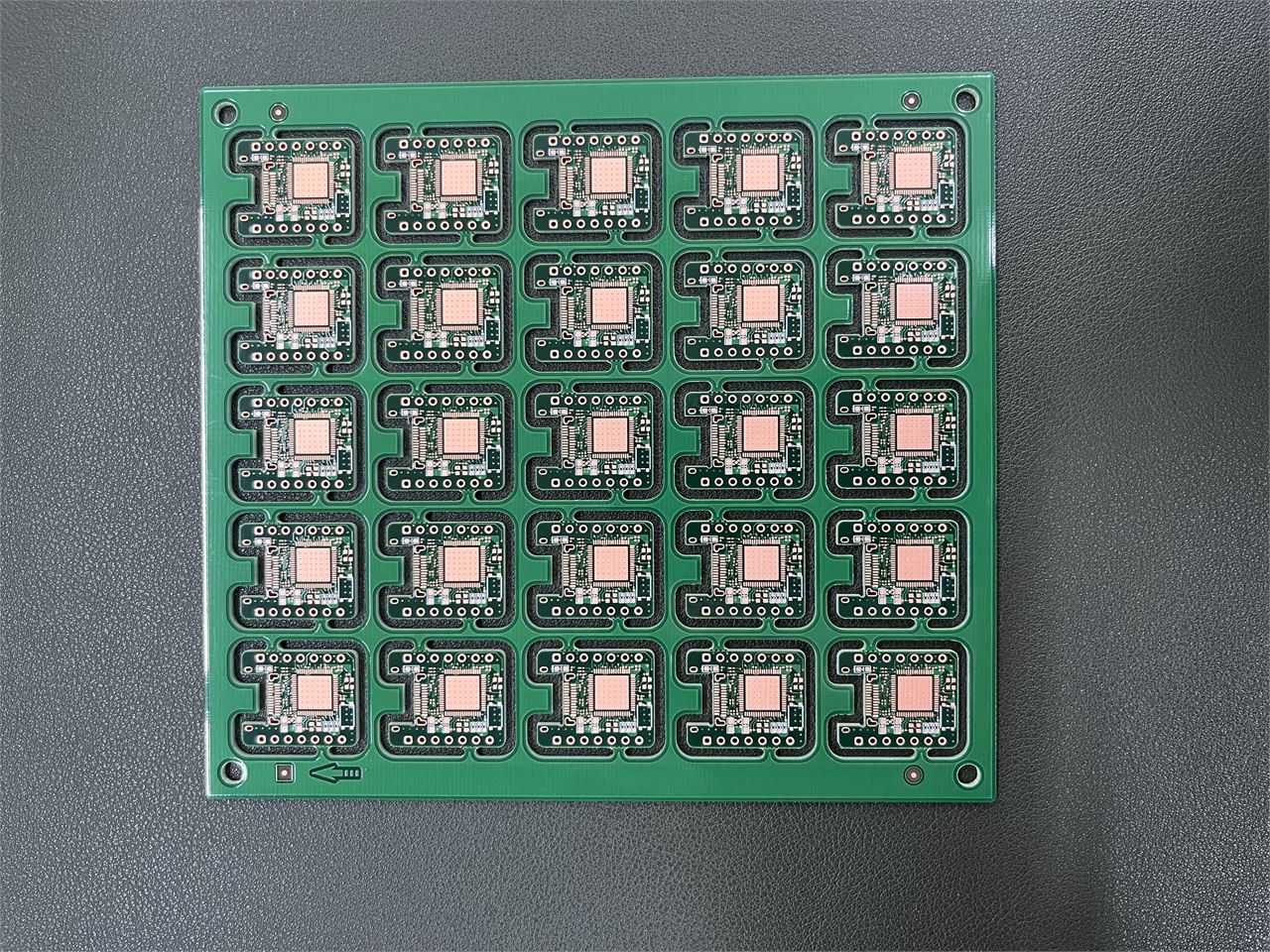

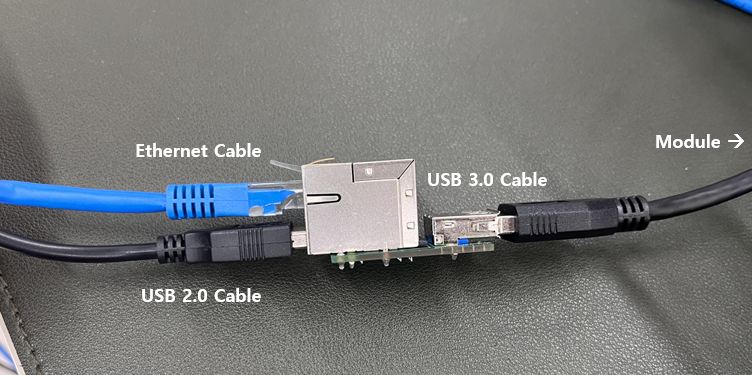

The project I posted earlier has been completed. The setup aims to use USB-C Type to enable Ethernet and USB 2.0 simultaneously. For more details, please refer to the link below. It's time for the USB C Type Ethernet to be commercialized The main chip of this module is WIZnet's new chip, the W55RP20. This chip combines Raspberry Pi's RP2040 and WIZnet's W5500. Think of it as adding Ethernet functionality to the RP2040. This makes it perfect for small projects requiring Ethernet connectivity. It's now time to actually produce the board for which we previously worked on the artwork. Here is…
