CiferTech TEMPO IoT Edge Device: In-Depth Analysis

TEMPO is an IoT edge device developed by CiferTech that combines an ESP32 microcontroller with a WIZnet W5500 Ethernet chip and various sensors (like a DHT22 temperature/humidity sensor)​. As an edge node, TEMPO collects data from its sensors and uses the W5500 to facilitate reliable communication between the device and the internet (with a router or mobile hotspot acting as the network gateway)​. This analysis examines why the W5500 was chosen for the project, how it interfaces with the ESP32, the performance benefits it provides, the development challenges encountered, and the advantages it offers in IoT and edge computing scenarios.

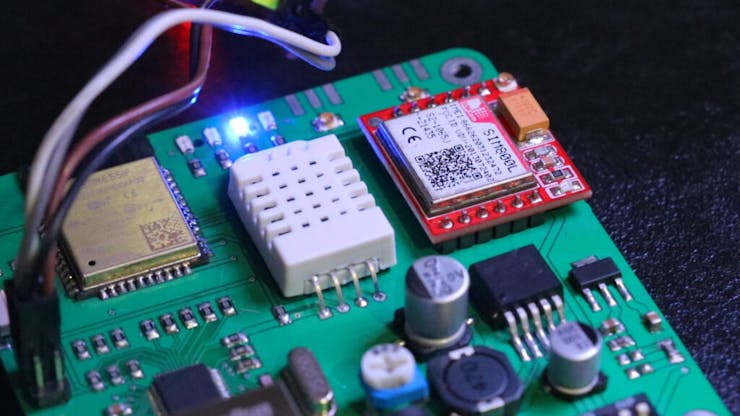

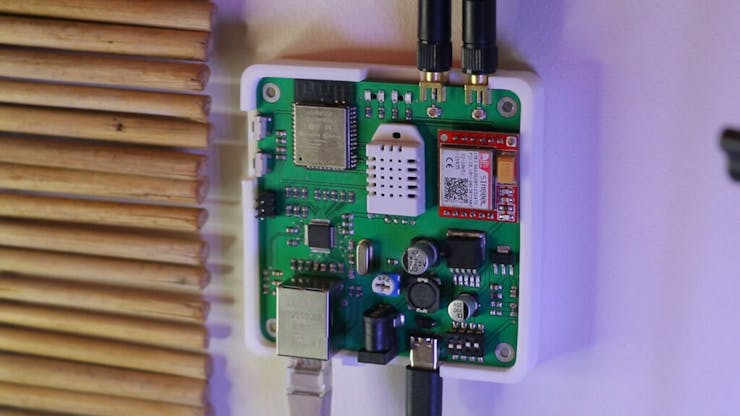

 CiferTech’s TEMPO device (green PCB on the right) connected via an Ethernet cable to a router (left). The board features an ESP32-Wroom module, a WizNet W5500 Ethernet controller (with its RJ45 port and magnetics jack labeled “HanRun”), a DHT22 sensor (white module for temperature/humidity), and a SIM800L GSM module (red board) among other components​. Using the W5500 chip, TEMPO can directly plug into a network for internet connectivity, rather than relying solely on Wi-Fi.​

W5500 in TEMPO: Rationale and Technical Advantages

The WizNet W5500 Ethernet chip was chosen as a core component of TEMPO to provide robust wired internet connectivity and offload network tasks from the microcontroller. The W5500 is a hardwired TCP/IP embedded Ethernet controller, meaning it implements the full TCP/IP network stack in hardware​. This design offers several key technical advantages for the project:

• Ease of Integration: The W5500 integrates a 10/100 Mbps Ethernet controller (MAC and PHY) with a built-in TCP/IP protocol stack and 32 KB of packet buffer RAM​. This “Internet Offload” design makes it straightforward to add reliable Ethernet networking to an embedded system without needing a complex OS or heavy networking software on the ESP32​. In TEMPO’s case, the chip provides an out-of-the-box networking solution that works with the ESP32 over a simple SPI interface.

• High Performance Networking: Offloading networking to the W5500 yields better throughput and stability than using a software TCP/IP stack on the ESP32​. The W5500 can handle up to 8 independent socket connections simultaneously in hardware​. It supports high-speed SPI communication (up to 80 MHz), allowing fast data transfer between the ESP32 and the Ethernet controller​. The dedicated hardware handles packet processing and buffering, ensuring consistent network performance even under heavy load​.

• Reliability and Stability: With the W5500 managing network traffic, the system is more stable and deterministic. The hardware TCP/IP engine ensures application and network performance remain predictable under varying load, unlike software-based networking that might stall the microcontroller​. It also provides a degree of “always-on” reliability – the W5500 will handle background tasks like packet retransmission or TCP handshakes even if the ESP32 is busy with other tasks.

• Security (Hardwired TCP/IP): A hardwired network solution can be more secure against certain network attacks. WIZnet’s hardwired TCP/IP chips are described as an “unattackable hardware network engine” that can inherently block malicious network traffic (e.g. it can discard flooding packets at the hardware level)​. This means the W5500 is resilient to attacks like SYN floods or packet injection, which might overwhelm a microcontroller’s software stack. For an IoT edge device expected to run unattended, this added robustness is a significant benefit​.

• Reduced MCU Load: By handling the low-level networking internally, the W5500 frees the ESP32 from managing TCP/IP packet assembly, acknowledgments, retries, etc. This reduces the CPU and memory burden on the ESP32, which can improve overall system responsiveness. In essence, the ESP32 can devote more resources to sensor data processing or other tasks while the W5500 takes care of network communication in the background​​.

In summary, the W5500 was used in the TEMPO project because it provides a reliable, high-performance Ethernet interface that is easy to interface with the ESP32. Its hardware-offload approach offers better performance and stability than the ESP32’s built-in wireless networking alone, which is crucial for a next-level IoT edge device​

ESP32 and W5500 Integration & Network Configuration

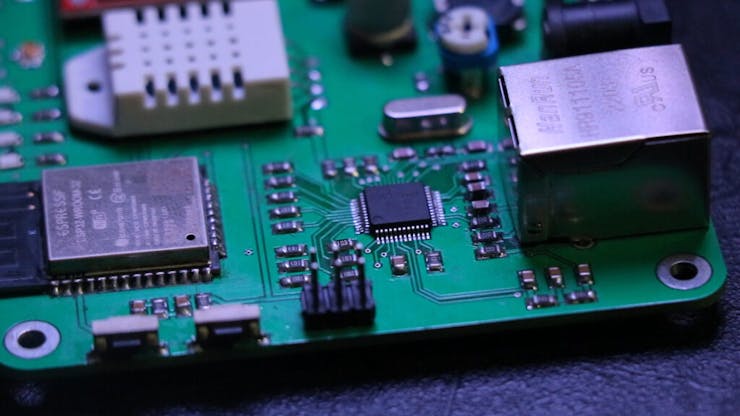

In TEMPO’s design, the ESP32-Wroom microcontroller is responsible for running the application logic (reading sensors, preparing data, etc.), while the W5500 chip serves as the gateway to the network. The integration between the ESP32 and W5500 is achieved through the Serial Peripheral Interface (SPI) bus. The W5500 communicates with the ESP32 over SPI using a set of pins (MOSI, MISO, SCK for data transfer and a chip-select pin) plus interrupt lines for signalling network events. This SPI link allows the ESP32 to configure the W5500’s network parameters and send/receive data packets at high speed​. According to the project documentation, using SPI ensures efficient data exchange between the microcontroller and the Ethernet controller, enabling TEMPO to transmit sensor data with minimal latency​. Once connected, the network configuration follows a typical Ethernet setup. The W5500 is initialized by the ESP32 with network settings such as a MAC address and either a static IP or obtained via DHCP (the exact method isn’t explicitly stated, but the W5500 supports DHCP through library support). In the TEMPO project scenario, the device would plug into a router or network switch via an Ethernet cable. The router (or a mobile hotspot acting as one) assigns an IP address and serves as the gateway to the internet​. With this configuration, TEMPO can reliably send the collected sensor data to remote servers or cloud platforms for analysis and storage​. The use of a wired connection means once the cable is connected and the network is configured, there is a seamless and constant link to the local network/Internet, without needing to worry about Wi-Fi credentials or signal strength.

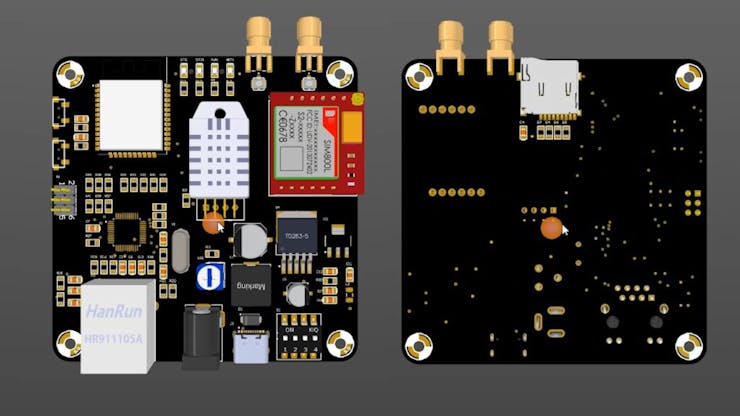

 PCB design of the TEMPO device (front and back). On the left, the front side of the board shows the placement of major components: the ESP32-Wroom module (top-left, for processing and Wi-Fi/Bluetooth capabilities), the WizNet W5500 Ethernet controller and its HanRun HR911105A RJ45 network port (bottom-left), a DIP switch and programming buttons (left edge) for configuration, the DHT22 sensor (center, white slotted module for temperature/humidity), and the SIM800L cellular module (top-right, red board) among various power regulators and connectors. This hardware layout illustrates how the ESP32 and W5500 are incorporated together – the ESP32 module interfaces with the W5500 chip (located near the RJ45 jack) via SPI lines on the PCB, achieving a compact yet feature-rich IoT device design​.

With the hardware linked, the ESP32 runs firmware (for example, an Arduino sketch or ESP-IDF code) that uses a library to drive the W5500. Common libraries (like the Arduino Ethernet library) provide an API to set up the W5500, open sockets, and send/receive data using TCP or UDP. In TEMPO, after initialization, the device can use the W5500 to establish connections – for instance, it might contact an MQTT broker, push readings to a RESTful API, or even host a small web server for monitoring. The W5500 handles the low-level network activity, so from the ESP32’s perspective, sending data over Ethernet is as straightforward as writing to the SPI interface after the connection is established. This design also means the TEMPO device can be dual-homed in the future – the ESP32 could potentially use Wi-Fi or cellular as alternative connectivity, but the primary design centers on the wired Ethernet provided by W5500 for reliability.

Performance Comparison: Using W5500 vs. Not Using It

One of the important considerations in TEMPO’s design is how the W5500 Ethernet solution compares to other approaches (such as using the ESP32’s built-in Wi-Fi or another network interface) in terms of performance and reliability:

With W5500 (Hardware Ethernet): Using the W5500 chip, TEMPO benefits from wired Ethernet throughput and consistency. The hardwired TCP/IP offload means network tasks impose little load on the ESP32, allowing it to maintain responsive performance even during heavy network communication​.

•  The W5500’s design supports high data rates over SPI and can sustain stable throughput up to the 100 Mbps range of 100BASE-T Ethernet (and even 100 Mbps link speeds for bursts) given its 80 MHz SPI capability and internal buffering​. In practice, this translates to fast and predictable data transfers for sensor readings or control commands. The dedicated 32 KB buffer and multi-socket support ensure that even if TEMPO handles multiple connections or a large burst of data, packets are buffered and processed efficiently without dropping​. Furthermore, the latency on a wired connection is low and stable – typically a few milliseconds across a local network – which is ideal for real-time IoT data exchange. The hardware TCP/IP stack also means that error handling (retransmissions, checksums, etc.) and even extreme cases like network flooding are managed by the W5500, maintaining stability where a software solution might falter​.
   Also, as shown in the image above, implementing TCP/IP using W5500 as a TOE provides significantly better performance than implementing it through software.

• Without W5500 (Wi-Fi or Software Networking): Relying solely on the ESP32’s Wi-Fi connectivity would mean the microcontroller (and its wireless radio co-processor) must handle the full network stack and maintain a wireless link. This introduces more variability in performance. Wi-Fi throughput on an ESP32 can be decent for many applications, but it is subject to environmental factors (signal strength, interference, network congestion) that can cause latency spikes or dropouts. In a busy or RF-noisy environment, the wireless link might slow down or momentarily disconnect – problems a wired Ethernet connection avoids​. Additionally, servicing network traffic in software can consume significant CPU cycles and memory. The ESP32 has a limited amount of RAM, and heavy network tasks (such as multiple TCP connections or large data transfers) could strain its resources if not offloaded. Under load, a software TCP/IP stack might also become less responsive; for example, if bombarded with many requests or data packets, an ESP32 could experience timing issues, whereas the W5500 hardware would gracefully handle a similar scenario by queuing packets in its buffer​. In summary, a Wi-Fi-based design without the W5500 might be easier in terms of having one less chip, but it trades away the consistency and robustness that the W5500 provides. Wireless is inherently less stable (though it offers mobility), and purely software-based networking on a microcontroller is generally slower and less predictable than a dedicated hardware engine​​.

To quantify the difference, consider that the W5500 can maintain multi.ple socket connections and manage high throughput simultaneously, something that would be challenging for the ESP32’s internal networking if it had to handle, say, a sensor data upload and a web interface at the same time. With the W5500, TEMPO could be pushing data to a cloud server while also listening on another socket for incoming commands, all with minimal impact on the ESP32’s sensor-reading loop. Without it, the ESP32 would have to juggle these in software, likely leading to slower response or missed sensor readings under high network load. Thus, the inclusion of the W5500 in TEMPO provides a clear performance uplift in terms of throughput, reliability, and multitasking capability compared to designs that do not use this dedicated Ethernet controller.

Development Process and Technical Challenges

Building the TEMPO edge device required addressing various development challenges to bring together its hardware and software components:

• Hardware Integration: Designing a custom PCB that integrates diverse components (microcontroller, Ethernet controller, cellular module, sensors, etc.) was a primary challenge. The board had to accommodate the ESP32-Wroom module, the W5500 chip and RJ45 Ethernet jack, the DHT22 sensor, and the SIM800L GSM module, along with support circuitry. Careful layout was needed to ensure that the digital logic (ESP32 and W5500) did not interfere with the analog sensor readings or radio modules. The presence of antennas (for Wi-Fi/Bluetooth on the ESP32 and for cellular on the SIM800L) alongside the Ethernet port required planning to minimize electromagnetic interference. Overall, consolidating all these features on a compact board (with mounting holes at the corners for enclosure) exemplified a significant hardware integration effort.

• Power Supply and Stability: The TEMPO device is intended to be deployed in always-on scenarios, so a reliable power supply was critical. The design includes an LM2576 switching regulator and an LM1117 linear regulator to step down and regulate the input voltage to the required 5V and 3.3V levels used by the board. One challenge was ensuring these regulators provided enough current for peak loads – for instance, the SIM800L can draw large current bursts when transmitting, and the W5500 needs a stable 3.3V for its Ethernet PHY. The team had to incorporate sufficient decoupling capacitors and possibly a power jack that could accept a wide input range (since TEMPO might be powered by a battery pack or a wall adapter via the barrel jack). Managing heat dissipation for the regulators and avoiding voltage drop during high-load events (like network transmission combined with sensor readings and GSM usage) were important considerations in the development.

• Firmware and SPI Communication: On the software side, getting the ESP32 to communicate with the W5500 reliably was a key step. The developers leveraged existing libraries (the WIZnet/W5500 Ethernet library in Arduino, for example) to jump-start development, but they still needed to configure the SPI interface correctly (choosing appropriate SPI pins on the ESP32 and ensuring the clock speed and mode were set per W5500’s specs). Debugging the SPI communication would have been a challenge if any wiring or timing issues arose. Additionally, writing the firmware to initialize the W5500, handle DHCP or static IP assignment, and maintain network connections required careful testing. Any bugs in the network handling could prevent TEMPO from connecting to the internet, so part of development would involve testing the device on a local network, verifying that sensor data could be transmitted to a server consistently.

• Sensor Integration and Timing: TEMPO’s purpose is to collect and forward sensor data, so the code needed to reliably read the DHT22 sensor and send the data out at defined intervals. The DHT22 has its own timing requirements for communication (it uses a one-wire protocol). Ensuring that reading the sensor (which can take a few milliseconds) did not conflict with network communication routines was something to fine-tune. The ESP32, being dual-core, could potentially dedicate one core to handle networking (or use the OS’s task scheduling) and one for sensor reads. However, in the simpler Arduino environment, the code likely runs on a single core, so cooperative scheduling was needed. This was tackled by using non-blocking network calls or short delays as necessary. A challenge here was achieving reliable data flow: making sure that no readings were missed and no network packets were dropped. Logging and testing were performed to validate that data arrives at its destination as expected.

• Feature Expansion and Debugging: The project was a work in progress, with future features planned, which posed additional forward-looking challenges. The developer listed upcoming goals such as adding a private web server interface, utilizing the SIM800L for cellular connectivity, and implementing data logging functionality​. This means the initial development had to keep these in mind — for example, writing modular code that could later accommodate a web server, or designing the PCB with the SIM800L present even if it wasn’t fully utilized yet. One immediate challenge noted was fixing existing bugs​, which is typical as the system is tested: issues might include network hiccups, sensor inaccuracies, or power resets. Each new feature (like the web server) would introduce more complexity (e.g., handling simultaneous Ethernet client and server roles, or buffering sensor data for logging). The TEMPO project’s development was iterative, with testing at each stage to iron out problems before moving to the next feature.

Throughout the development process, leveraging community resources and examples was undoubtedly helpful. CiferTech’s documentation references the GitHub repository and Hackster article for sharing the design, and thanks a PCB sponsor (JLCPCB) which implies multiple PCB iterations were made​. By overcoming these challenges, the result was a functioning prototype that demonstrated the viability of an ESP32 + W5500 based edge device, setting the stage for future enhancements.

Benefits of W5500 in IoT and Edge Computing Environments

Using the W5500 Ethernet controller in an IoT/edge device like TEMPO yields several broader benefits for deployments:

• Reliable, Low-Latency Connectivity: In many IoT and edge computing scenarios, a stable network connection is vital for real-time data transfer and control. The W5500 provides a wired Ethernet link which is inherently more stable than wireless. This means no dropped connections due to radio interference and a consistent latency profile​. For applications like industrial monitoring or smart infrastructure, this reliability ensures critical sensor data and commands are delivered on time without the unpredictability of Wi-Fi. The W5500’s ability to maintain a steady connection makes it ideal for scenarios where devices must stream data continuously or perform timely actions based on network signals​​.

• High Performance and Throughput: Edge computing devices often need to send significant amounts of data or handle multiple network interactions (for example, forwarding data to a cloud server while listening for remote configuration updates). A W5500-equipped device can handle high throughput demands thanks to its hardware acceleration and memory buffer for network traffic​. Even under heavy network usage, the hardware stack keeps performance high, which is important if the edge device is aggregating data from many sensors or streaming sensor readings rapidly. This high performance networking can enable more advanced edge use-cases, such as local data caching or pre-processing results and then batch-uploading them efficiently to cloud services.

• Reduced Maintenance and Debugging: Devices that use a proven hardware network stack can be easier to maintain in the field. Since the W5500 manages the low-level networking, there's less chance of obscure networking bugs that sometimes plague software stacks (like memory leaks, buffer overflows under high traffic, etc.). The networking behavior of W5500-based devices is more predictable and has been thoroughly tested by the manufacturer. For IoT deployments, this means less time spent debugging connectivity issues and more time with the device doing its intended job. It also simplifies development – engineers can use well-documented libraries for the W5500, shortening development cycles.

• Security and Robustness: Edge devices are often deployed outside of secure data centers, sometimes in public or unmonitored spaces, making them targets for attacks. A W5500 offers a layer of security by virtue of its design: it inherently handles and can fend off certain network-based attacks without the MCU even being aware. For example, a flood of bogus packets won’t easily crash the W5500; it will drop excessive packets and maintain its operation​. This hardware hardening means an IoT device is less vulnerable to simple denial-of-service attempts. Moreover, using wired Ethernet can be more secure than Wi-Fi (which is susceptible to sniffing or brute-force password attacks if not managed properly). A wired device behind a router firewall, sending data out via the W5500, reduces the attack surface compared to an openly Wi-Fi connected device.

• Scalability and Interoperability: W5500-based designs are MCU-agnostic and do not require an operating system, which makes them highly portable across different projects and scalable in production​. For edge computing, this means a design like TEMPO could be replicated with different microcontrollers or expanded to a fleet of devices without needing bespoke network stack development for each. Any microcontroller that can toggle SPI (which almost all can) can interface with the W5500 and get instant Internet capability​. This interoperability is a boon for IoT developers: for instance, one could move from an ESP32 to another chip in the future and still reuse the W5500 networking part of the design. It also eases integration with existing infrastructure, since W5500 speaks standard Ethernet – IoT devices using it can plug into any standard network, use DHCP, and communicate with cloud services using common protocols (TCP/UDP, HTTP, MQTT, etc.) without compatibility issues.

In conclusion, the inclusion of the W5500 Ethernet controller in the TEMPO project underscores a design philosophy well-suited to IoT edge computing: leveraging dedicated hardware to enhance reliability and performance. By offloading networking to the W5500, TEMPO achieves a level of network stability and efficiency that would be hard to attain with an MCU alone. This translates into an edge device that can be trusted to run continuously, deliver data on time, and handle the demands of a connected world with minimal oversight – qualities highly valued in any IoT or edge computing deployment​.
