Room Thermostat – Arduino + Ethernet

Project describes basics of thermostat and its implementation with Arduino and Ethernet shield Wiznet W5100.
components
Hardware Components
HC-SR04(Generic)
X 1
Ultrasonic Sensor
Software Apps and online services
arduino IDE
details

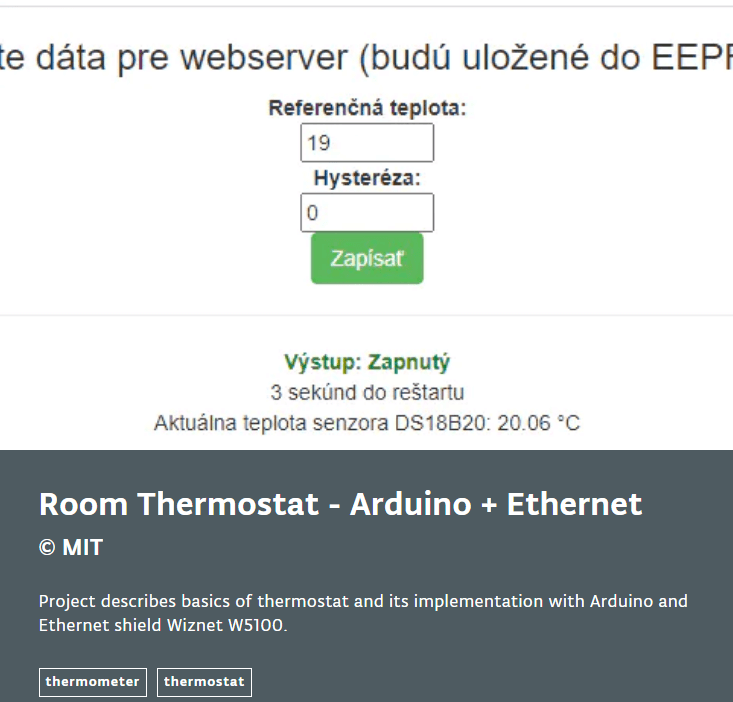

Room Thermostat - Arduino Ethernet Main.png

Project describes basics of thermostat and its implementation with Arduino and Ethernet shield Wiznet W5100.

The program implementation for the project can be found at: https://github.com/martinius96/termostat-ethernet/The implementation contains programs for the static / dynamic IPv4 address assigned to the Ethernet shield.

The thermostat is only intended for indoor temperatures! (above 0 ° C), to which the system logic is adapted. It is possible to replace an existing room thermostat with a thermostat, it is possible to temporarily replace a thermostat in a refrigerator, maintain a constant temperature in a terrarium and the like.

documents
Code
Termostat - Arduino + Ethernet W5100 / W5500
Schematics
Termostat - Arduino + Ethernet W5100 / W5500
