HSM5500C

HS-NM5500C module is a product that integrates W5500 and necessary peripheral components on a circuit board, The functions of HSM5500C and HS-NM5500A are the same, but the module package is different.
introduction
The functions of HSM5500C and HS-NM5500A are the same, but the module package is different. They are all products that integrate W5500 and necessary peripheral devices on a circuit board to provide customers with convenient applications. It maintains all the functions and performances of W5500, except that the interface and power supply between W5500 and MCU are led out through the header.But different from HS-NM5500A, HSM5500C only has network transformer installed on board, no RJ-45 seat. When the user uses it, the RJ-45 seat is placed on the user board.HSM5500C has an Ethernet connection status indicator drive output. Users need to connect an external indicator to view the Ethernet connection status.Compared with HS-NM5500A, HSM5500C has more flexible and convenient installation.
how to use

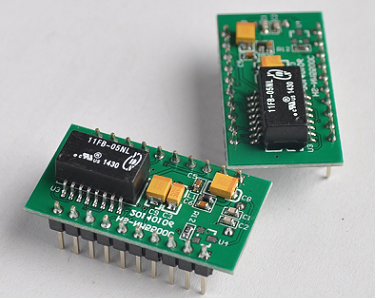

09-24 3.png
