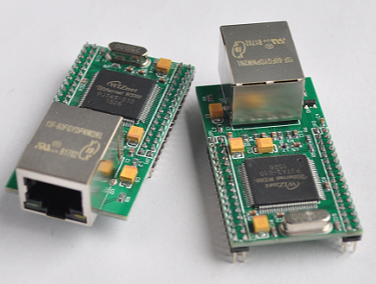

HS-NM5300A module is a product that integrates W5300 and necessary peripheral devices on a circuit board to provide customers with convenient applications.
- It maintains all the functions and performance of W5300;
- Lead the interface between W5300 and MCU and the power supply through the pin header;
- The RJ-45 seat has an internal integrated network transformer, and the network cable can be directly connected to the module;
- The indicator light on the RJ-45 can indicate the Ethernet connection status of W5300;
- DC 3.3V power supply;
- Strict aging test guarantees the high quality of products.
