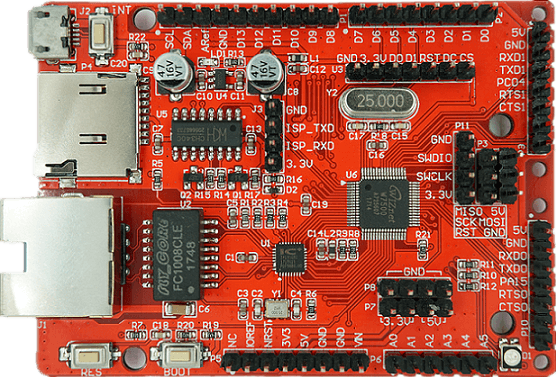

W7500-EVB

W7500 development board compatible with Arduino interface, can support cmsis-dap USB and ISP mode firmware burning.
introduction
W7500 is a single chip Internet of things solution, internal integration of the ARM Cortex-M0, 128KB Flash and embedded devices for networking hardware TCP/IP stack kernel. The selection of W7500 development board can quickly complete product development. At the same time, W7500 development board is compatible with Arduino interface, and can support cmsis-dap USB and ISP mode for firmware burning.Hardware resourcesUSB Mini (power & serial port)RJ45 (external network transformer)Arduino compatible interfaceLow SWD interfaceLow GPIO pinsLow ISP pinsother 5V USB power supply or 5V power supply terminalRESET button and BOOT buttonLow RGB LEDMicro SD card slot
how to use
