WIZnet WIZ550io/W5500 Ethernet module (with Espruino Pico ‘Shims’)

'Shims' for the Espruino Pico are small adaptor boards that you can solder to the Espruino Pico to make it easier to attach devices. For example: WIZnet W550io Ethernet
ORIGINAL POST
By -
components
Hardware Components
WIZ550io
X 1
Espruino Pico
X 1
Shims
X 1
details

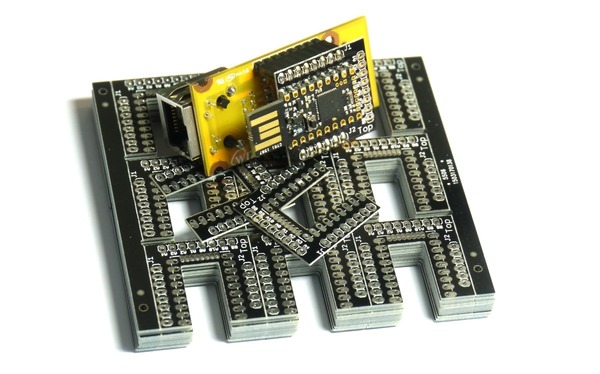

‘Shims’ for the Espruino Pico are small adaptor boards that you can solder to the Espruino Pico to make it easier to attach devices. For example: WIZnet WIZ550io Module

In order to use WIZ550io in Espruino, you had to connect with wire. Like the picture below :

However, if you use Shims, you can connect WIZ550io directly to Espruino.

The Shim available for the Espruino Pico helps to adapt the W550io to fit onto the Pico. Please see the video below:
