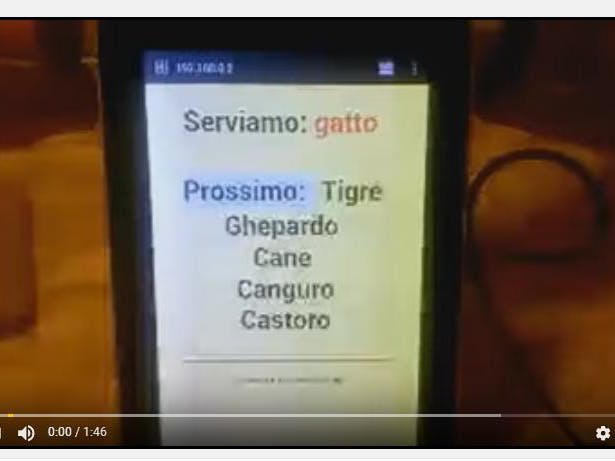

NO CODE NO PAPER.jpg

Hello.

I am new in this blog. I sometime use Arduino for various projects.

My latest idea developed this summer during holidays: “NO CODE NO PAPER”, a system of queue management that does not require the use of paper. It has bothered me a long time to see printed unnecessarily.

For the system, I imagined a totem with a barcode reader, or, in order to be able to keep them around, I thought to use customer cards, the ones most people already have, those cards that collect points for things we all use (the pharmacy, distributor, shopping center, etc.).

The idea is that the customer, with his card or with a card of the dispenser, goes in to the totem for the reader, the player reads the text written in the barcode of the card and put it in the list queue showing in the monitor.

For the hardware I used

1. Arduino Uno + USB Arduino Shield combined with a barcode reader, all serving to read the cards;

2. Arduino Mega + Arduino Ethernet Shield Ethernet + USB converter to the server system.

3. A tablet with Android as output units.

The function system as follows

The Arduino Mega board generates a web page for the tablet, reads the SD card CODAx.TXT the file containing the current (SD tail needed in case of a blackout), and press the on-screen tail. Below controls the serial port Serial1 on hold if the text comes from it.

The Arduino Uno board with USB Shield joined with the barcode reader will send the text detected by the reader to Serial1 the Arduino Mega.

For the project, I used two different Arduino boards in order not to complicate the whole thing. But during trials, I also checked out different solutions with Wifi, with the Arduino Mega as an Access Point, and Client Access with Arduino WiFi Shield. Though two different Arduino boards made it looks slimmer.

Hope you like it.

Camillo

documents
Code
SKETCH FOR ARDUINO UNO + USB SHIELD
SKETCH FOR ARDUINO MEGA + ETHERNET SHIELD
Schematics
sketchNO CODE NO PAPER
