Arduino connecting Internet without Router

In the previous post we’ve seen how to connect the Arduino ETHERNET SHIELD to a Router directly & upload LM35 data to Thingspeak.
ORIGINAL POST
By alselectro
components
Hardware Components
X 1
Software Apps and online services
details

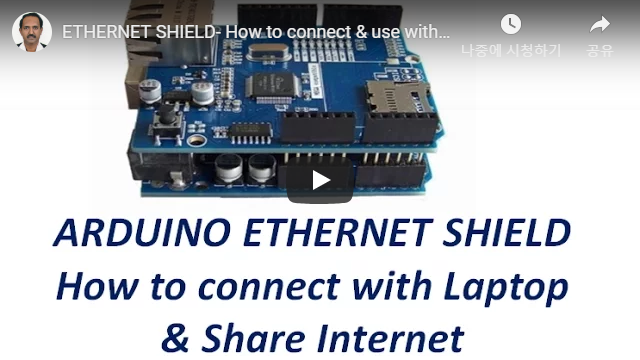

arduino internet connect.png

What if  you do not have physical access to your Router & your Laptop is connected over WIFI to the Router. Or you cannot run a RJ45 cable from Router to Ethernet shield.

First step is to enable SHARING of your existing internet. Using Laptop as WiFi to Ethernet Gateway.

Open control Panel > Network & Internet > Network & Sharing Center

Click on the existing Internet connection

click PROPERTIES > SHARING

Enable SHARING of Internet connection

Connect Arduino USB cable to Laptop USB port, And Arduino Ethernet cable to Laptop Ethernet port

check UNINENTIFIED NETWORK

click NEW Network > select PROPERTIS > double click TCP/IPV4

Set IP address as Gateway Address of the new network formed by Ethernet shield.

If you do not see any IP, just type manually the IP

RUN > CMD > IPCONFIG/ALL

you can check the IP you set.

This is now the Gateway IP & Ethernet shield will be allotted IP in this range.



Now fullfill the Arduino Code.

Open Arduino IDE > File > Examples > Ethernet > DhcpAddressPrinter

Upload Code > Open Serial Monitor > check my IP address



If you want to learn more about this tutorial, please enter the original link on top.

Thank you
