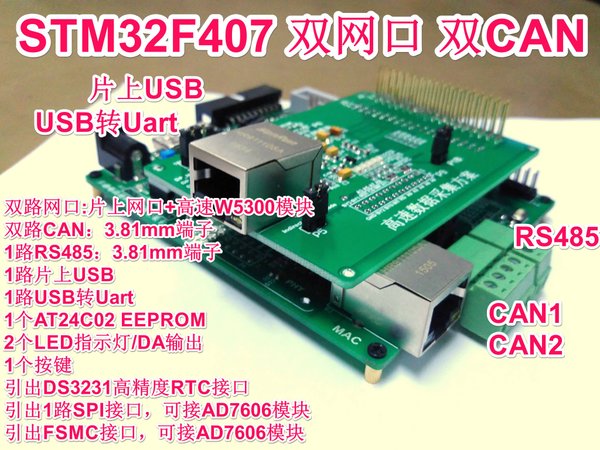

STM32F407 Dual Ethernet Dual CAN bus

STM32F4 / F1 dual Ethernet port development board
ORIGINAL POST
By wiznetmuseum
details

STM32F4 / F1 dual Ethernet port development board

Specification

  • MCU: STM32F407
  • Dual Ethernet: Onboard +  W5300
  • Dual CAN
  • 1 RS-485
  • 1 USB
  • 1 USB to UART
  • 1 AT24C02 EEPROM
  • 2 LED indicators / DA output
  • Lead out DS3231 high precision RTC interface
  • Lead out 1 SPI interface, can be connected with AD76006 module
  • Lead out FSMC interface, can be connected with AD76006 module
