Arduino SPS 24V I/O Smart Home PCB strommessung IOBroker Modbus
Arduino SPS 24V I/O Smart Home PCB current measurement IOBroker Modbus
WIZnet - W5500
x 1
This product has the following features:
- 16 digital 24V inputs
- 16 digital 24V outputs (0.5A)
- 4 230V inputs
- 4 current measurements with 20A each (Peak 100A)
The product is offered with all components fully assembled, except for the except for the print terminals and the pin strips. The price refers to the board as seen in the last two pictures.

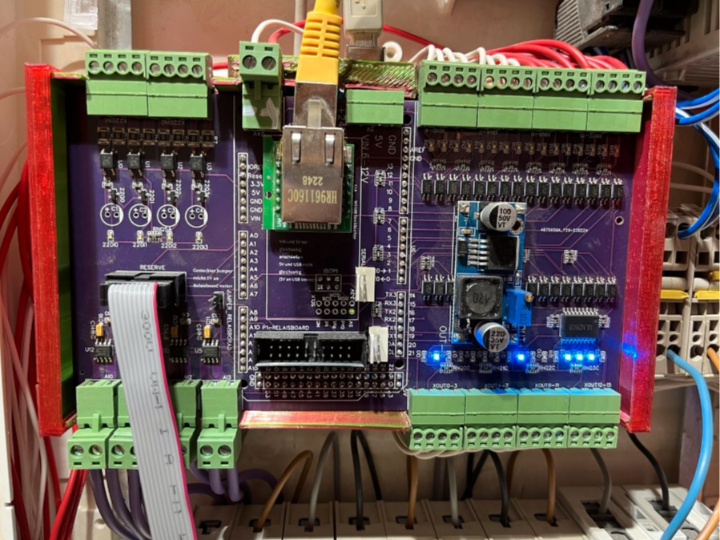

There is an additional cost if you want to purchase the product in a fully operational state as shown in the first picture. In this case, the product is offered fully operational, with additional components such as the W5500 Ethernet shield Mini, Pins and print terminals, and Arduino mega.
The product comes with a sketch that is set up to send the status of the EAs to the IObroker via HTTP requests and receive commands. It is also accessible via Modbus. Experience with reading various Modbus devices can also be shared.
The product is offered in a fully operational state, fully functional tested with an Arduino Mega for 50€. A 3D printed case for fuse rail mounting can also be provided upon request.
