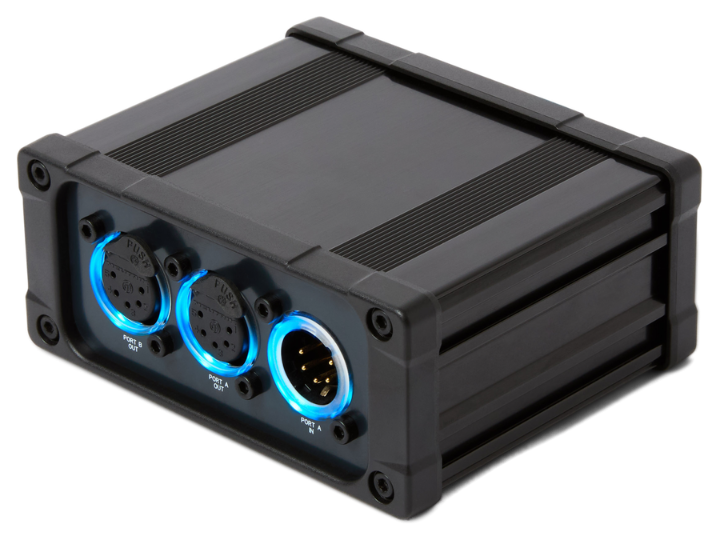

dualETH

Two-port Art-Net / sACN gateway with native WS2812 pixel output.

COMPONENTS

PROJECT DESCRIPTION

Two configurable DMX ports backed by dedicated W5500 Ethernet hardware. Full Art-Net 4 + sACN (E1.31), RDM on Port A, native WS2812 pixel output up to 680 pixels per port across 4 universes. Open-source firmware, USB-C for power and updates, optional PoE.

Port A — DMX/RDM out, DMX in, or WS2812 pixel out
Port B — DMX out or WS2812 pixel out
Art-Net 4 up to 325 packets/sec
sACN (E1.31) on either port, multi-universe routing
Web UI configuration, REST API for scripting
5-pin XLR connectors (3-pin available — contact us)
Power draw: 1.15 W (0.232 A @ 5 V)
