Hardware Components

ESP8266, ESP8285, or ESP32 Modules – Core microcontrollers supported by Tasmota firmware (e.g., Sonoff, Wemos D1 Mini, ESP32 DevKit).

Sensors and Actuators – Broad support for DHT22, BME280, PIR, IR receivers, relays, LEDs, buttons, displays, and more.

Power Supply Units – 3.3V regulators or AC-DC converters depending on the board.

USB-to-Serial Adapter – Required to flash Tasmota firmware via UART interface.

Prototyping Tools – Breadboards, jumper wires, and headers for connecting components to GPIO pins.

Software, Applications & Online Services

Tasmota Firmware – Open-source alternative firmware for ESP8266, ESP8285, and ESP32-based devices.

Tasmotizer / ESP Flasher Tools – Tools to easily flash the firmware onto supported hardware.

WebUI (Tasmota Console) – Built-in web interface for configuration, updates, and real-time monitoring.

MQTT Broker – Compatible with platforms like Mosquitto for local IoT messaging.

Home Automation Platforms – Integrates with Home Assistant, OpenHAB, Domoticz, and Node-RED.

KNX Protocol Support – Optional support for professional home automation systems.

OTA Updates – Firmware can be updated over-the-air once initially flashed.

PlatformIO – Recommended development and build environment for Tasmota source code.

Tasmota: Flexible, Local, Cloud-Free Firmware for ESP8266, ESP8285, and ESP32

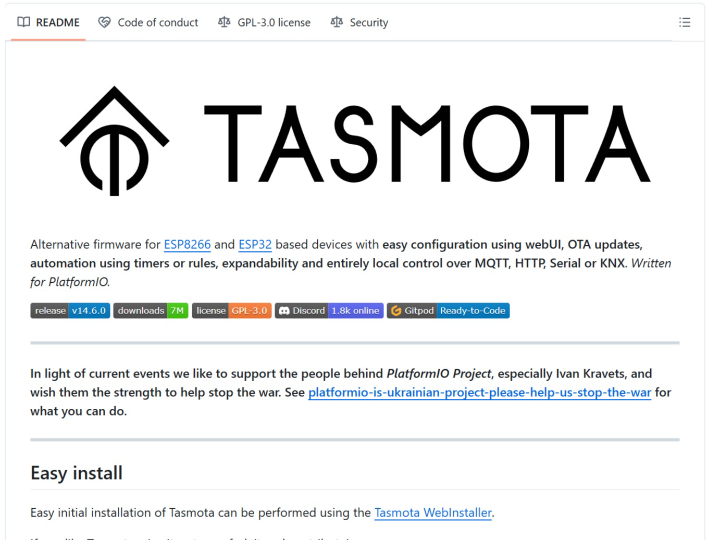

Tasmota is an open-source firmware that turns common ESP-based microcontrollers into versatile, smart automation devices — all without relying on the cloud. According to the official GitHub repository, Tasmota offers easy configuration via WebUI, automation with timers or rules, support for OTA updates, and local control through MQTT, HTTP, Serial, or KNX.

Originally created for ESP8266 and ESP8285, Tasmota now also supports ESP32 through dedicated builds (tasmota32.bin), making it even more powerful for modern IoT applications.

Fully Local Control with MQTT, HTTP, and More

Tasmota is designed to operate entirely on your local network. It communicates via MQTT, HTTP REST API, and serial commands — meaning you retain full control of your devices without needing a cloud connection.

Using MQTT, devices can send sensor data or receive control instructions in real time. Tasmota supports retained messages, telemetry intervals, and flexible topic customization — making it ideal for use with automation platforms like Home Assistant, Node-RED, or OpenHAB.

Easy Configuration via Web Interface

After flashing, Tasmota provides a built-in WebUI (Web Console) that requires no external app or service. From the browser-based dashboard, users can:

Configure Wi-Fi and MQTT credentials

Assign GPIO pins using predefined templates

Update firmware (OTA)

Set up logging, rules, timers, and schedules

View live telemetry and device status

The Template system allows users to define the role of each GPIO pin — enabling support for a huge range of sensors and devices.

Automation with Timers, Rules, and Scripts

Tasmota includes powerful local automation features:

Timers: Schedule events like turning a relay on/off at specific times.

Rules: Define condition-based logic such as "if button pressed, toggle LED".

Berry Scripting: Lightweight scripting language for advanced control.

Backlog Commands: Execute multiple commands in a single string.

These capabilities allow complex automation directly on the device, without external automation platforms.

Wide Ecosystem Compatibility

Tasmota is highly modular and works well with:

Home Assistant (via MQTT Discovery)

Domoticz, OpenHAB, and Node-RED

InfluxDB + Grafana for data logging and visualization

Alexa (via emulation of Hue Bridge or Belkin WeMo)

KNX for professional home automation integrations

Its cloud-free design makes Tasmota ideal for privacy-focused users who want full control of their smart home.

System Architecture Overview

Conclusion and Use Case Potential

Tasmota is a mature, flexible, and powerful firmware that transforms ESP8266, ESP8285, and ESP32 devices into fully-featured IoT endpoints. It is perfect for:

Building DIY smart home devices

Offline/local automation projects

Privacy-first home control setups

Industrial prototyping with sensors, relays, and displays

Its open-source nature, vast hardware compatibility, and complete local control make Tasmota one of the most trusted platforms in the maker and automation communities.
