Project Overview

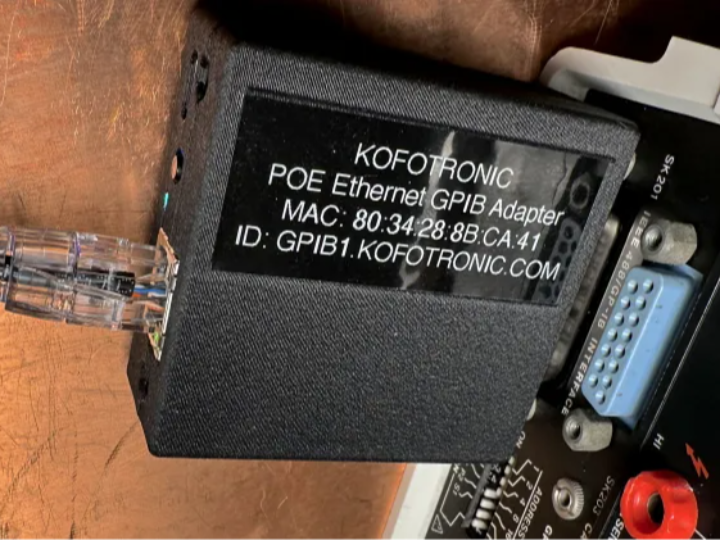

The PoE Ethernet GPIB Adapter bridges the gap between legacy test equipment and modern network infrastructure. Using the Wiznet W5500 Ethernet controller, this open-source project transforms traditional GPIB/IEEE-488 instruments into network-accessible devices at a fraction of the cost of commercial solutions.

🎯 The Challenge

Laboratory and industrial test equipment often uses GPIB (General Purpose Interface Bus) for automation and control. However, GPIB presents several challenges:

• Bulky, expensive cables that limit equipment placement
• Limited cable length (typically 20 meters maximum)
• Single computer control without network sharing
• Commercial adapters cost $500+ per instrument

💡 The W5500 Solution

This adapter leverages the Wiznet W5500's capabilities to create an affordable, reliable Ethernet-to-GPIB bridge:

Key Features:

• Hardware TCP/IP Stack: W5500 handles all network protocols, freeing the ATmega4809 for GPIB management
• Dual Power Options: Power over Ethernet (802.3af) or USB-C for maximum flexibility
• Multiple Protocol Support: Choose between VXI-11.2 (VISA compatible) or Prologix protocols
• Web Interface: Built-in web server on port 80 for configuration and basic instrument control
• Cost-Effective: Total BOM under $50 - one-tenth the price of commercial alternatives

🔧 Technical Implementation

Hardware Architecture:
The ATmega4809 microcontroller manages the GPIB bus interface while communicating with the W5500 via SPI. This separation of concerns allows:

• Reliable GPIB timing and handshaking
• Simultaneous network communication
• Support for up to 30 GPIB instruments (bus limitation)
• Network discovery via UDP broadcast

Software Features:

• VXI-11.2 Mode: Full VISA compatibility for seamless integration with existing test software
• Prologix Mode: Simple ASCII protocol for basic instrument control
• Serial Console: USB-based configuration and debugging interface
• DHCP/Static IP: Flexible network configuration options

📋 Use Cases

Laboratory Automation:

• Connect multiple instruments to a central network
• Enable remote access to expensive test equipment
• Share instruments between multiple workstations

Industrial Testing:

• Integrate legacy equipment into modern production lines
• Enable remote monitoring and control
• Reduce cabling complexity in test fixtures

Education & Research:

• Make lab equipment accessible to remote students
• Create virtual instrument pools
• Preserve vintage equipment functionality

🚀 Getting Started

1. Assemble the Hardware: PCB design files and assembly instructions available on GitHub
2. Flash the Firmware: Use PlatformIO to compile and upload the code
3. Connect Your Instrument: Standard GPIB cable to your test equipment
4. Network Configuration: Access via serial console or DHCP assignment
5. Start Testing: Use VISA strings like TCPIP::192.168.1.100::gpib,5::INSTR

📊 Performance Specifications

• Network Interface: 10/100 Mbps Ethernet via W5500
• GPIB Speed: Up to 1 MB/s (hardware dependent)
• Latency: < 5ms typical network response
• Power Consumption: < 2W (PoE) or 500mA @ 5V (USB-C)
• Temperature Range: 0-70°C operating

🔍 W5500 Advantages in This Application

The Wiznet W5500 proves ideal for this project because:

• Offloads TCP/IP Processing: The ATmega4809 can focus entirely on GPIB protocol handling
• Multiple Socket Support: Enables web server alongside instrument communication
• SPI Interface: Simple 4-wire connection leaves GPIO pins for GPIB control
• Proven Reliability: Hardware TCP/IP stack eliminates software TCP/IP bugs
• Low Power: Compatible with PoE power budgets

✅ Project Impact

This open-source design democratizes test equipment connectivity. By reducing the adapter cost from $500to$50, it enables:

• Small labs to network their equipment
• Hobbyists to automate measurements
• Educational institutions to modernize legacy instruments
• Industry to extend equipment lifespan

🛠️ Future Enhancements

• mDNS support for easier discovery
• Enhanced web interface with graphing capabilities
• Support for GPIB analyzers and bus monitoring
• Integration with cloud-based test platforms

Join the community on EEVBlog forums or contribute to the GitHub repository to help modernize test equipment worldwide!
