Overview

In today's interconnected world, single-board computers often need multiple network interfaces for advanced applications such as network segmentation, firewall implementation, or redundant connectivity. This project transforms the Secure Pi SP2302 into a powerful dual-Ethernet platform using WIZnet's WIZ850io module, opening new possibilities for industrial IoT and secure networking applications.

🎯 Why Dual Ethernet Matters

Traditional single-board computers typically come with only one Ethernet port, limiting their use in:

• Network Isolation: Separating trusted internal networks from untrusted external connections
• Gateway Applications: Acting as a bridge between different network segments
• Redundancy: Maintaining connectivity even if one network fails
• Load Balancing: Distributing network traffic across multiple interfaces
• Industrial Control: Connecting to both control and monitoring networks simultaneously

🔧 Hardware Implementation

The WIZ850io module, powered by the W5500 chip, provides a complete hardware TCP/IP stack with SPI interface. This approach offers several advantages:

Key Connections:

• SPI Communication: MISO, MOSI, SCLK, and CS pins for high-speed data transfer
• Control Signals: Reset and interrupt pins for reliable operation
• Power: 3.3V supply shared with SP2302 for simplified power management

The beauty of this solution lies in its simplicity - just 8 wires connect the two boards, yet provide full Ethernet functionality without burdening the main processor.

💻 Software Architecture

Our custom dual-port firmware seamlessly integrates the W5500 into the Linux ecosystem:

1. Driver Integration

• Native SPI driver support for W5500
• Automatic device recognition as eth1
• Full integration with Linux networking stack

2. Network Management

• Netplan configuration for modern network setup
• Support for both DHCP and static IP configurations
• Independent operation of both interfaces

3. System Integration

• Udev rules for consistent device naming
• Automatic initialization on boot
• Compatible with standard Linux networking tools

📋 Step-by-Step Implementation

Phase 1: Hardware Setup
Connect the WIZ850io to your SP2302 following the pin mapping table. Ensure solid connections and proper grounding to avoid communication issues.

Phase 2: Firmware Installation
Flash the provided dual-Ethernet firmware image to enable W5500 support. This custom firmware includes all necessary drivers and configurations.

Phase 3: Network Configuration
Use netplan to configure your network settings. The system supports various configurations:

• Dual DHCP for automatic setup
• Mixed DHCP/Static for specific requirements
• VLAN support for advanced networking

Phase 4: Verification

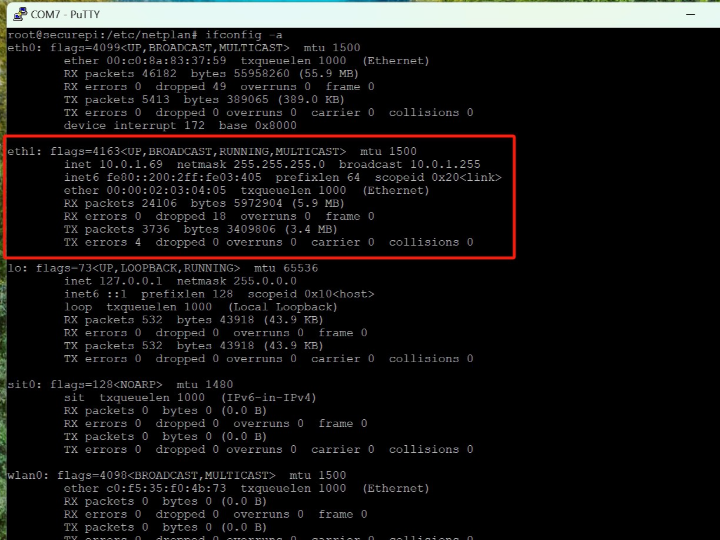

Test both interfaces independently using standard Linux tools like ping, ifconfig, and ip commands.

🚀 Real-World Applications

Industrial IoT Gateway

• Connect to both operational technology (OT) and information technology (IT) networks
• Maintain security isolation while enabling data flow

Network Security Appliance

• Build custom firewalls or intrusion detection systems
• Monitor traffic between network segments

Edge Computing Platform

• Process data from isolated sensor networks
• Forward filtered results to cloud services

Development and Testing

• Create network testing environments
• Simulate complex network topologies

🔍 Troubleshooting Tips

Common Issues and Solutions:

1. W5500 Not Detected: Check SPI connections and ensure proper power supply
2. No IP Address on eth1: Verify netplan configuration and DHCP server availability
3. Intermittent Connection: Review power stability and cable quality
4. Performance Issues: Optimize SPI clock speed for your application

📊 Performance Considerations

The W5500 provides:

• Up to 80 Mbps throughput
• Hardware TCP/IP offloading
• Low CPU usage for network operations
• 32KB internal buffer for efficient packet handling

✅ Summary

This project successfully demonstrates how to expand the SP2302's networking capabilities using the WIZ850io module. With minimal hardware modifications and our custom firmware, you can transform a single-port device into a versatile dual-Ethernet platform suitable for professional applications.

Whether you're building an industrial gateway, developing network security solutions, or simply need redundant connectivity, this solution provides a reliable and cost-effective path forward. The combination of SP2302's processing power and W5500's hardware networking engine creates a powerful platform for your next IoT or networking project.

Get started today and unlock the full potential of your SP2302!
