Smart meter wifi gateway ESPHome Edition

COMPONENTS

PROJECT DESCRIPTION

Overview

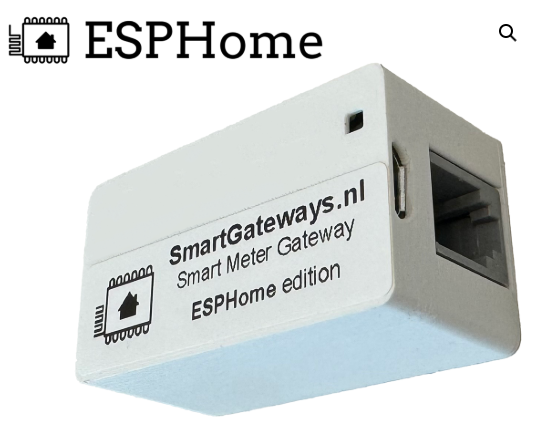

Smart Meter Gateway ESPHome Edition is a smart meter gateway developed by Smart Gateways.

It is designed to connect a smart meter’s P1 port to Home Assistant using ESPHome. The gateway allows users to monitor smart meter data such as electricity consumption, solar production, current, voltage, gas usage, and water usage where supported.

In this version, the product uses Seeed Studio’s W5500 Ethernet Adapter, which includes the WIZnet W5500 Ethernet controller. This allows the gateway to communicate through stable wired Ethernet instead of depending only on Wi-Fi.

The result is a local, wired, Home Assistant-compatible energy monitoring gateway.

Background

Smart meters provide valuable energy data through the P1 port.

This data can include:

Real-time electricity consumption
Solar power production
Current per phase
Voltage per phase
Total energy usage
Total energy return
Gas meter data
Water meter data, where supported

Many users want to bring this data into Home Assistant for visualization, logging, and automation.

Wi-Fi can be convenient, but a smart meter is often installed inside a meter cabinet, utility room, or electrical distribution area. In these locations, wireless signal quality may be poor or unstable.

For energy monitoring, stable communication is important because the gateway needs to send frequent meter data updates to Home Assistant.

This is why using W5500 Ethernet is useful.

Solution

The Smart Meter Gateway ESPHome Edition reads data from the smart meter’s P1 port and sends it to Home Assistant through wired Ethernet.

The basic architecture can be described as follows:

Smart Meter
   |
   | P1 Port
   |
Smart Meter Gateway ESPHome Edition
   |
   | Seeed Studio W5500 Ethernet Adapter
   | WIZnet W5500
   |
Ethernet Network
   |
Home Assistant
   |
Energy Dashboard / Automation / Monitoring

The gateway reads meter data locally.

ESPHome exposes the data to Home Assistant.

W5500 provides the wired Ethernet connection, making the system more reliable for fixed home energy monitoring installations.

Why W5500?

W5500 is a hardwired TCP/IP Ethernet controller from WIZnet.

It is suitable for this smart meter gateway because it provides reliable wired Ethernet through a simple embedded interface.

1. Stable Wired Network

Smart meter data is often used for real-time energy monitoring.

A wired Ethernet connection helps reduce communication issues caused by weak Wi-Fi signal, interference, or distance from the router.

This is especially useful when the gateway is installed inside a meter cabinet.

2. Reliable Local Home Assistant Integration

The product is designed for Home Assistant and ESPHome.

Home Assistant works best when devices remain consistently available on the local network.

By using W5500 Ethernet, the gateway can maintain a stable local connection for energy dashboards and automation rules.

3. Suitable for Always-On Monitoring

A smart meter gateway normally operates 24/7.

W5500 is a good fit for always-on embedded monitoring devices because it provides a dedicated Ethernet controller for wired network communication.

4. Seeed Studio Ethernet Hardware

This product uses Seeed Studio’s W5500 Ethernet Adapter.

Seeed Studio’s XIAO W5500 Ethernet Adapter includes an onboard W5500 Ethernet chip and RJ45 connector for wired network access. Seeed also describes the adapter as supporting ESPHome and Home Assistant use cases.

Main Features

1. Smart Meter P1 Data Reading

The gateway connects to the smart meter’s P1 port.

Through this port, the device can read meter data and send it to Home Assistant.

This allows users to monitor energy usage and production directly from their smart meter.

2. ESPHome Firmware

The product uses ESPHome.

ESPHome is widely used with Home Assistant because it allows ESP-based devices to expose sensors directly to Home Assistant.

For users, this means the gateway can be integrated into Home Assistant without needing a separate cloud service.

3. Home Assistant Energy Dashboard

Once added to Home Assistant, the smart meter values can be used in the Energy Dashboard.

This helps users visualize:

Electricity usage
Solar production
Energy returned to the grid
Gas consumption
Water consumption, where supported

This makes the gateway useful for understanding energy behavior and reducing unnecessary consumption.

4. Local Data Operation

The product page describes the ESPHome Edition as working locally with Home Assistant, without cloud dependency.

This is important for smart meter data because energy usage information is sensitive and should preferably remain inside the local network.

5. W5500 Ethernet Connectivity

The key WIZnet point is the use of W5500 Ethernet.

Instead of relying on Wi-Fi, the gateway can use wired Ethernet for stable communication with Home Assistant.

This makes the product stronger for fixed installations, meter cabinets, utility rooms, and places where wireless coverage is weak.

System Architecture

A complete system can be described as follows:

Meter Cabinet
---------------------------------
Smart Meter
P1 Port
Smart Meter Gateway ESPHome Edition

Network Side
---------------------------------
Seeed Studio W5500 Ethernet Adapter
Ethernet Switch / Router
Home Assistant Server

Application Side
---------------------------------
Energy Dashboard
Automation Rules
Data Logging
Local Monitoring

The smart meter provides the raw energy data.

The gateway reads the data and converts it into Home Assistant sensor values.

The W5500 Ethernet interface provides the reliable wired network path.

Benefits

Using W5500 in this smart meter gateway provides several benefits.

Network Benefits

Stable wired Ethernet communication
Less dependency on Wi-Fi signal quality
Better reliability for fixed installation
Suitable for meter cabinets and utility rooms
Consistent Home Assistant availability

User Benefits

Local energy monitoring
Home Assistant Energy Dashboard support
No cloud dependency
Real-time smart meter data
Solar production monitoring
Gas and water data support where available

System Benefits

ESPHome-based integration
Simple local network architecture
Suitable for 24/7 operation
Expandable smart home monitoring structure
Good reference design for Ethernet-based smart meter gateways

Applications

This architecture can be used in many smart home and energy monitoring applications, including:

Smart meter monitoring
Home electricity monitoring
Solar production tracking
Gas usage monitoring
Water usage monitoring
Home Assistant Energy Dashboard
Local energy automation
Meter cabinet gateway systems
Smart home energy optimization
Ethernet-based home monitoring devices

The same concept can also be extended to building energy monitoring or small business energy monitoring systems.

WIZnet Maker Angle

For WIZnet Maker, this product is a good example of using W5500 Ethernet in a smart home energy monitoring gateway.

The important points are:

The product is a smart meter gateway for Home Assistant.
It reads data from the smart meter P1 port.
It uses ESPHome for Home Assistant integration.
It uses Seeed Studio’s W5500 Ethernet Adapter.
The adapter includes WIZnet W5500.
W5500 provides stable wired Ethernet connectivity.
The system is suitable for local, always-on energy monitoring.

Conclusion

Smart Meter Gateway ESPHome Edition is a practical energy monitoring gateway for Home Assistant users.

By reading smart meter data from the P1 port and exposing it through ESPHome, the gateway allows users to monitor electricity consumption, solar production, voltage, current, gas usage, and water usage where supported.

With Seeed Studio’s W5500 Ethernet Adapter, the gateway gains reliable wired Ethernet connectivity based on WIZnet W5500. This makes the system more suitable for fixed installations where Wi-Fi may be unstable, such as meter cabinets or utility rooms.

This case is a strong example of how W5500 can be used in smart home energy monitoring products that require stable local network communication.

Q1: What is this product?

A1:
It is a smart meter gateway for Home Assistant. It reads smart meter data from the P1 port and sends it to Home Assistant using ESPHome.

Q2: Which WIZnet product is used?

A2:
The product uses WIZnet W5500 through Seeed Studio’s W5500 Ethernet Adapter.

Q3: Why is W5500 useful in this gateway?

A3:
W5500 provides stable wired Ethernet connectivity. This is useful because smart meters are often installed in meter cabinets where Wi-Fi signal can be weak or unstable.

Q4: What platform does it work with?

A4:
The ESPHome Edition is designed for Home Assistant.

Q5: What data can be monitored?

A5:
The gateway can monitor electricity consumption, solar production, current, voltage, total consumption, total production, gas data, and water data where supported.

Q6: Does the system require cloud?

A6:
No. The product is designed for local Home Assistant integration, so smart meter data can remain inside the local network.
