Overview

As IoT systems demand more reliable and stable connectivity, Ethernet-based solutions are increasingly being adopted over traditional wireless approaches.

The Dreamhiking ETH01-EVO ESP32-C3 development board is designed to meet these requirements by combining an ESP32-C3 MCU with the WIZnet W5500 Ethernet controller, along with optional Power over Ethernet (PoE) support.

This compact platform enables developers to build IoT and embedded systems that require stable wired communication, simplified deployment, and scalable network integration.

Background

Many IoT devices rely on Wi-Fi for connectivity due to its convenience. However, in real-world environments, Wi-Fi can present several limitations:

• Interference in the 2.4GHz band
• Unstable connections in dense deployments
• Shared radio usage with Bluetooth

For applications requiring continuous operation and reliable data transmission, these limitations can impact overall system performance.

As a result, there is growing demand for solutions that provide stable Ethernet connectivity while maintaining the flexibility of embedded systems.

Solution

The Dreamhiking ETH01-EVO addresses these challenges by integrating the W5500 Ethernet controller with the ESP32-C3 MCU.

In this architecture:

• The ESP32-C3 handles application logic, wireless features, and control functions
• The W5500 provides hardware-based TCP/IP processing and Ethernet connectivity
• Optional PoE enables both power and data delivery through a single cable

This combination allows the device to operate as a reliable Ethernet-enabled node within IoT and industrial systems.

System Architecture

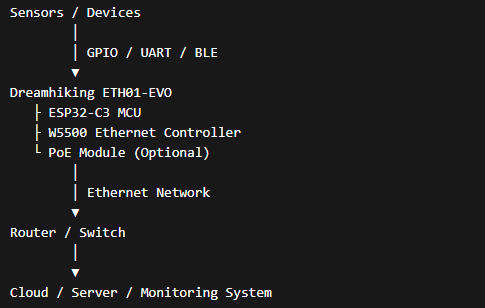

The board acts as a bridge between field devices and network infrastructure, enabling seamless data transmission to centralized systems.

Key Technologies

W5500 Ethernet Controller

The W5500 is a hardwired TCP/IP embedded Ethernet controller that enables stable and efficient network communication.

Key features include:

• Hardware TCP/IP stack offload
• SPI interface for easy integration
• Reliable wired Ethernet connectivity
• Reduced MCU workload

This allows the ESP32-C3 to focus on application-level tasks while maintaining robust network performance.

Power over Ethernet (PoE)

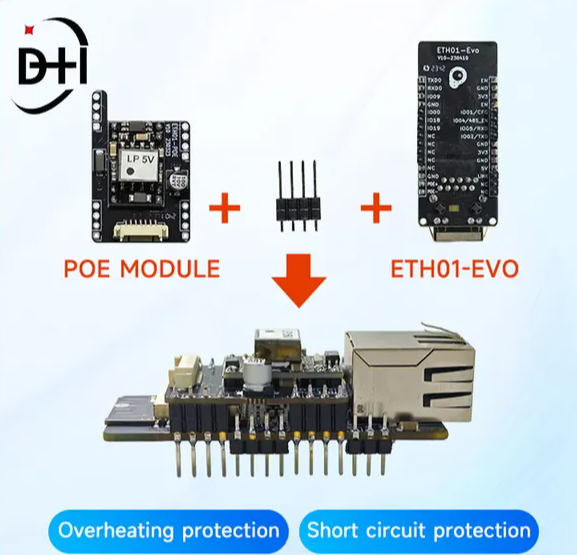

The ETH01-EVO supports optional PoE functionality, providing:

• Single-cable power and data delivery
• Simplified installation
• Reduced wiring complexity
• Flexible deployment

This is particularly beneficial in industrial and distributed IoT environments.

Benefits

By combining the Dreamhiking ETH01-EVO with W5500 Ethernet connectivity, developers can achieve:

• Stable and reliable wired communication
• Reduced wireless interference issues
• Simplified installation using PoE
• Flexible system design with hybrid connectivity
• Scalable IoT deployment in various environments

Conclusion

The Dreamhiking ETH01-EVO ESP32-C3 demonstrates how embedded systems can benefit from integrating Ethernet technology into modern IoT designs.

By leveraging WIZnet’s W5500 Ethernet controller and optional PoE support, the platform provides a reliable and scalable solution for applications requiring continuous connectivity and robust network performance.

This approach highlights the growing importance of Ethernet in next-generation IoT and industrial systems.
